- Rugged Cast-Iron Housing: Provides maximum strength and dependability.
- High lead angle worm is case hardened, ground and polished.
- Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
- Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.
325ULR10

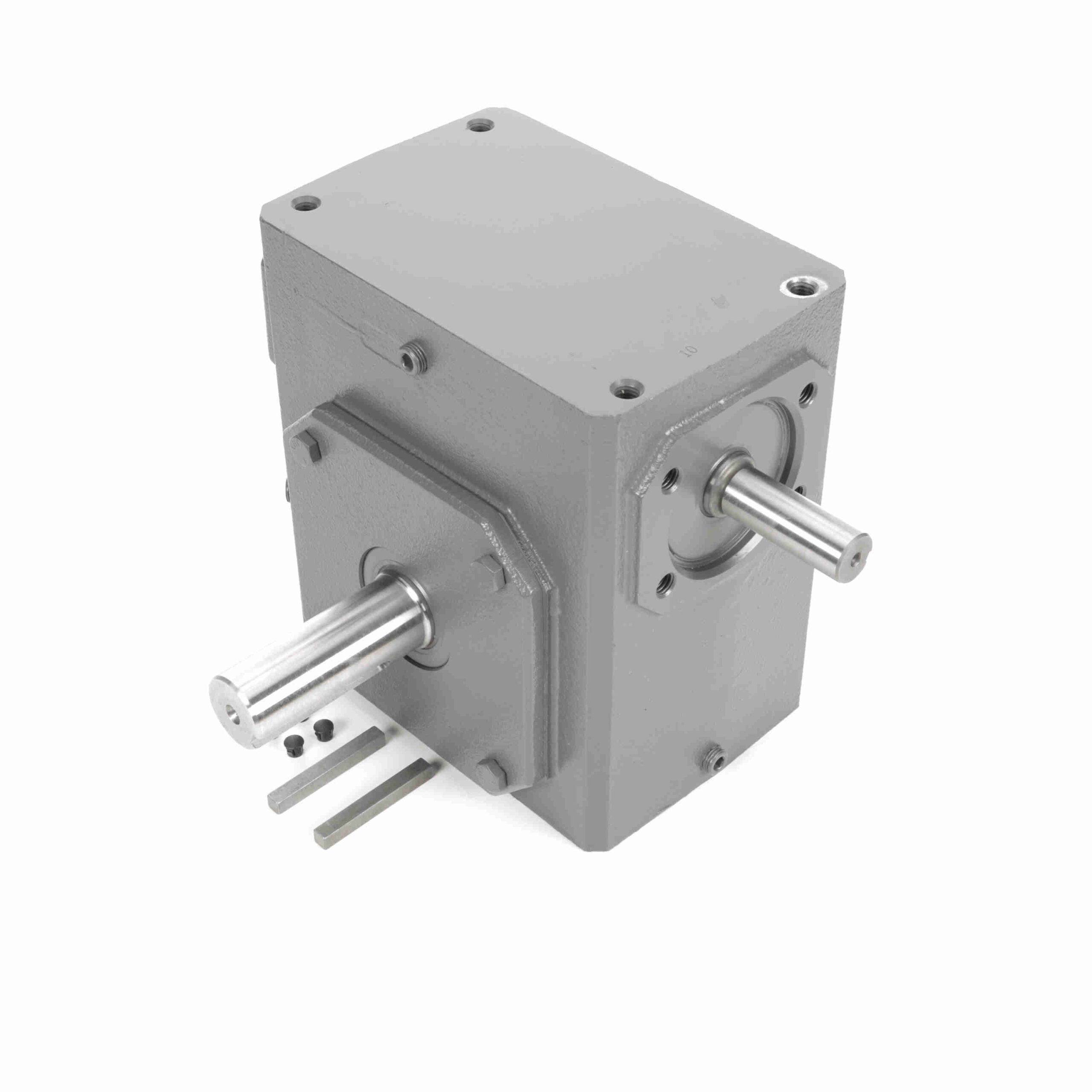

Morse Raider Plus Worm Gear Reducer Cast Iron Single-Reduction Worm Reducer – 325ULR10
$2,777.51
Out of stock
Out of stock
| Ratio: | 10:1 | Key Sq.: | 0.188 |
|---|---|---|---|
| Shaft Seal Material: | Nitrile | Key Length: | 1.63 |
| Input Speed: | 1750 | Thrust Rating - output shaft: | 2964 |
| Efficiency: | 80 | Reducer Style: | Standard |
| Input Diameter (in): | 0.875 in | Ratio Range: | 10:1 |
| Mounting Style: | No Base | Service Factor: | 1 |
| Input HP @ 1750 RPM: | 7.23 | Output Key: | 5/16 X 2.88 |
| Input RPM: | 1, 750 | Output Shaft Orientation: | LR |
| Output Shaft Assembly Code: | D | Output RPM: | 175 |
| Assembly: | U-LR | Gear Type: | Worm |
| No. of Gear Reductions: | Single | Reducer: | Worm - Right Angle |
| Output Diameter (in): | 1.375 in | Product Type: | Worm Speed Reducer |
| Series Code: | Raider | Input Keyway: | 3/16 X 1.63 in |
| Center Distance (in): | 3.25 | Model Code: | 325U |
| Input Style: | Solid Shaft | Output Shaft Direction: | Double |
| Output Shaft: | Solid Shaft | Housing Material: | Cast Iron |
| Overhung Load Rating (Output Shaft(lb)): | 2, 401 lb | Output Torque Rating (in-lb): | 2700 in-lbs @1750 input RPM in/lbs |
| UPC: | 6, 62288E+11 | Weight: | 71.00 LB |
