- Sealmaster® wide outer ring bearing insert for use in Sealmaster machined housings only
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
2-17

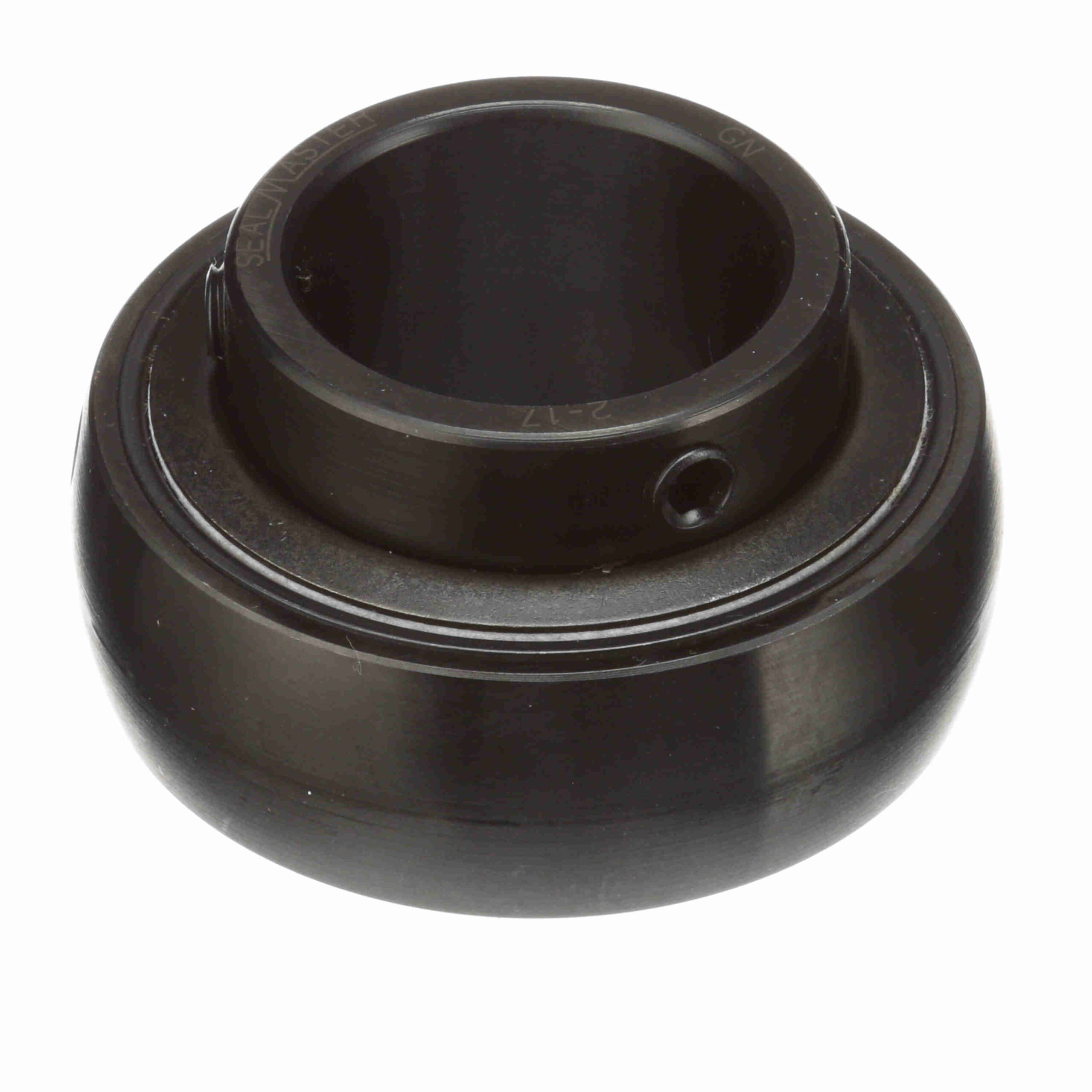

Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – 2-17
$136.99
Availability: 48 in stock
Availability: 48 in stock
| Radius: | 0.04 | Inner-Race Heat-Treat Method: | Zone-Hardened |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Duty Series: | Standard |
| Retainer Type: | Land Riding Retainer | Set Screw Thread: | 5/16-24 |
| Insert Material: | 52100 Bearing Steel; Black Oxided | Seal Type: | Felt Labyrinth Seal |
| Measure Units: | Inch | Housing Type: | Insert Only |
| Bore Shape: | Straight | Maximum Operating Temperature: | 220 °F |
| Relubricatable: | Yes | Speed (Max): | 4650 |
| Misalignment: | ±2.0° Misalignment - Static Only | Locking Type: | Setscrew |
| Internal Clearance: | Standard | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Lubrication: | Lithium Complex NLGI 2 Grease | Expansion: | No |
| End Cap: | No | Misalignment Type: | Static Only |
| Outer Ring Land Profile: | Standard | Bearing Insert Coating: | Black Oxide Coated |
| Platform: | Gold Line Ball Bearing | Radial Static Load Capacity (lb): | 3, 493 |
| Precision Rating: | ABEC 1 | Cage Material: | PPS |
| Inner Race Profile: | Wide Inner Ring | Outer Race Profile: | Spherical |
| UPC: | 662461000229 | Weight: | 1.14 LB |
| Packaged Length: | 3.13 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 3.13 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
