- ER style cylindrical OD bearing with snap and with black oxided bearing rings
- Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
- Felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.

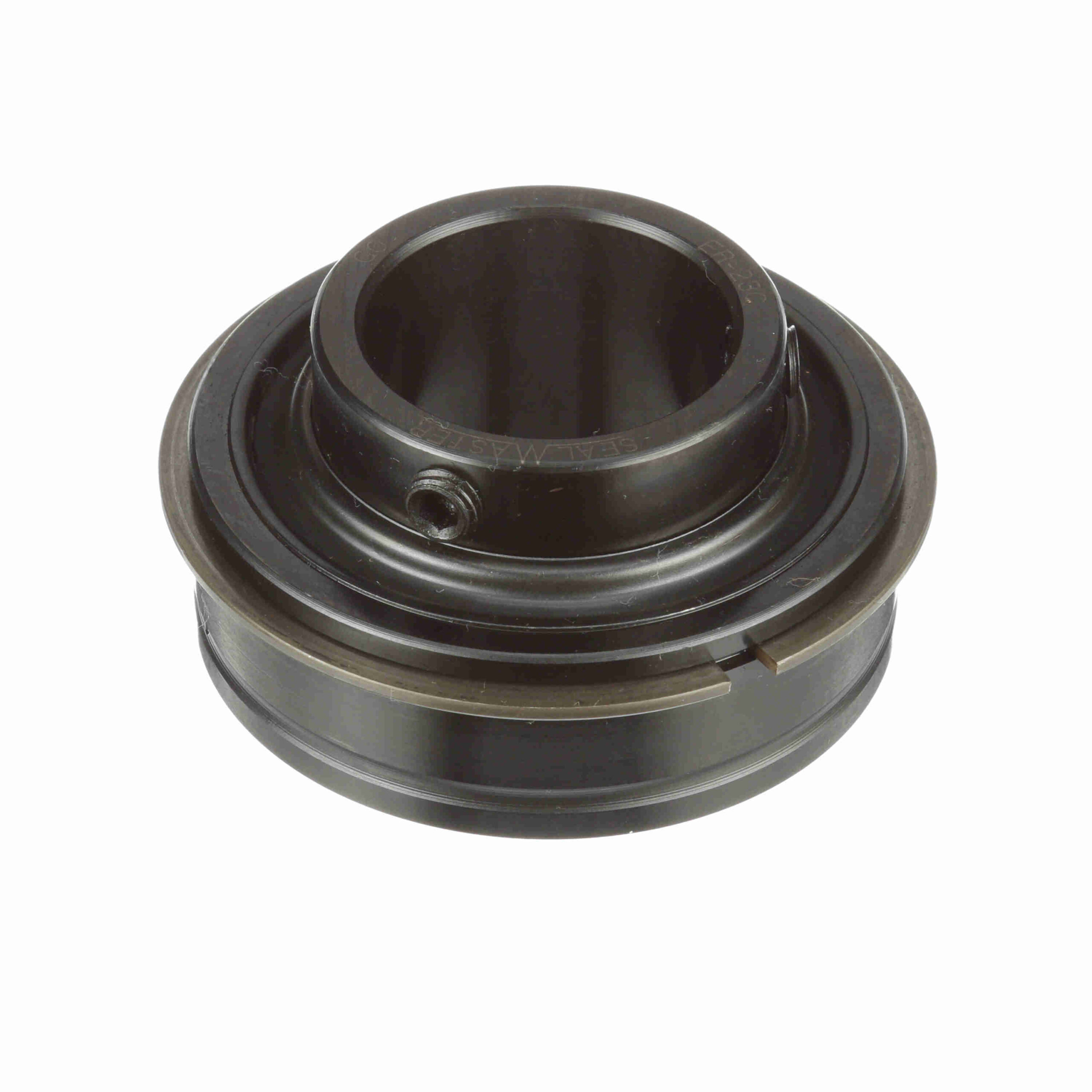

ER-20 3C
Sealmaster Mounted Insert Only Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – ER-20 3C
Out of stock
| Bore Shape: | Straight | Maximum Operating Temperature: | 220 °F |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided | Retainer Type: | Land Riding Retainer |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Seal Type: | Triple Lip Contact Seal |
| Radius: | 0.04 | Duty Series: | Standard |
| Measure Units: | Inch | Rolling Element: | Ball Bearing |
| Housing Type: | Insert (ER Style) | Expansion: | No |
| Lubrication: | Lithium Complex NLGI 2 Grease | Internal Clearance: | Standard |
| Relubricatable: | Yes | Speed (Max): | 450 |
| Locking Type: | Setscrew | Misalignment: | None |
| Radial Dynamic Load Capacity (lb): | 5, 782 | Platform: | Gold Line Ball Bearing |
| Misalignment Type: | Static Only | Outer Ring Land Profile: | Tapered Lands |
| Bearing Insert Coating: | Black Oxide Coated | End Cap: | No |
| UPC: | 662461047019 | Weight: | 1.85 LB |
| Packaged Length: | 3.13 Inches | Packaged Width: | 1.75 Inches |
| Packaged Height: | 3.13 Inches | HTC: | 8482.10.5052 |
| Country of Origin: | Mexico |
