- Lifetime Warranty – If this bushing ever fails Browning will replace it Free of charge.
- Solid Flange, Double Split Barrel – Assures better concentricity to the shaft.
- Key to Key Drive – With keys on both the shaft and product to provide the strongest possible drive.
- 3/4″ per Foot Taper on Barrel – Self locking taper provides the highest degree of mechanical locking product to product.
R2 50 MM

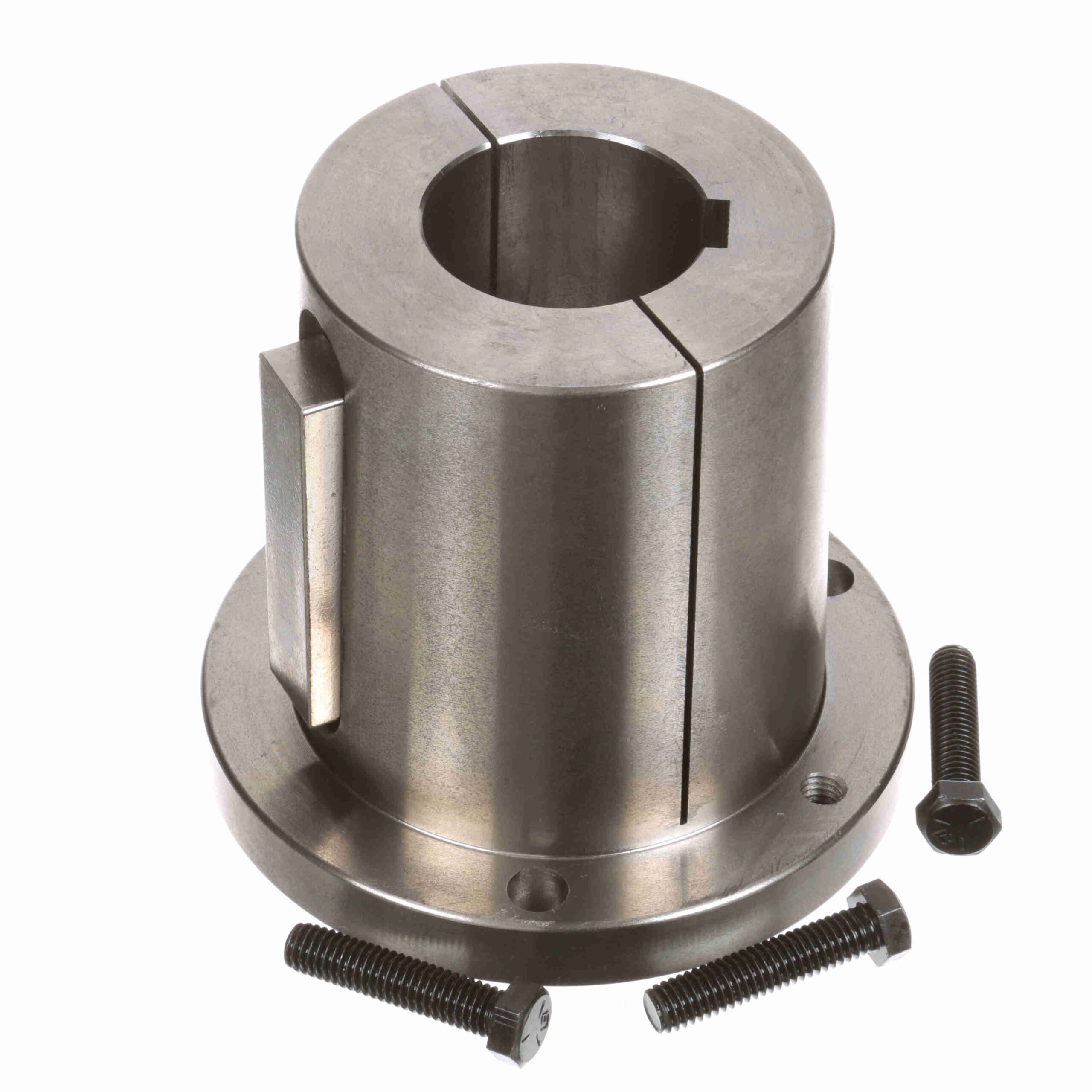

Browning Split Taper Bushing – Metric Bore Type – R2 50 MM
Out of stock
| Total Length (mm): | 123.825 mm | Product Type: | Split Taper Bushing |
|---|---|---|---|
| Compatible Bore Size [Max] (mm): | 50 mm | Total Length (in): | 4.875 in |
| Model Name: | R1-R2_Type1_BushingMaster | Wrench Torque (in-lb): | 348 |
| Cap Screws (Size): | 3/8 x 1 3/4 | Bore Size (mm): | 50 mm |
| Outside Diameter (in): | 5.375 in | Keyseat (mm): | 14 x 4.5 mm |
| Length Through Bore (mm): | 123.825 mm | Outside Diameter (mm): | 136.525 mm |
| Bushing Type: | R2 | Material: | Sintered Steel or Ductile Iron |
| Cap Screws (No.): | 3 | Bore Type: | Metric |
| Screw Length: | 1.75 | Thread Size: | 3/8-16 |
| Bolt Circle Diameter (in): | 4.625 | Flange Type: | Solid Flange |
| Flange Thickness: | 0.625 | Includes: | Set Screw, Cap Screws and Ext. Key |
| Barrel Diameter (Small End): | 3.75 | Mounting Type: | Conventional |
| Barrel Diameter (Large End): | 4 | UPC: | 662289392018 |
| Weight: | 12.97 LB | Packaged Length: | 6.2 Inches |
| Packaged Width: | 6.2 Inches | Packaged Height: | 4.9 Inches |
| HTC: | 8483.90.8080 | Country of Origin: | Mexico |
