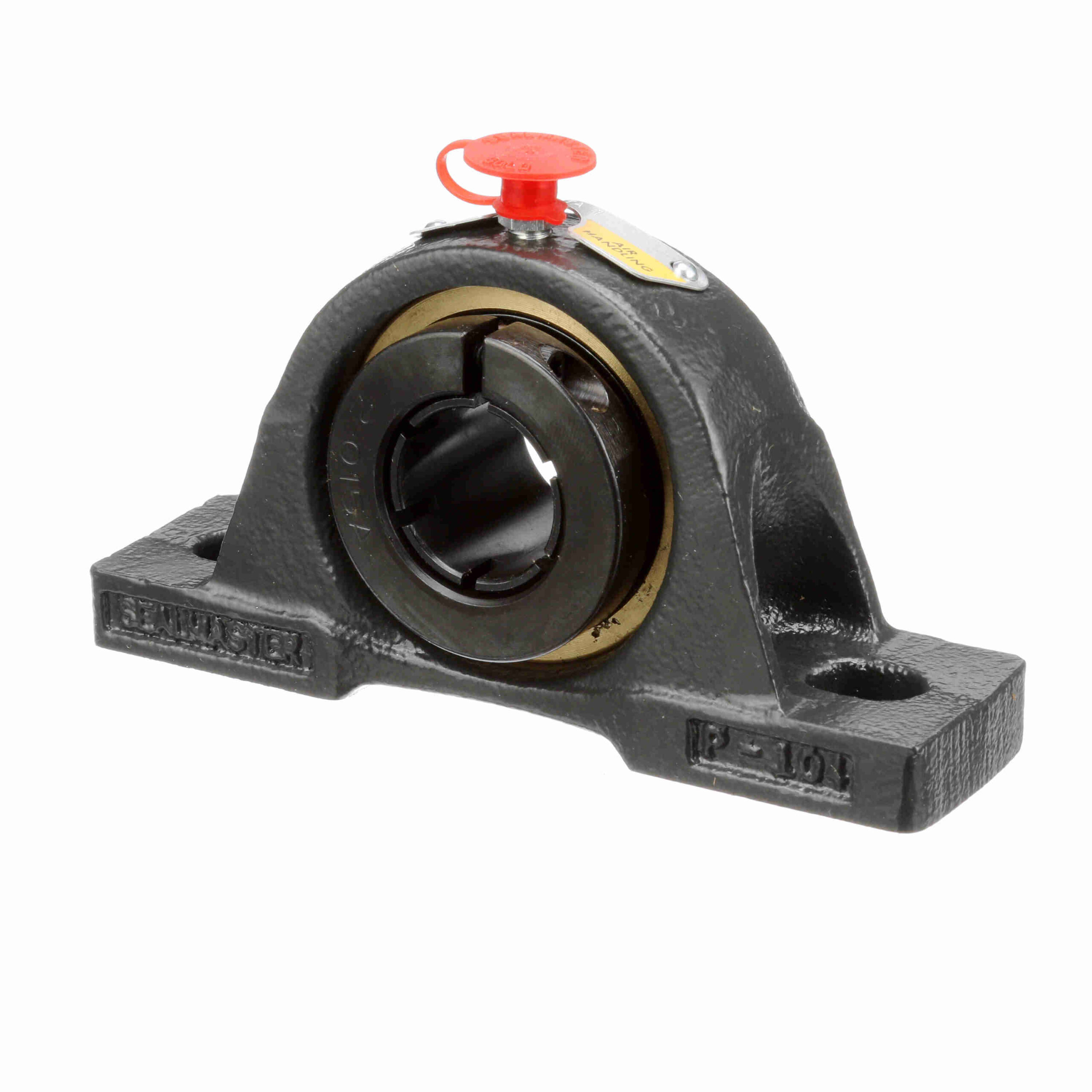

ENP-16T XLO

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Skwezloc® concentric locking for near perfect concentricity
Extra low drag seal cut down felt labyrinth seal and flinger
Nylon retainer to reduce overall drag
Oil lubricated and supplied with an adapter and plug for easy field relubrication
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Looser than standard housing fit for ease of alignment on lightweight frames

Internal Clearance:	Standard	Housing Base:	Solid
Rolling Element:	Ball Bearing	Measure Units:	Inch
Seal Type:	Labryinth Seal	Insert Material:	52100 Bearing Steel, Black Oxided
Misalignment:	±2.0° Misalignment - Static Only	Housing Construction:	One Piece
Bore Shape:	Straight	Bearing Insert Coating:	Black Oxide Coated
Housing Color:	Gray	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	Outer Ring Land Profile:	Standard
Replaceable Insert:	Yes	Options:	Extra Low Drag
End Cap:	No	Housing Style:	Pillow Block
Maximum Speed (RPM):	2500 rpm	Housing Type:	Pillow Block, Two Bolt
Housing Material:	Cast Iron	Duty/Series:	Standard Duty
Locking Type:	Concentric	Retainer Type:	Land Riding Retainer
Fixed vs. Expansion:	Expansion	Lubrication Type:	Oil Coated Only - No Factory Grease Fill
Inner Race Heat Treat Method:	Zone-Hardened	Maximum Operating Temperature (F):	220 °F
Insert Number:	AR-2-1T	Ability to Relubricate:	Yes
UPC:	662461000000	Weight:	2.40 LB
Packaged Length:	3.5 Inches	Packaged Width:	1.69 Inches
Packaged Height:	5.75 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
