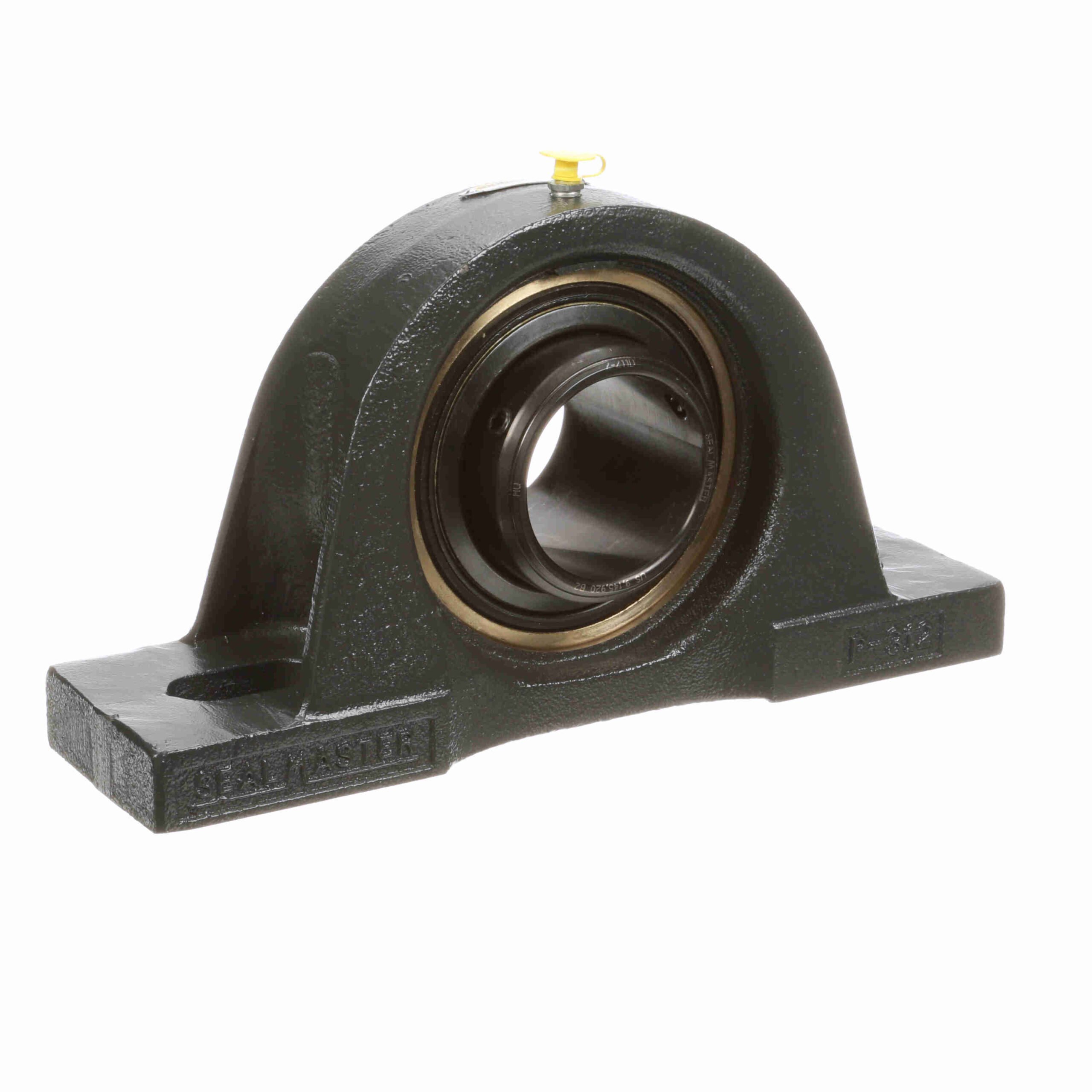

EMPD-43 CXU

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
Air Handling noise check for quiet operation
Looser than standard housing fit for ease of alignment on lightweight frames
Felt labyrinth seal and flinger for dusty and dirty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Internal Clearance:	Standard	Insert Material:	52100 Bearing Steel, Black Oxided
Measure Units:	Inch	Seal Type:	Felt Labyrinth Seal
Housing Base:	Solid	Rolling Element:	Ball Bearing
Housing Construction:	One Piece	Bore Shape:	Straight
Misalignment:	±2.0° Misalignment - Static Only	Bearing Insert Coating:	Black Oxide Coated
Platform:	Air Handling	Options:	Air Handling Housing Fit, Noise Tested
Outer Ring Land Profile:	Standard	Housing Color:	Gray
Misalignment Type:	Static Only	End Cap:	No
Replaceable Insert:	Yes	Housing Type:	Pillow Block, Two Bolt
Maximum Speed (RPM):	3600 rpm	Duty/Series:	Medium Duty
Housing Material:	Cast Iron	Housing Style:	Pillow Block
Locking Type:	Double Setscrew	Fixed vs. Expansion:	Expansion
Lubrication Type:	Lithium Complex NLGI 2 Grease	Retainer Type:	Land Riding Retainer
Inner Race Heat Treat Method:	Zone-Hardened	Insert Number:	AR-2-211D
Maximum Operating Temperature (F):	220 °F	Ability to Relubricate:	Yes
UPC:	662461000000	Weight:	29.70 LB
Packaged Length:	14.25 Inches	Packaged Width:	8.06 Inches
Packaged Height:	4 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
