- Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
EMP-47 HT

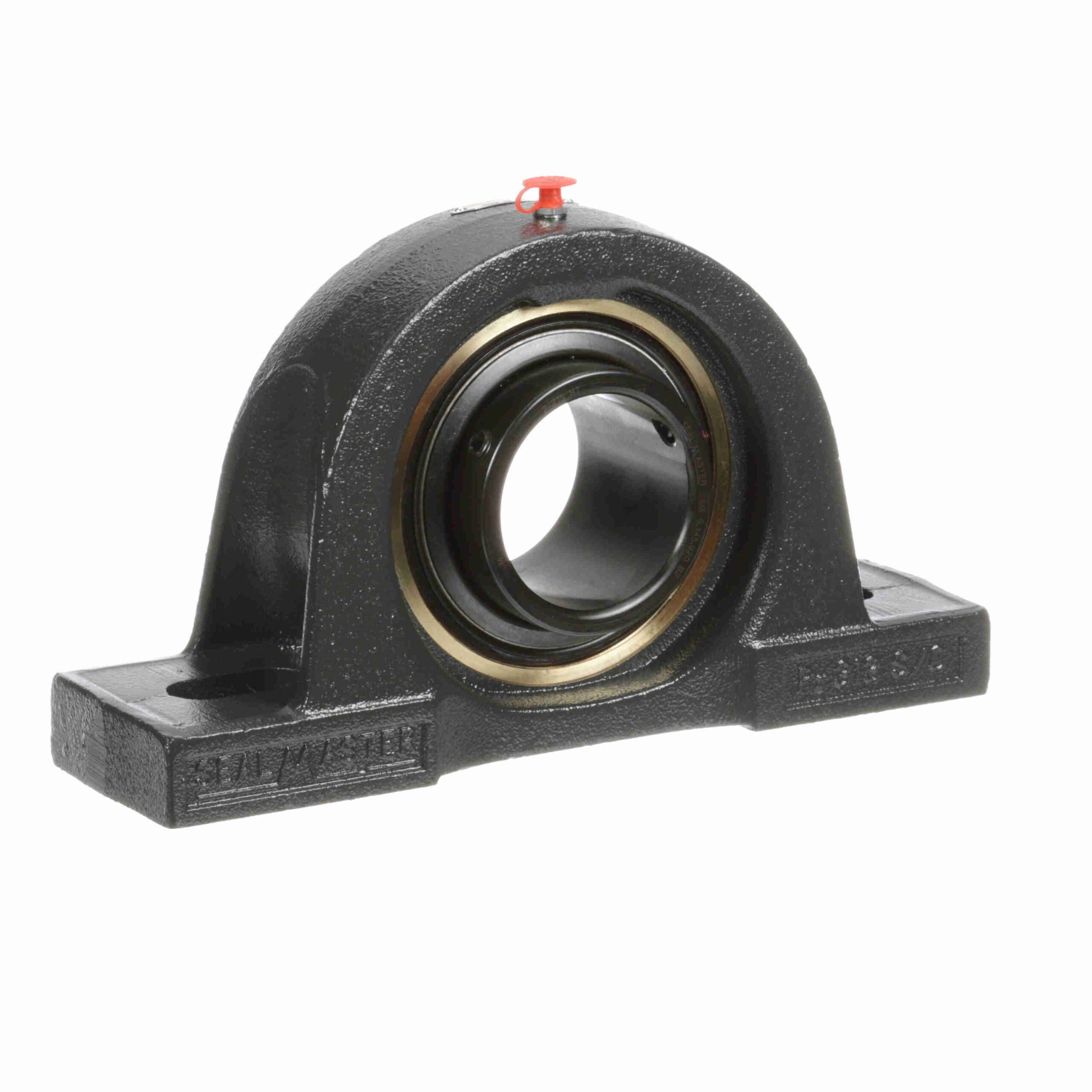

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Temperature – EMP-47 HT
$1,573.01
Out of stock
Out of stock
| Housing Type: | Pillow Block, Two Bolt | Speed (Max): | 1050 |
|---|---|---|---|
| Housing Material: | Cast Iron | Internal Clearance: | Increased |
| Rolling Element: | Ball Bearing | Duty Series: | Medium Duty |
| Insert No.: | AR-2-215 HT | Measure Units: | Inch |
| Retainer Type: | Land Riding Retainer | Maximum Operating Temperature: | 400 °F |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Seal Type: | High Temp Labyrinth |
| Expansion: | Yes | Housing Base: | Solid |
| Bore Shape: | Straight | Locking Type: | Setscrew |
| Lubrication: | Synthetic NLGI 2 High Temperature Grease | Relubricatable: | Yes |
| Misalignment: | ±2.0° Misalignment - Static Only | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Housing Construction: | One Piece | Platform: | Gold Line Ball Bearing |
| Outer Ring Land Profile: | Standard | Housing Color: | Gray |
| Bearing Insert Coating: | Black Oxide Coated | Options: | High Temperature |
| Replaceable Insert: | Yes | Misalignment Type: | Static Only |
| End Cap: | No | Operating Temperature Range: | Max. +400°F |
| UPC: | 662461329733 | Weight: | 30.70 LB |
| Packaged Length: | 14.25 Inches | Packaged Width: | 8.06 Inches |
| Packaged Height: | 4 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
