- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
- High temperature felt labyrinth seal and flinger for dry and dusty environment
- Increased internal clearance and high temperature grease
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
NP-39 HT

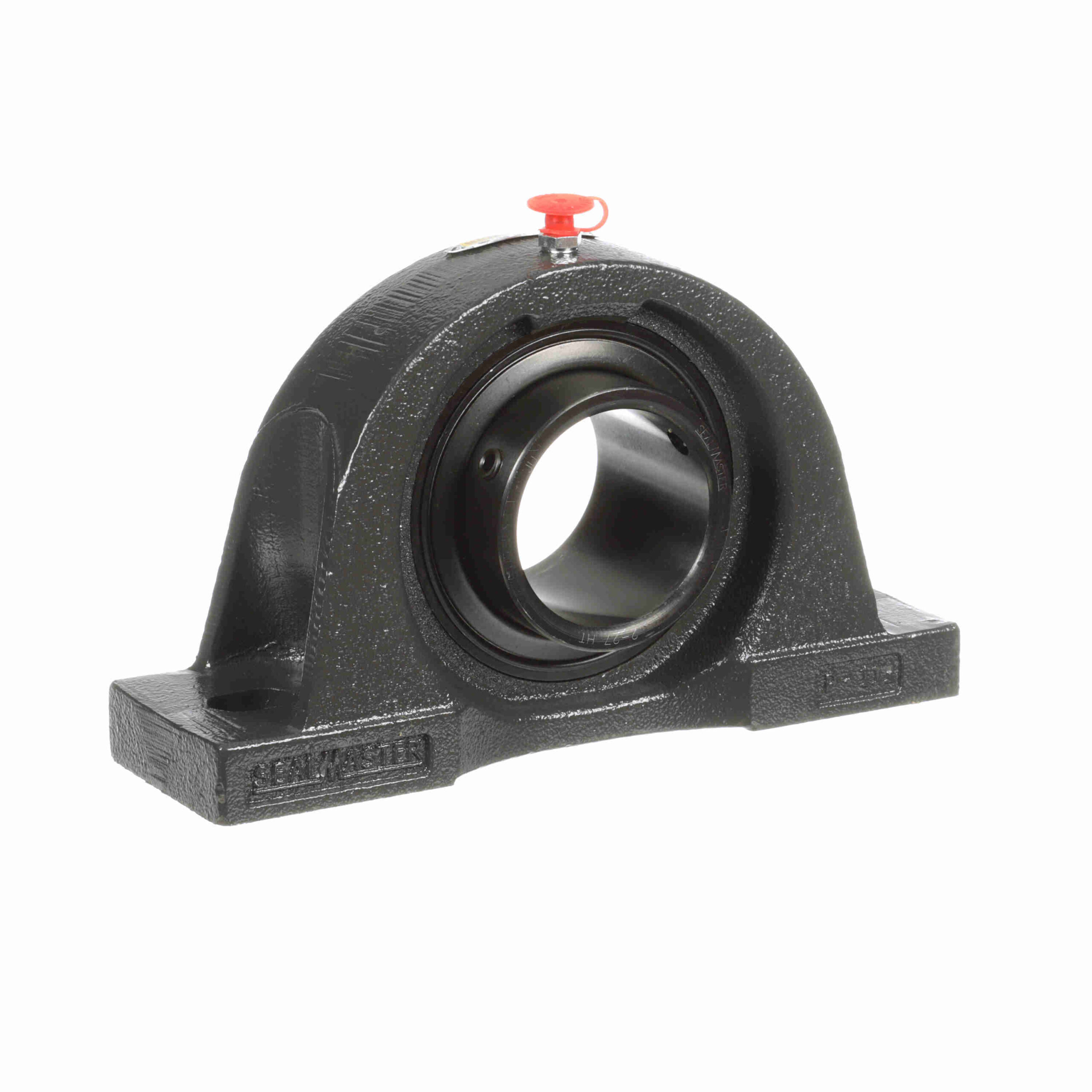

Sealmaster Mounted Cast Iron Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Black Oxided – Setscrew Lock – High Temperature – NP-39 HT
$531.48
Out of stock
Out of stock
| Duty Series: | Standard Duty | Internal Clearance: | Increased |
|---|---|---|---|
| Housing Type: | Pillow Block, Two Bolt | Housing Material: | Cast Iron |
| Expansion: | No | Maximum Operating Temperature: | 400 °F |
| Insert No.: | 2-27 HT | Housing Base: | Solid |
| Rolling Element: | Ball Bearing | Seal Type: | High Temp Labyrinth |
| Insert Material: | 52100 Bearing Steel, Black Oxided | Measure Units: | Inch |
| Retainer Type: | Land Riding Retainer | Speed (Max): | 1250 |
| Bore Shape: | Straight | Locking Type: | Setscrew |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Relubricatable: | Yes | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Lubrication: | Synthetic NLGI 2 High Temperature Grease | Housing Color: | Gray |
| Options: | High Temperature | Outer Ring Land Profile: | Standard |
| End Cap: | No | Replaceable Insert: | Yes |
| Platform: | Gold Line Ball Bearing | Bearing Insert Coating: | Black Oxide Coated |
| Misalignment Type: | Static Only | Operating Temperature Range: | Max. +400°F |
| UPC: | 662461314463 | Weight: | 13.70 LB |
| Packaged Length: | 10.38 Inches | Packaged Width: | 6.5 Inches |
| Packaged Height: | 3 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
