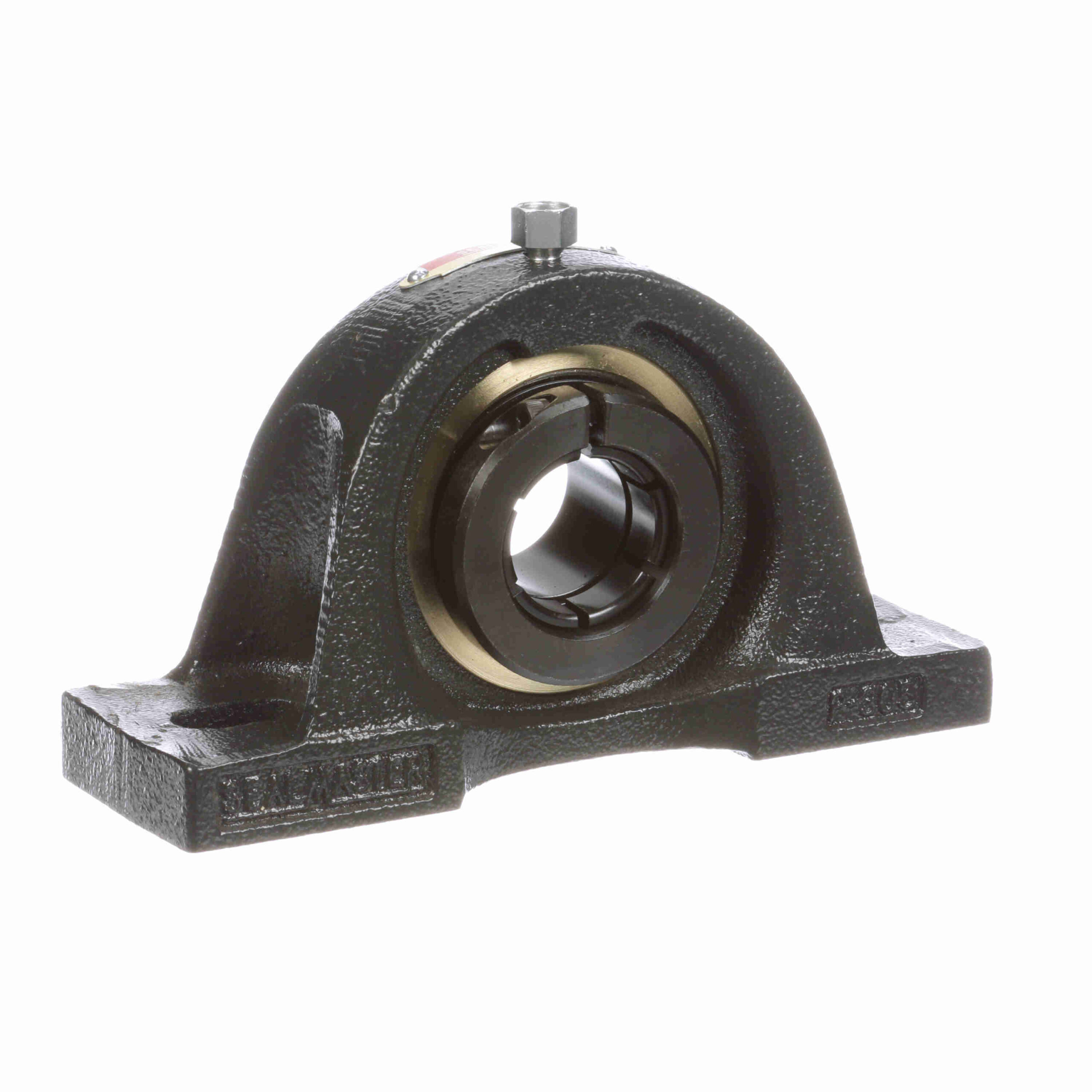

EMP-19TX ALP

Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
Skwezloc® concentric locking for near perfect concentricity
Labyrinth seal and flinger with oil lubrication for reduced friction and adapter for relubrication
Reduced internal clearance for less overall end play
Looser than standard housing fit for ease of alignment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Insert Material:	52100 Bearing Steel, Black Oxided	Internal Clearance:	Standard
Seal Type:	Labryinth Seal	Rolling Element:	Ball Bearing
Measure Units:	Inch	Housing Base:	Solid
Bore Shape:	Straight	Misalignment:	±2.0° Misalignment - Static Only
Housing Construction:	One Piece	Options:	Low Drag
Bearing Insert Coating:	Black Oxide Coated	Replaceable Insert:	Yes
Housing Color:	Gray	Platform:	Gold Line Ball Bearing
Misalignment Type:	Static Only	End Cap:	No
Outer Ring Land Profile:	Standard	Housing Material:	Cast Iron
Duty/Series:	Medium Duty	Lubrication Type:	Oil Coated Only - No Factory Grease Fill
Maximum Speed (RPM):	7600 rpm	Housing Style:	Pillow Block
Housing Type:	Pillow Block, Two Bolt	Retainer Type:	Land Riding Retainer
Locking Type:	Concentric	Fixed vs. Expansion:	Expansion
Maximum Operating Temperature (F):	220 °F	Inner Race Heat Treat Method:	Zone-Hardened
Ability to Relubricate:	Yes	Insert Number:	AR-2-13TX HX
UPC:	662461000000	Weight:	5.70 LB
Packaged Length:	4.63 Inches	Packaged Width:	2.31 Inches
Packaged Height:	7.5 Inches	HTC:	8483.20.8040
Country of Origin:	United States of America
