- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS60Q23

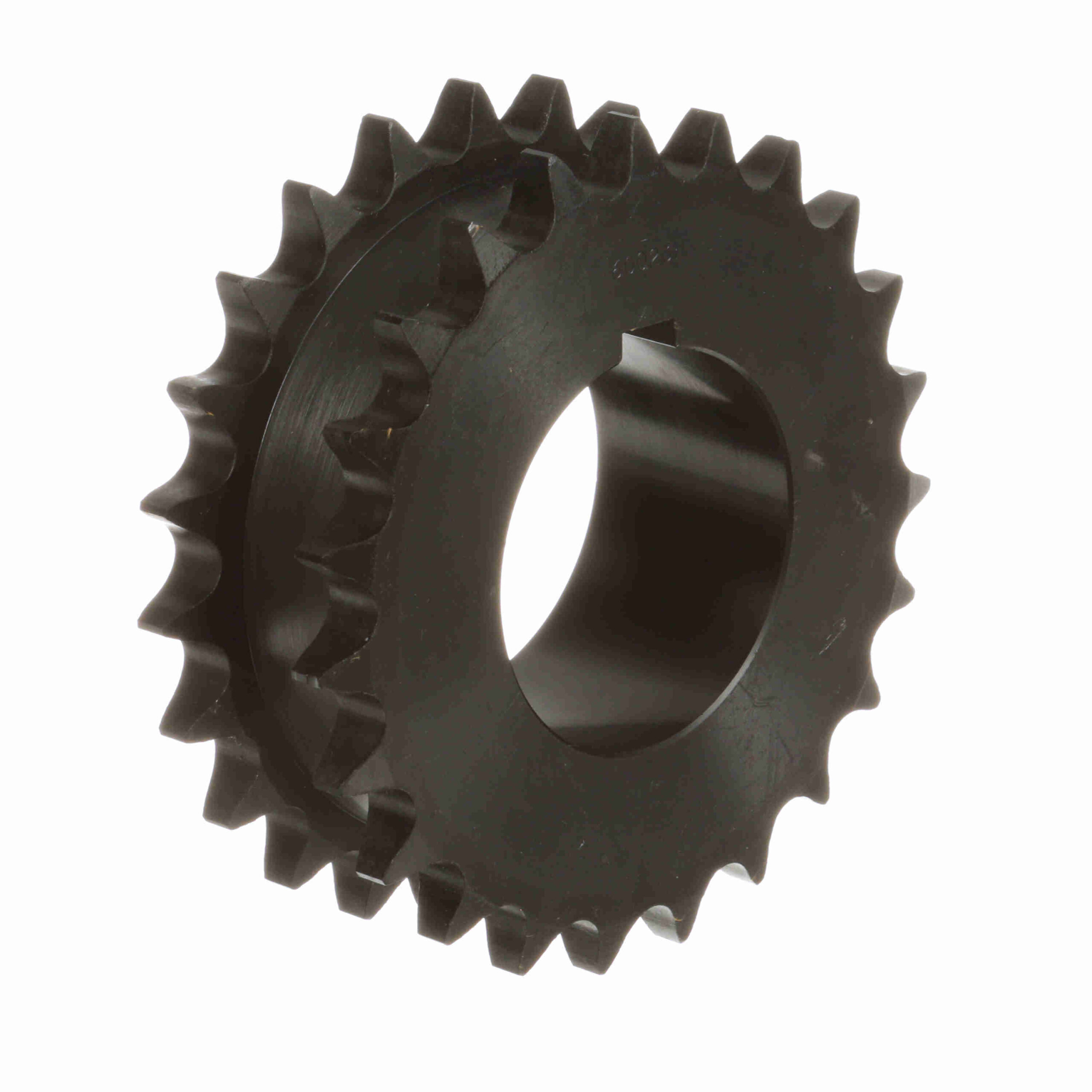

Browning Steel Bushed Bore Roller Chain Sprocket – DS60Q23
$670.70
Out of stock
Out of stock
| Chain Pitch (in): | 0.75 in | Number of teeth: | 23 |
|---|---|---|---|
| Pitch Diameter (in): | 5.508 in | Bore (Min) (in): | 0.75 in |
| Bushing Used: | Split Taper | Product Type: | Bushed Roller Chain Sprocket |
| Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain | Material: | Steel |
| Bore (Max) (in): | 2.6875 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 3.03125 in | Outside Diameter (in): | 5.907 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Hardened Teeth: | Yes | Pitch Type: | Single |
| UPC: | 662289148462 | Weight: | 7.36 LB |
| Packaged Length: | 6.06 Inches | Packaged Width: | 6.06 Inches |
| Packaged Height: | 2.50 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
