- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
DS40P24

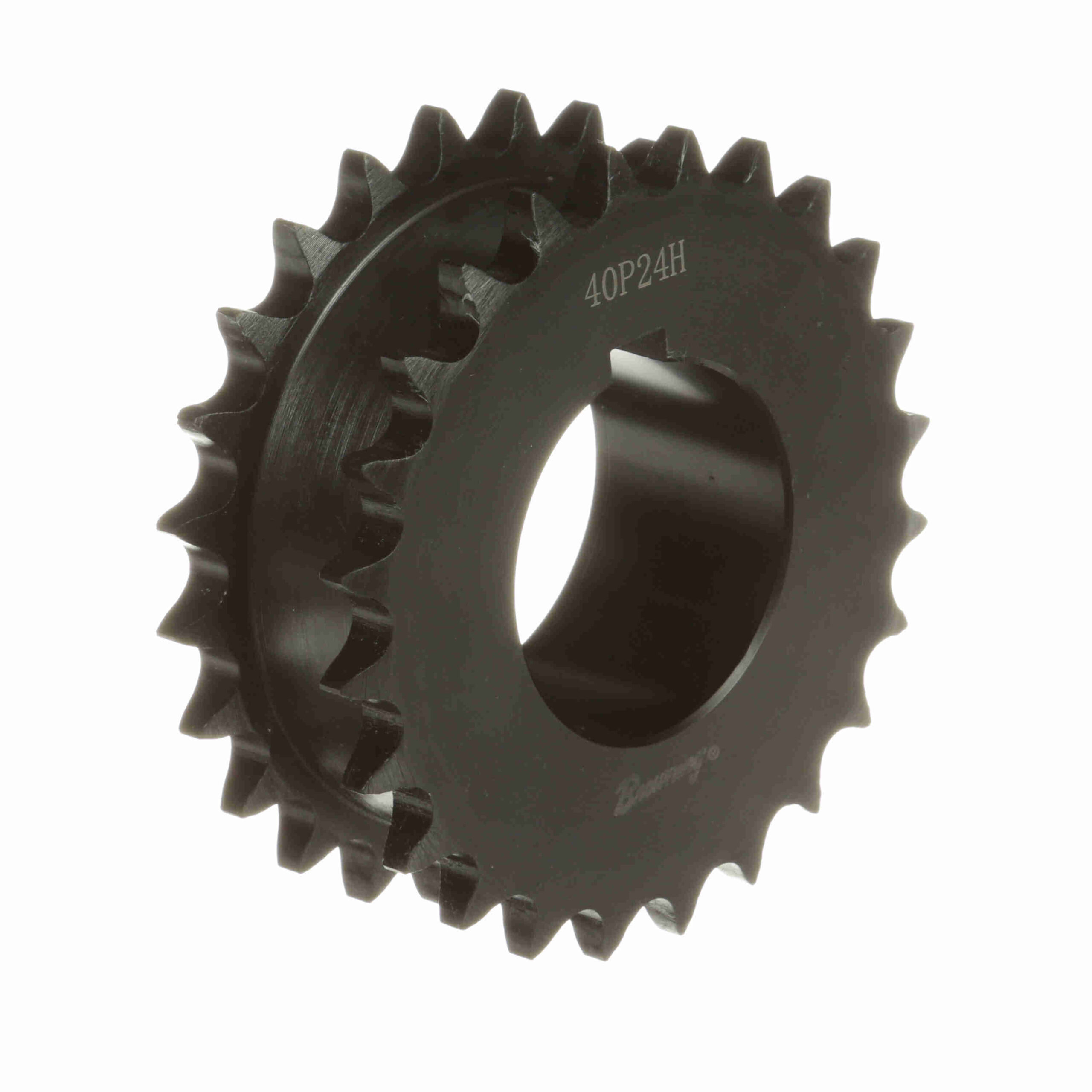

Browning Steel Bushed Bore Roller Chain Sprocket – DS40P24
$437.39
Out of stock
Out of stock
| Material: | Steel | Number of teeth: | 24 |
|---|---|---|---|
| Pitch Diameter (in): | 3.831 in | Chain Used: | No. 40, 1/2 in. Pitch ANSI Chain |
| Bore (Min) (in): | 0.5 in | Chain Pitch (in): | 0.5 in |
| Bushing Used: | Split Taper | Bore (Max) (in): | 1.75 in |
| Product Type: | Bushed Roller Chain Sprocket | Outside Diameter (in): | 4.098 in |
| Length Through Bore (in): | 1.9375 in | Hub Diameter (in): | 3 in |
| Bore Type: | Bushed Bore | Sprocket Material: | Steel |
| Hub Type: | Bushed | Overall Length (in): | 2.21875 in |
| Tooth Width (in): | 0.284 in | Number of Strands/Width: | 2 |
| Bushing Bore (Min) (in): | 0.5 in | Bushing Bore (Max) (in): | 1.75 in |
| Width Across Tooth Sets: | 1.406 | Hardened Teeth: | Yes |
| Hub Projection (in): | 0.625 | Pitch Type: | Single |
| Overall Width (in): | 2.219 in | UPC: | 662289118366 |
| Weight: | 2.58 LB | Packaged Length: | 4.56 Inches |
| Packaged Width: | 4.56 Inches | Packaged Height: | 1.56 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | United States of America |
