- Browning Change Gears, change gear bushing sold separately
- Browning Gears are rated in accordance with AGMA standards
- When you think “Special” Gears – Think Browning
NCG1661

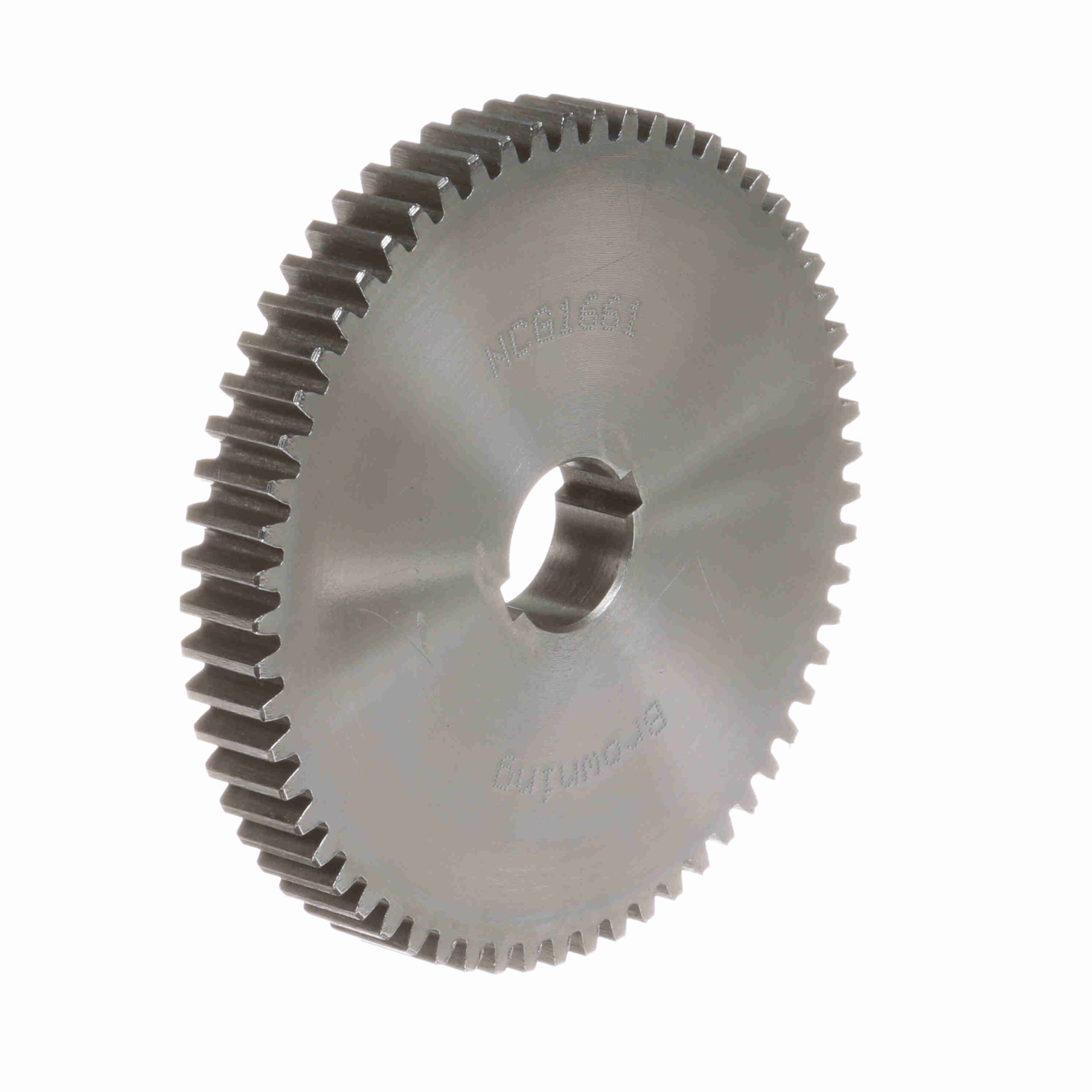

Browning Steel Minimum Plain Bore Change Gear – 14.5 PA 16 DP – NCG1661
$252.48
Out of stock
Out of stock
| Material: | Steel | Diametral Pitch: | 16 |
|---|---|---|---|
| Number of Teeth/Threads: | 61 | Pressure Angle: | 14.5 |
| Pitch Diameter (in): | 3.813 in | Outside Diameter (in): | 3.93 in |
| Face Width (in): | 0.5 in | Bore (Max) (in): | 0.75 in |
| Bore Type: | Minimum Plain Bore | Length Through Bore (in): | 0.5 in |
| Bore (Min) (in): | 0.75 in | Product Type: | Change Gear |
| Bore Size (in): | 0.75 in | Hub Type: | Type A |
| Standard Met: | AGMA | UPC: | 662289289264 |
| Weight: | 1.60 LB | Packaged Length: | 5.90 Inches |
| Packaged Width: | 5.60 Inches | Packaged Height: | 1.10 Inches |
| HTC: | 8483.40.9000 | Country of Origin: | Mexico |
