- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D60P20

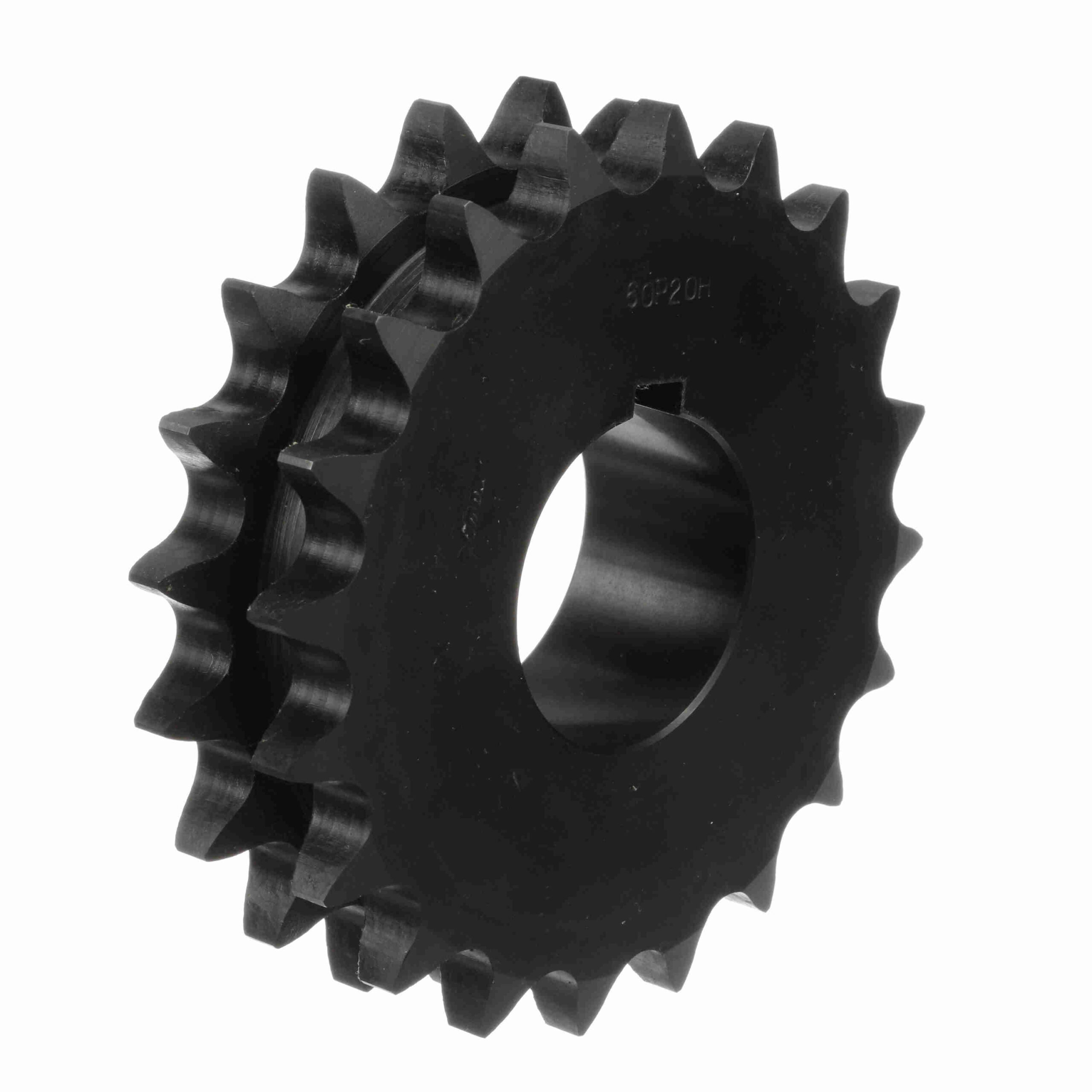

Browning Steel Bushed Bore Roller Chain Sprocket – D60P20
$422.60
Out of stock
Out of stock
| Bushing Used: | Split Taper | Bore (Min) (in): | 0.5 in |
|---|---|---|---|
| Bore (Max) (in): | 1.75 in | Product Type: | Bushed Roller Chain Sprocket |
| Material: | Steel, Hardened Teeth | Chain Used: | No. 60, 3/4 in. Pitch ANSI Chain |
| Number of teeth: | 20 | Chain Pitch (in): | 0.75 in |
| Pitch Diameter (in): | 4.794 in | Outside Diameter (in): | 5.185 in |
| Overall Length (in): | 2.165725 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Pitch Type: | Single | Width Across Tooth Sets: | 1.341 |
| UPC: | 662289289332 | Weight: | 4.72 LB |
| Packaged Length: | 6.06 Inches | Packaged Width: | 6.06 Inches |
| Packaged Height: | 1.56 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
