- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D50P20

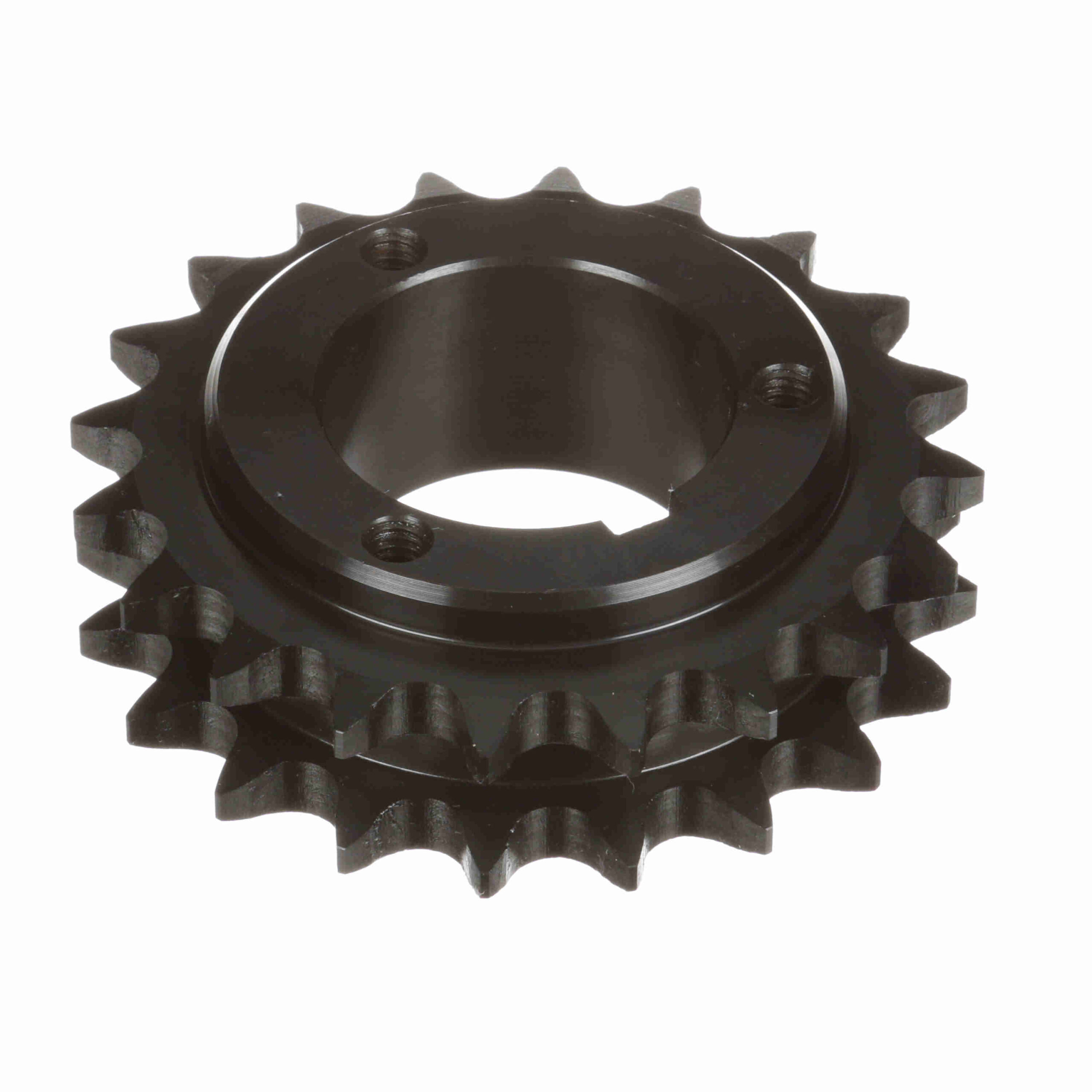

Browning Steel Bushed Bore Roller Chain Sprocket – D50P20
$396.54
Out of stock
Out of stock
| Bore (Min) (in): | 0.5 in | Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain |
|---|---|---|---|
| Product Type: | Bushed Roller Chain Sprocket | Bore (Max) (in): | 1.75 in |
| Number of teeth: | 20 | Material: | Steel, Hardened Teeth |
| Chain Pitch (in): | 0.625 in | Pitch Diameter (in): | 3.995 in |
| Bushing Used: | Split Taper | Overall Length (in): | 2.142725 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 4.321 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Width Across Tooth Sets: | 1.045 | Pitch Type: | Single |
| Number of Hubs: | 1 | UPC: | 662289169092 |
| Weight: | 2.58 LB | Packaged Length: | 6.40 Inches |
| Packaged Width: | 6.20 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
