- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D50P17

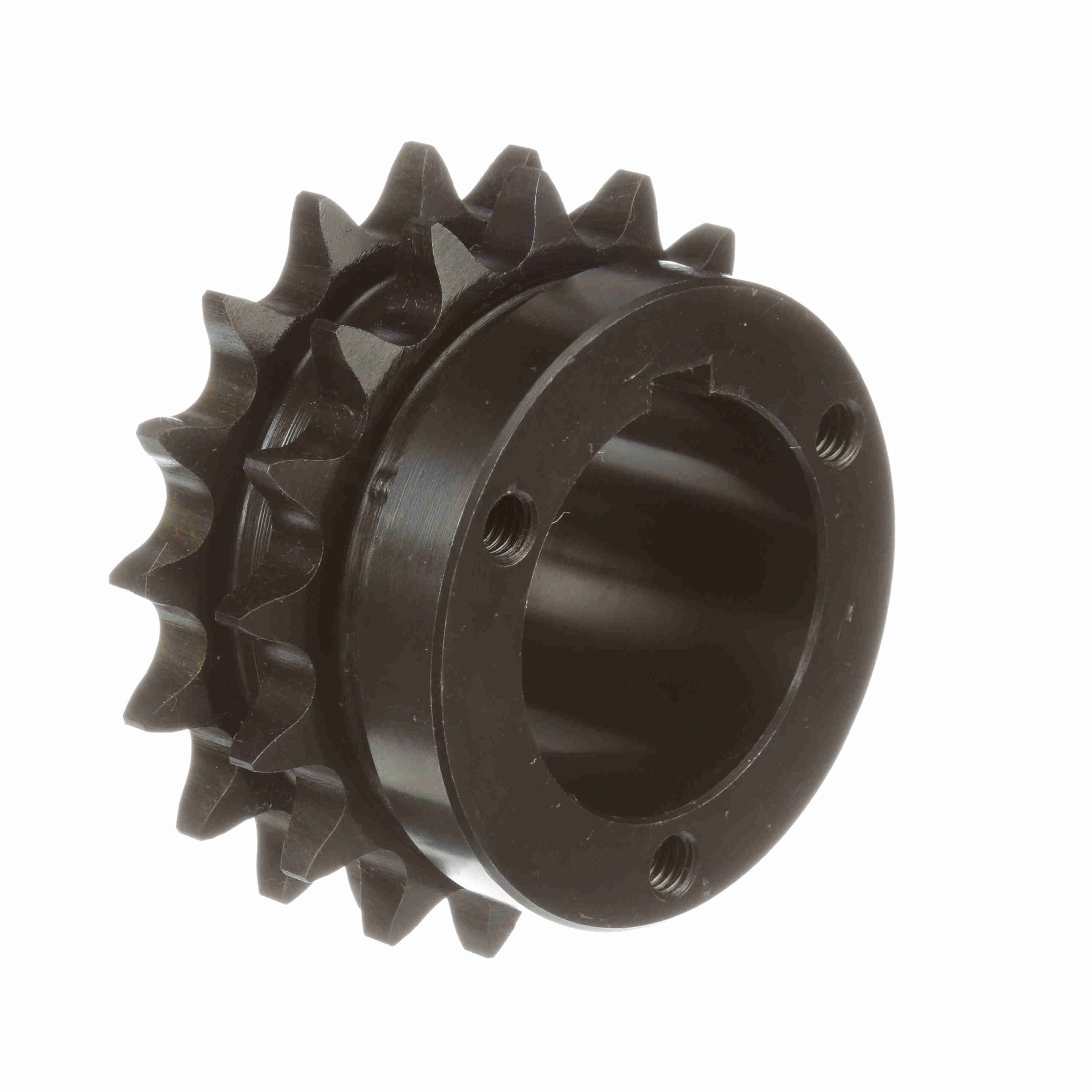

Browning Steel Bushed Bore Roller Chain Sprocket – D50P17
$355.70
Out of stock
Out of stock
| Number of teeth: | 17 | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Material: | Steel, Hardened Teeth | Pitch Diameter (in): | 3.401 in |
| Bushing Used: | Split Taper | Bore (Max) (in): | 1.75 in |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Bore (Min) (in): | 0.5 in |
| Chain Pitch (in): | 0.625 in | Bore Type: | Bushed Bore |
| Overall Length (in): | 2.640625 in | Outside Diameter (in): | 3.718 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Maximum Bore (in): | 1.75 | Minimum Bore (in): | 0.5 |
| Pitch Type: | Single | Width Across Tooth Sets: | 1.045 |
| Number of Hubs: | 1 | UPC: | 662289259083 |
| Weight: | 2.20 LB | Packaged Length: | 4.06 Inches |
| Packaged Width: | 4.06 Inches | Packaged Height: | 1.88 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
