- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D100R22

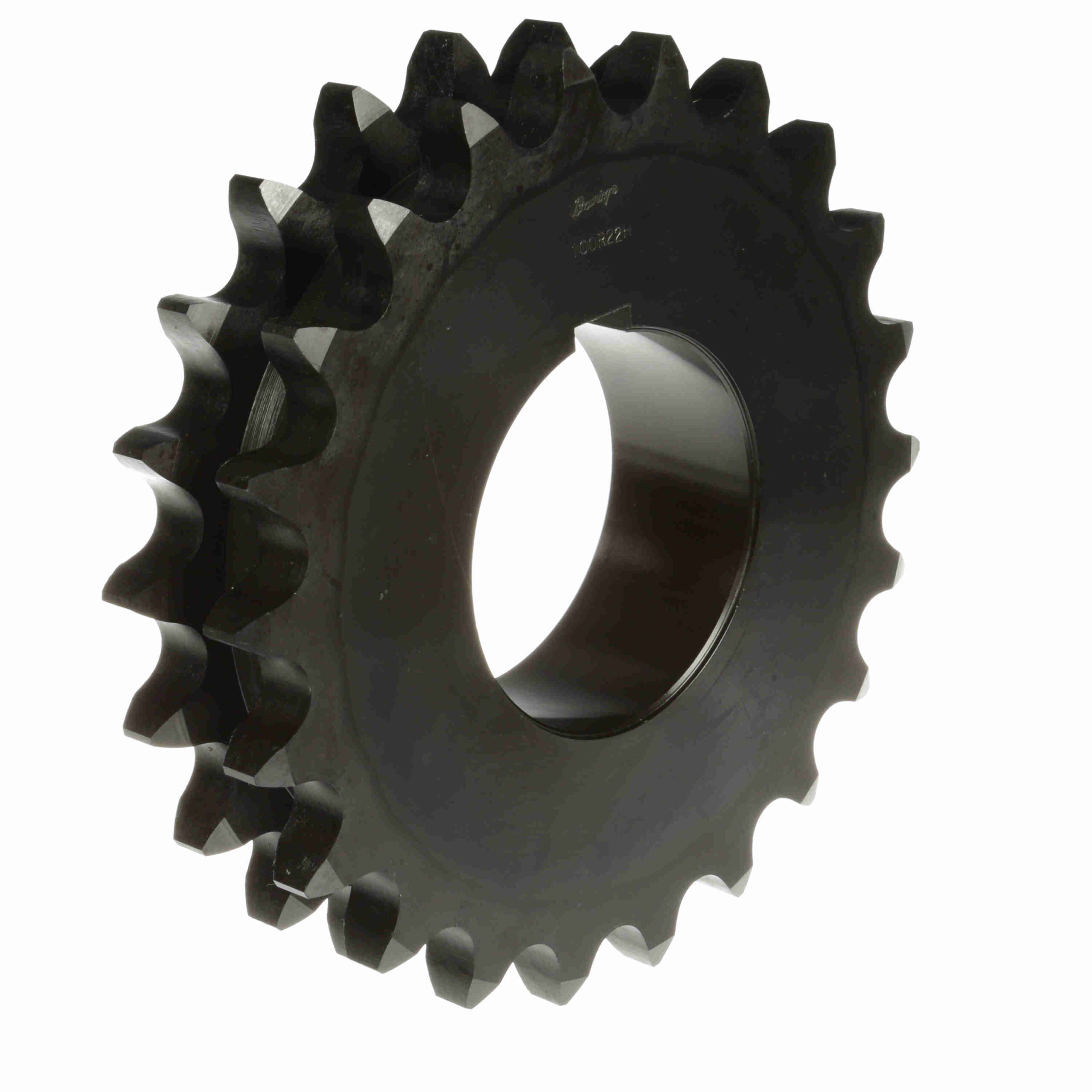

Browning Steel Bushed Bore Roller Chain Sprocket – D100R22
$1,576.38
Out of stock
Out of stock
| Bore (Min) (in): | 1.125 in | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Number of teeth: | 22 | Chain Pitch (in): | 1.25 in |
| Bore (Max) (in): | 3.75 in | Material: | Steel |
| Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain | Pitch Diameter (in): | 8.7833 in |
| Bushing Used: | Split Taper | Outside Diameter (in): | 9.444 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 3.211375 in |
| Number of Strands/Width: | 2 | Tooth Width (in): | 0.669 in |
| Hub Diameter (in): | 5.375 in | Length Through Bore (in): | 2.875 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Pitch Type: | Single | Width Across Tooth Sets: | 2.077 |
| Hub Projection (in): | 0.906 | Hardened Teeth: | Yes |
| Overall Width (in): | 3.21875 in | UPC: | 662289299928 |
| Weight: | 23.54 LB | Packaged Length: | 10.30 Inches |
| Packaged Width: | 10.30 Inches | Packaged Height: | 2.50 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
