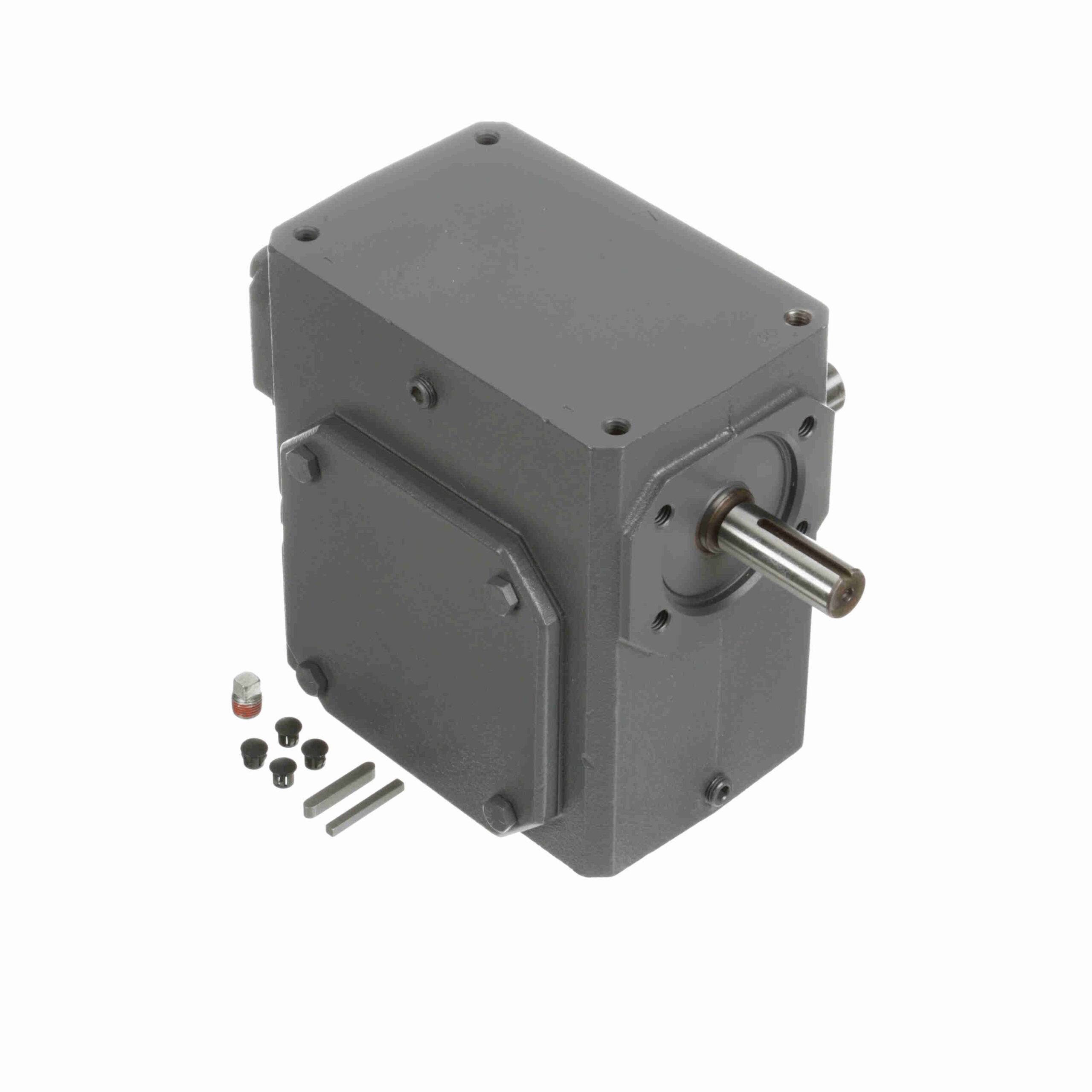

300UR30

Rugged Cast-Iron Housing: Provides maximum strength and dependability.
High lead angle worm is case hardened, ground and polished.
Large, Single Row Ball Bearings On Input Shaft: Absorb radial and thrust loads at higher input speeds. Tapered roller bearings are used on output shaft.
Forged Bronze Worm Gears: Provide optimum balance of Strength and Wear.

Key Length:	1.31	Thrust Rating - output shaft:	3410
Efficiency:	80	Ratio:	30:1
Key Sq.:	0.188	Input Speed:	1750
Shaft Seal Material:	Nitrile	Reducer Style:	Standard
Output Key:	1/4 X 2.25	Input HP @ 1750 RPM:	2.63
Ratio Range:	30:1	Input Diameter (in):	0.875 in
Product Type:	Worm Speed Reducer	Input Keyway:	3/16 X 1.31 in
Center Distance (in):	3	Assembly:	U-R
Output Shaft Assembly Code:	R	Gear Type:	Worm
Input RPM:	1, 750	No. of Gear Reductions:	Single
Mounting Style:	No Base	Model Code:	300U
Reducer:	Worm - Right Angle	Output Diameter (in):	1.250 in
Input Style:	Solid Shaft	Service Factor:	1
Series Code:	Raider	Output RPM:	58.3
Output Shaft Direction:	Right	Overhung Load Rating (Output Shaft(lb)):	987 lb
Output Shaft:	Solid Shaft	Housing Material:	Cast Iron
Output Torque Rating (in-lb):	2519 in-lbs @1750 input RPM in/lbs	UPC:	6, 62288E+11
Weight:	64.00 LB
