- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D100R20

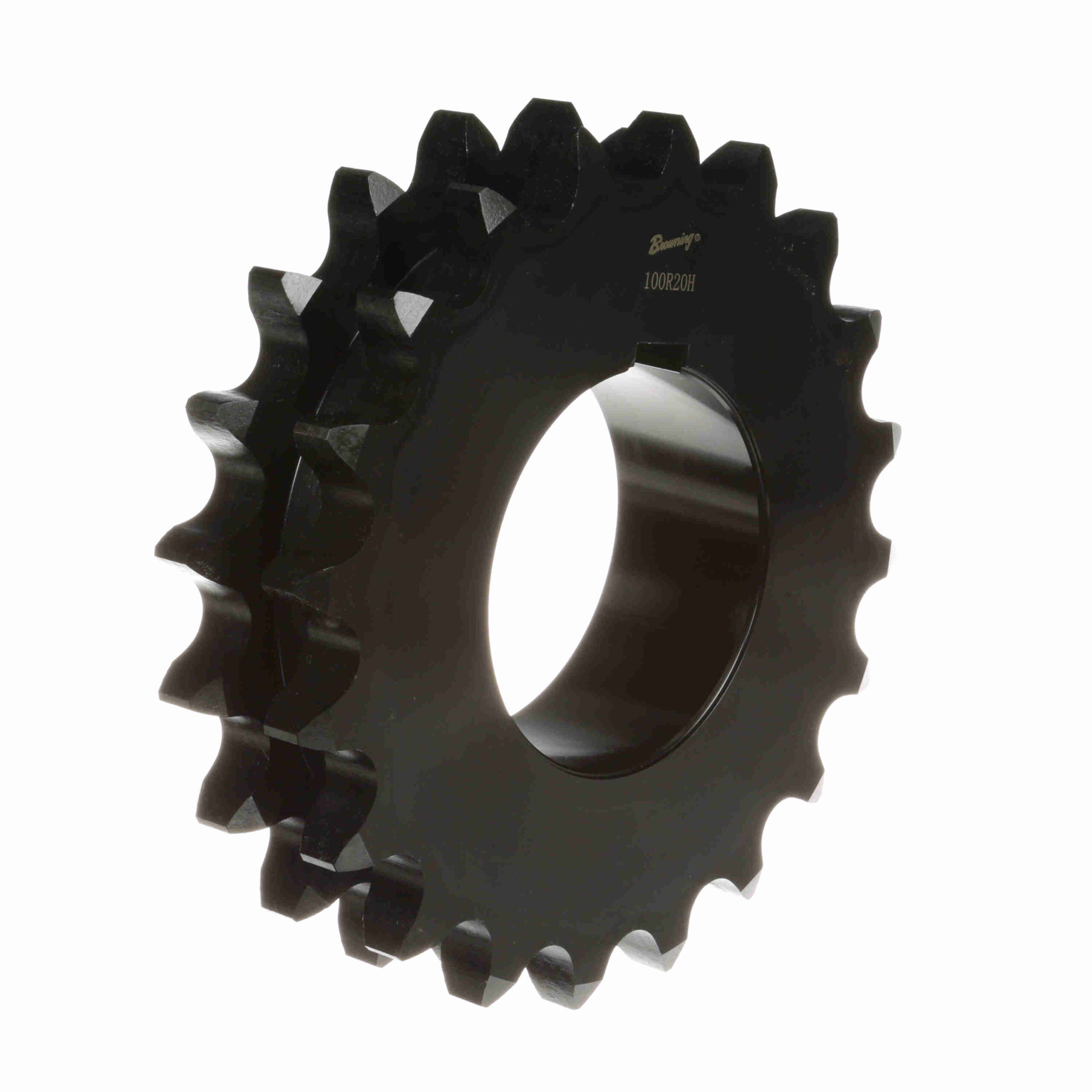

Browning Steel Bushed Bore Roller Chain Sprocket – D100R20
$1,230.69
Out of stock
Out of stock
| Material: | Steel | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Pitch Diameter (in): | 7.9906 in |
| Chain Pitch (in): | 1.25 in | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Bore (Max) (in): | 3.75 in | Number of teeth: | 20 |
| Product Type: | Bushed Roller Chain Sprocket | Bore Type: | Bushed Bore |
| Outside Diameter (in): | 8.642 in | Overall Length (in): | 3.211375 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Pitch Type: | Single | Width Across Tooth Sets: | 2.077 |
| UPC: | 662289239979 | Weight: | 17.99 LB |
| Packaged Length: | 10.40 Inches | Packaged Width: | 10.60 Inches |
| Packaged Height: | 2.40 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
