- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D100Q12

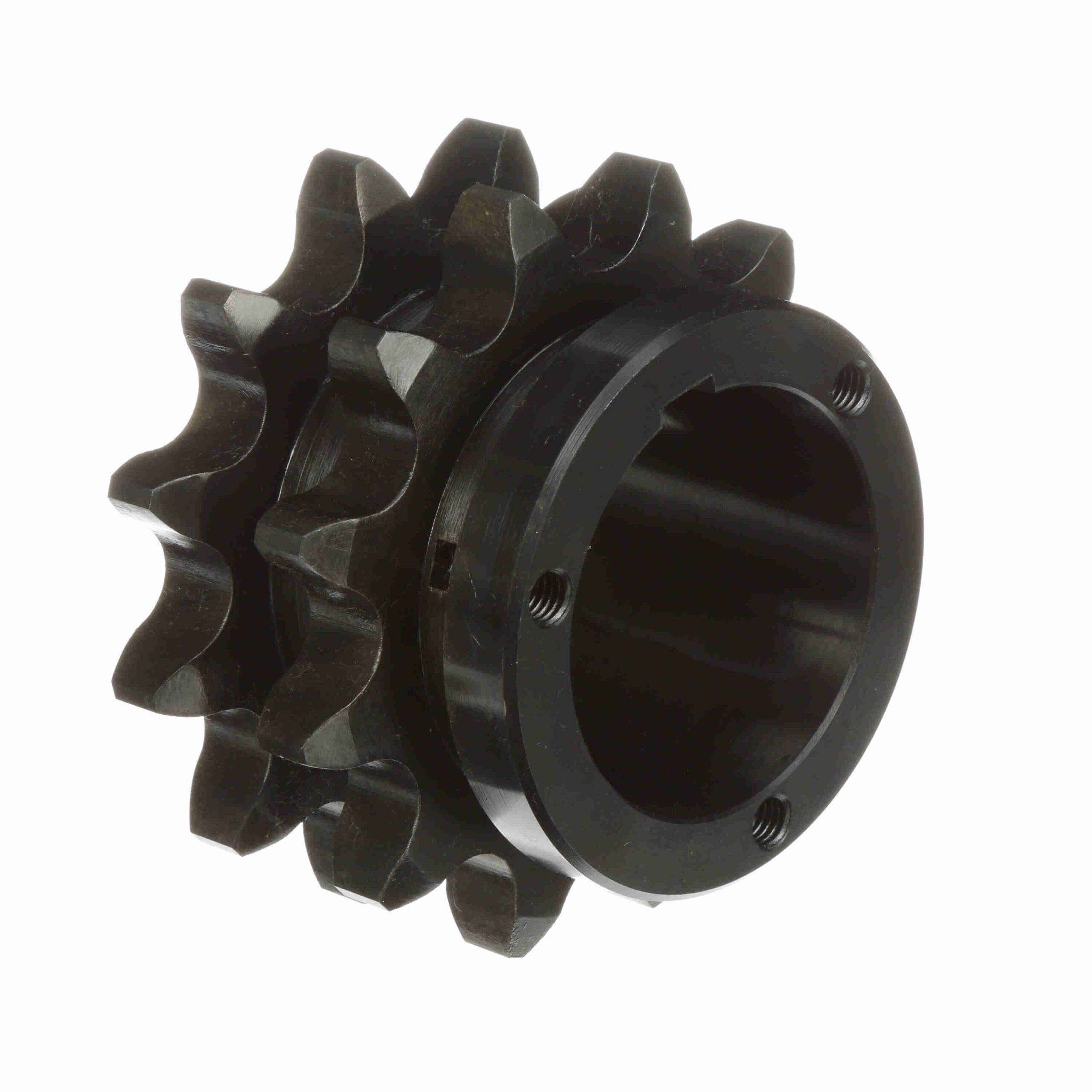

Browning Steel Bushed Bore Roller Chain Sprocket – D100Q12
$781.39
Out of stock
Out of stock
| Material: | Steel, Hardened Teeth | Bore (Min) (in): | 1 in |
|---|---|---|---|
| Bushing Used: | Split Taper | Number of teeth: | 12 |
| Product Type: | Bushed Roller Chain Sprocket | Chain Pitch (in): | 1.25 in |
| Pitch Diameter (in): | 4.8296 in | Chain Used: | No. 100, 1-1/4 in. Pitch ANSI Chain |
| Bore (Max) (in): | 2.625 in | Overall Length (in): | 4.265625 in |
| Bore Type: | Bushed Bore | Outside Diameter (in): | 5.415 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 1 | Maximum Bore (in): | 2.625 |
| Pitch Type: | Single | Width Across Tooth Sets: | 2.077 |
| Number of Hubs: | 1 | UPC: | 662289119851 |
| Weight: | 6.28 LB | Packaged Length: | 6.50 Inches |
| Packaged Width: | 6.60 Inches | Packaged Height: | 3.90 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
