- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc? Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity , ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360? grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPS-PN23T

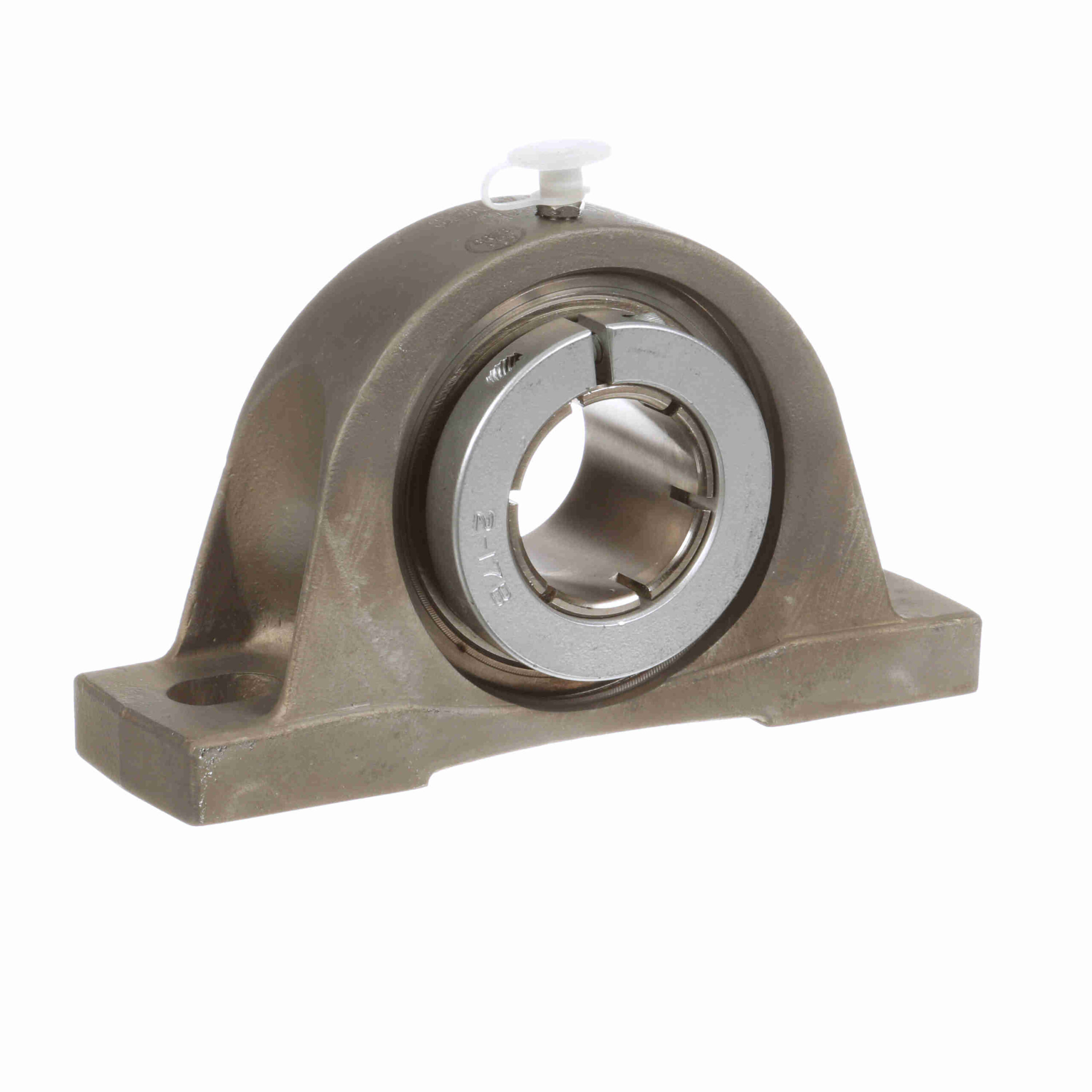

Sealmaster Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – CRPS-PN23T
$434.72
Out of stock
Out of stock
| Seal Type: | Multi-Lip Contact Seal | Housing Type: | Pillow Block; Two Bolt |
|---|---|---|---|
| Insert No.: | PN-23T | Measure Units: | Inch |
| Housing Material: | Stainless Steel | Retainer Type: | Land Riding Retainer |
| Housing Base: | Solid | Insert Material: | 52100 Bearing Steel; Phosphorus Nickel Coated |
| Maximum Operating Temperature: | 220 °F | Rolling Element: | Ball Bearing |
| Expansion: | No | Duty Series: | Standard Duty |
| Internal Clearance: | Standard | Speed (Max): | 2000 |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Locking Type: | Concentric | Misalignment: | ±2.0° Misalignment - Static Only |
| Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Relubricatable: | Yes |
| Housing Construction: | One Piece | Inner-Race Heat-Treat Method: | Zone-Hardened |
| Replaceable Insert: | Yes | Options: | Corrosion Resistant |
| Bearing Insert Coating: | Phosphorus Nickel Coated | End Cap: | Yes |
| Outer Ring Land Profile: | Standard | Housing Color: | Silver |
| Misalignment Type: | Static Only | Platform: | PN Gold |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 3, 493 |
| Cage Material: | PPS | Grease Fitting Thread Size: | 1/4-28 NF |
| UPC: | 662461348048 | Weight: | 4.50 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 2.06 Inches |
| Packaged Height: | 6.81 Inches | HTC: | 8483.20.8040 |
| Country of Origin: | United States of America |
