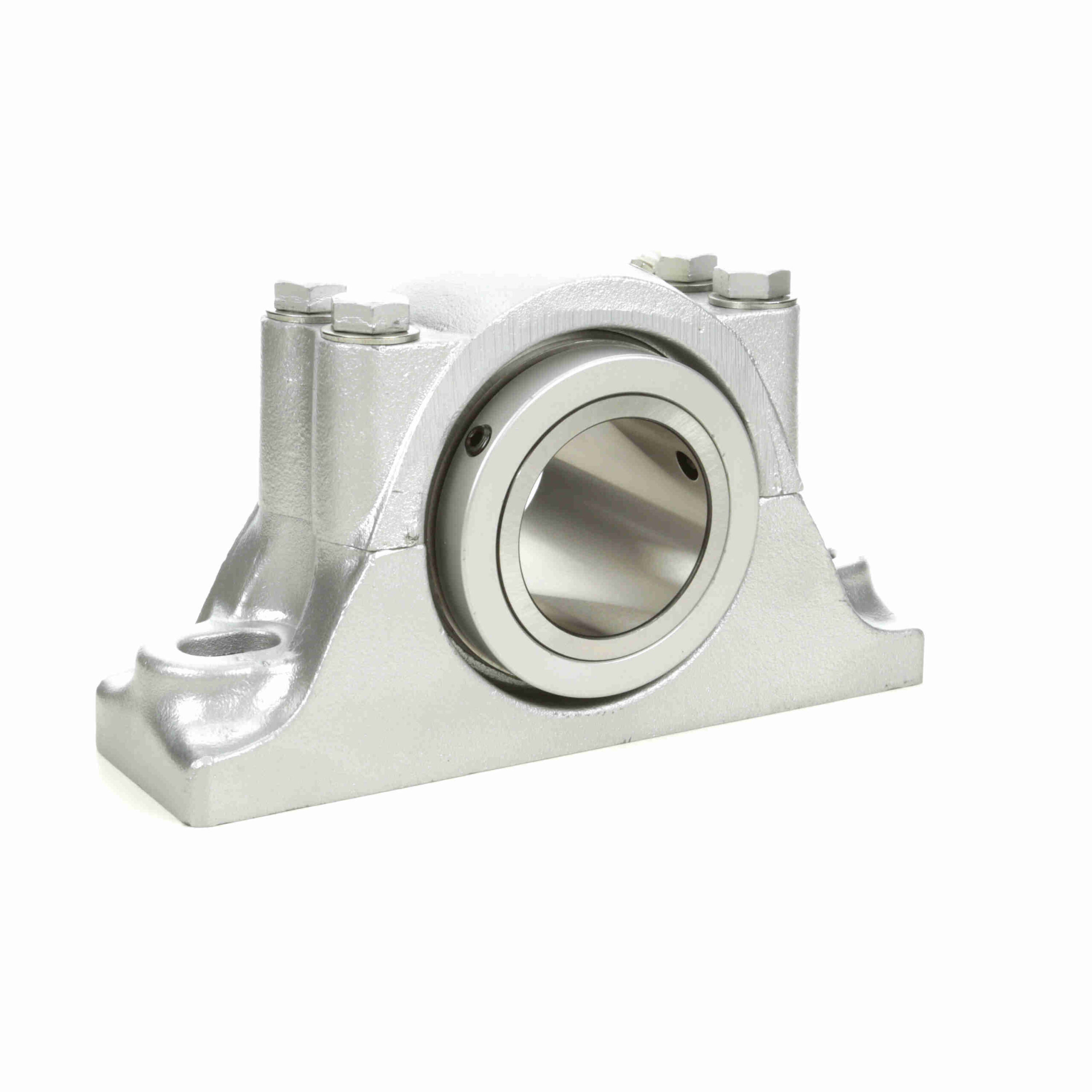

RPB 303-C2 CR

Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
Race-mounted contact flinger seal
Double-collar interlock with 120? spacing setscrew lock, diamond faceted setscrews
Fluoropolymer-coated 2-bolt split cast iron housing for improved corrosion resistance
USDA H-1 approved Food-grade grease

Insert Material:	52100 Bearing Steel	Housing Base:	Solid
Maximum Operating Temperature:	220 °F	Expansion:	No
Seal Type:	Single Lip Contact Seal	Measure Units:	Inch
Rolling Element:	Tapered Roller	Housing Type:	Pillow Block; Two Bolt
Inner-Race Heat-Treat Method:	Case Carburized Inner Ring	Housing Material:	Flouropolymer Coated Cast Iron
Housing Construction:	Split Two Piece	Insert No.:	RCI-303C FG1
Duty Series:	Standard	Relubricatable:	Yes
Locking Type:	Double Collar Mount	Lubrication:	Lithium; EP; NLGI#2
Internal Clearance:	Standard	Bore Shape:	Straight
Speed (Max):	1500	Radial Dynamic Load Capacity (lb):	15, 320
Misalignment:	±3.0° Misalignment - Static Only	Misalignment Type:	Static Only
Outer Ring Land Profile:	Standard	Housing Color:	Silver/Gray
Options:	Corrosion Resistant	Bearing Insert Coating:	Uncoated
End Cap:	No	Platform:	CR Series
Replaceable Insert:	Yes	Retainer Material:	Steel
Series:	RPB	Grease Fitting Thread Size:	1/8 NPT
UPC:	662461298213	Weight:	56.00 LB
Packaged Length:	16.5 Inches	Packaged Width:	6.75 Inches
Packaged Height:	9.63 Inches	HTC:	8483.20.8080
Country of Origin:	United States of America
