- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRPS-PN23T RMW

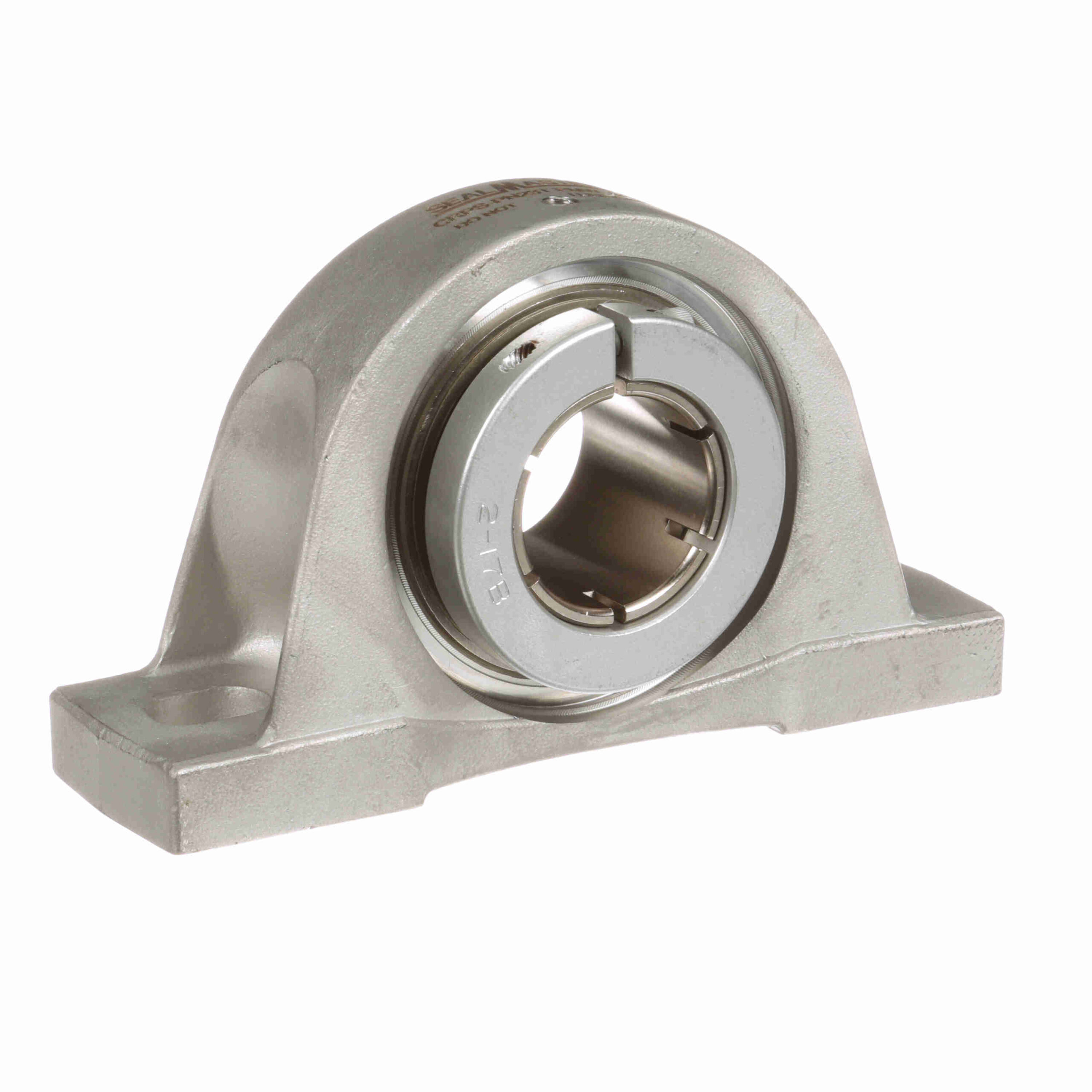

Sealmaster Mounted Stainless Steel Two Bolt Pillow Block Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Concentric Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRPS-PN23T RMW
$434.72
Out of stock
Out of stock
| Seal Type: | Multi-Lip Contact Seal | Rolling Element: | Ball Bearing |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Measure Units: | Inch |
| Internal Clearance: | Standard | Housing Base: | Solid |
| Insert No.: | PN-23T | Speed (Max): | 2000 |
| Housing Material: | Stainless Steel | Maximum Operating Temperature: | 220 °F |
| Duty Series: | Standard Duty | Expansion: | No |
| Housing Type: | Pillow Block, Two Bolt | Retainer Type: | Land Riding Retainer |
| Bore Shape: | Straight | Radial Dynamic Load Capacity (lb): | 5, 782 |
| Relubricatable: | No | Housing Construction: | One Piece |
| Locking Type: | Concentric | Lubrication: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Inner-Race Heat-Treat Method: | Zone-Hardened | Misalignment: | ±2.0° Misalignment - Static Only |
| Outer Ring Land Profile: | Tapered Lands | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Bearing Insert Coating: | Phosphorus Nickel Coated |
| End Cap: | Yes | Housing Color: | Silver |
| Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life | Platform: | PN Gold |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 3, 493 |
| Cage Material: | PPS | UPC: | 662461375495 |
| Weight: | 4.50 LB | Packaged Length: | 4.38 Inches |
| Packaged Width: | 2.06 Inches | Packaged Height: | 6.81 Inches |
| HTC: | 8483.20.8040 | Country of Origin: | United States of America |
