- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Reduced maintenance design with plug and includes Sealmaster® Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFTS-PN31 RMW

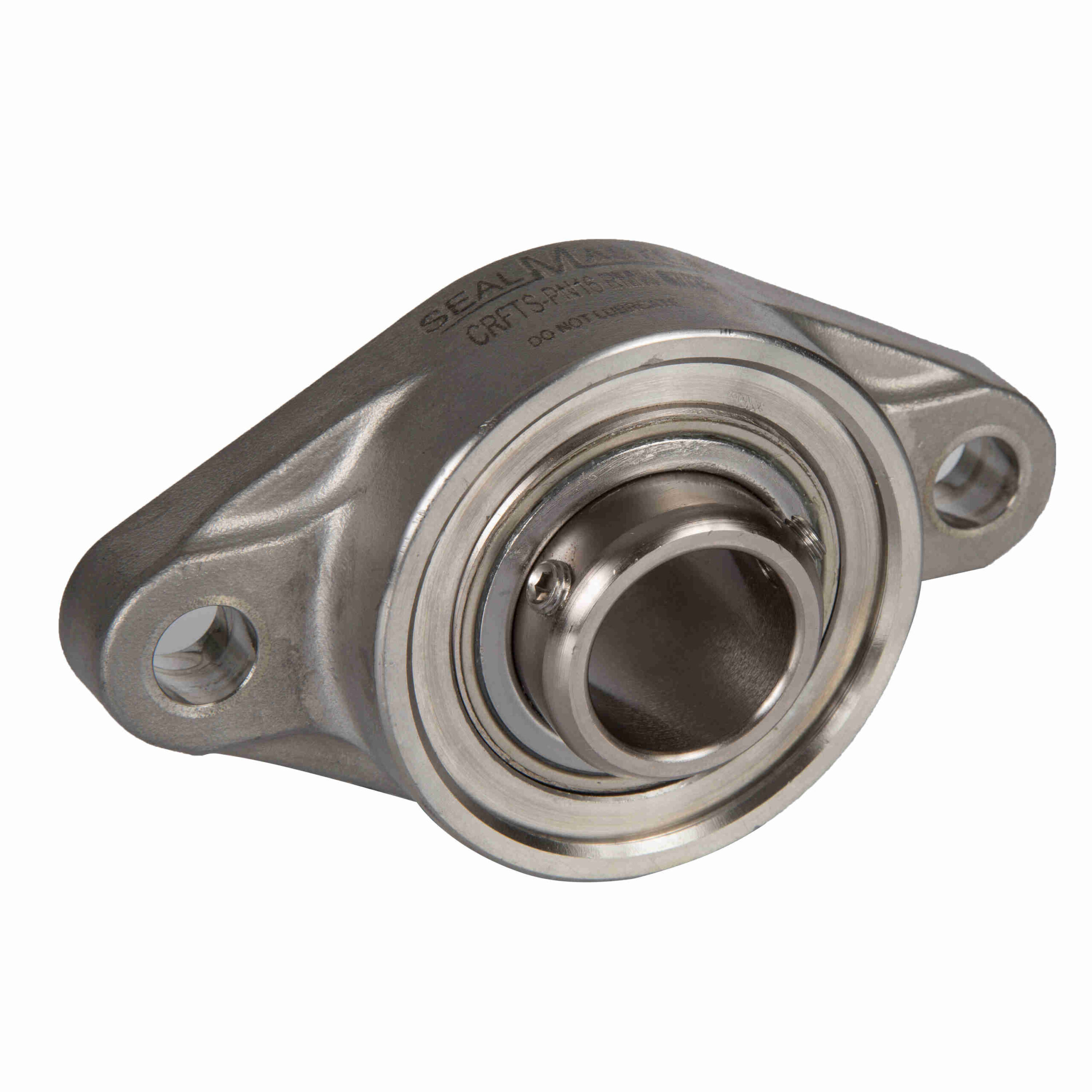

Sealmaster Mounted Stainless Steel Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – Reduced Maintenance – Lubed for Life – CRFTS-PN31 RMW
$2,038.24
Out of stock
Out of stock
| Measure Units: | Inch | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
|---|---|---|---|
| Seal Type: | Multi-Lip Contact Seal | Housing Base: | Solid |
| Rolling Element: | Ball Bearing | Pilot Configuration: | No Pilot |
| Housing Construction: | One Piece | Internal Clearance: | Standard |
| Radial Dynamic Load Capacity (lb): | 7, 889 lb | Set Screw Thread: | 3/8-24 UNF X .25 |
| Misalignment: | ±2.0° Misalignment - Static Only | Bore Shape: | Straight |
| Bearing Insert Coating: | Phosphorus Nickel Coated | End Cap: | Yes |
| Platform: | PN Gold | Replaceable Insert: | Yes |
| Options: | Corrosion Resistant - Reduced Maintenance - Lubed for Life | Housing Color: | Silver |
| Misalignment Type: | Static Only | Backside Shield/Seal: | Optional backside shield available order separate |
| Outer Ring Land Profile: | Tapered Lands | Certifications: | IP69K |
| Radial Static Load Capacity (lb): | 5, 216 lb | Cage Material: | PPS |
| Grease Fitting Thread Size: | 46600 | Retainer Type: | Land Riding Retainer |
| Maximum Speed (RPM): | 1500 rpm | Lubrication Type: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease |
| Housing Material: | Stainless Steel | Housing Style: | Flange Block |
| Fixed vs. Expansion: | Fixed | Locking Type: | Setscrew |
| Duty/Series: | Standard Duty | Housing Type: | Flange, Two Bolt |
| Ability to Relubricate: | No | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Insert Number: | PN-31 |
| UPC: | 662461344699 | Weight: | 5.40 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
