- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High strength composite with reinforced stainless steel bolt ferrules for high load capacity and increased strength around the bolt holes.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFC-PN205

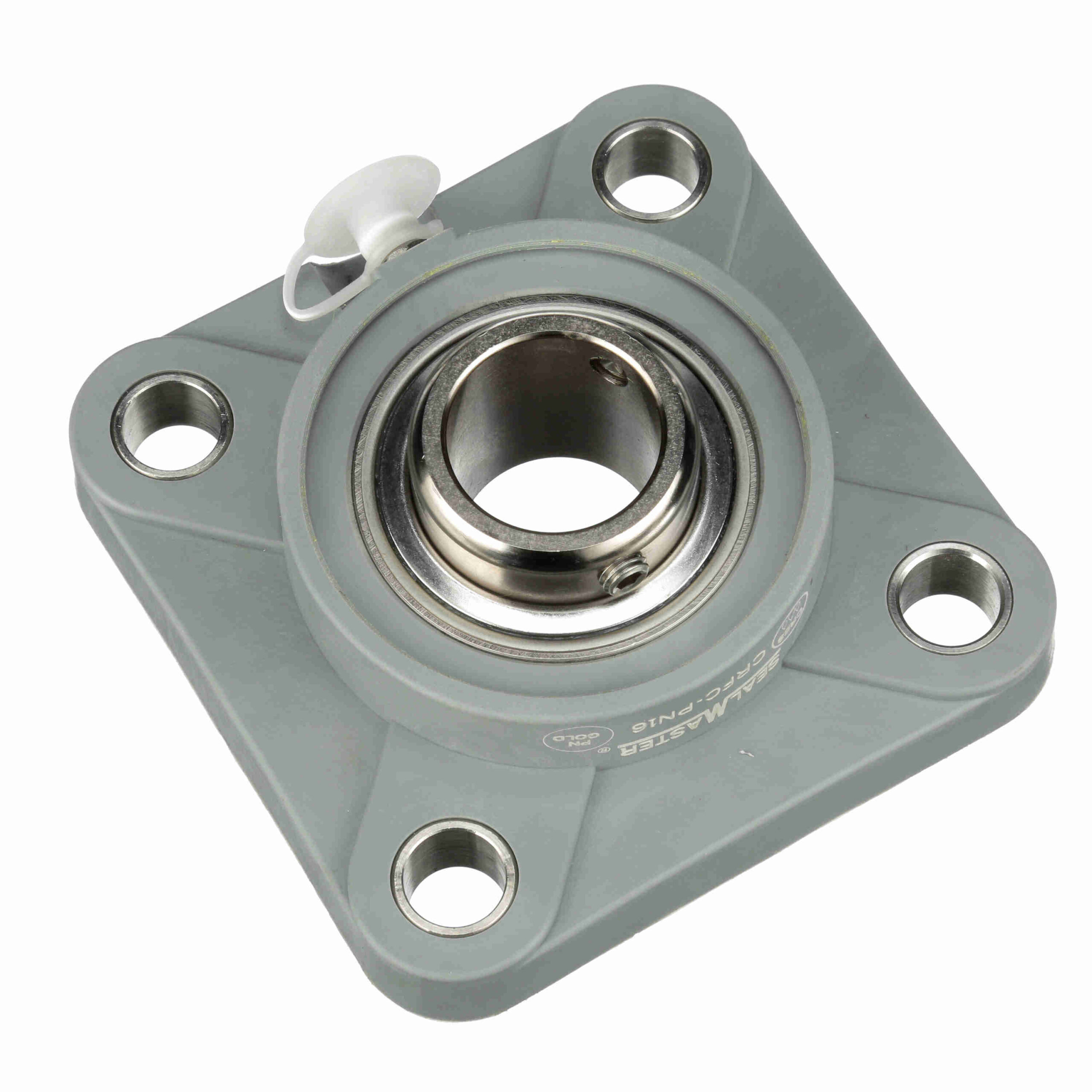

Sealmaster Mounted Composite Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – CRFC-PN205
$422.88
Out of stock
Out of stock
| Housing Base: | Solid | Bore Shape: | Straight |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated | Seal Type: | Multi-Lip Contact Seal |
| Rolling Element: | Ball Bearing | Measure Units: | Metric |
| Radial Dynamic Load Capacity (lb): | 2, 801 lb | Pilot Configuration: | No Pilot |
| Internal Clearance: | Standard | Housing Construction: | One Piece |
| Misalignment: | ±2.0° Misalignment - Static Only | End Cap: | Yes |
| Platform: | PN Gold | Backside Shield/Seal: | Optional backside shield available order separate |
| Outer Ring Land Profile: | Standard | Misalignment Type: | Static Only |
| Housing Color: | Light Gray | Bearing Insert Coating: | Phosphorus Nickel Coated |
| Options: | Corrosion Resistant | Replaceable Insert: | Yes |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 1, 651 lb |
| Cage Material: | PPS | Housing Style: | Flange Block |
| Housing Type: | Flange, Four Bolt | Maximum Speed (RPM): | 2700 rpm |
| Lubrication Type: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Locking Type: | Setscrew |
| Retainer Type: | Land Riding Retainer | Duty/Series: | Standard Duty |
| Fixed vs. Expansion: | Fixed | Housing Material: | Composite |
| Insert Number: | PN-205 | Maximum Operating Temperature (F): | 220 °F |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| UPC: | 662461347331 | Weight: | 2.10 LB |
| Packaged Length: | 4 Inches | Packaged Width: | 1.5 Inches |
| Packaged Height: | 3.94 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
