- Powder coated epoxy cast iron housing with extended inner ring bearings
- Skwezloc® concentric locking for near perfect concentricity
- Single lip contact seal with black oxide bearing races
- Metric fitting and mounting bolts
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
SFT-208TMC

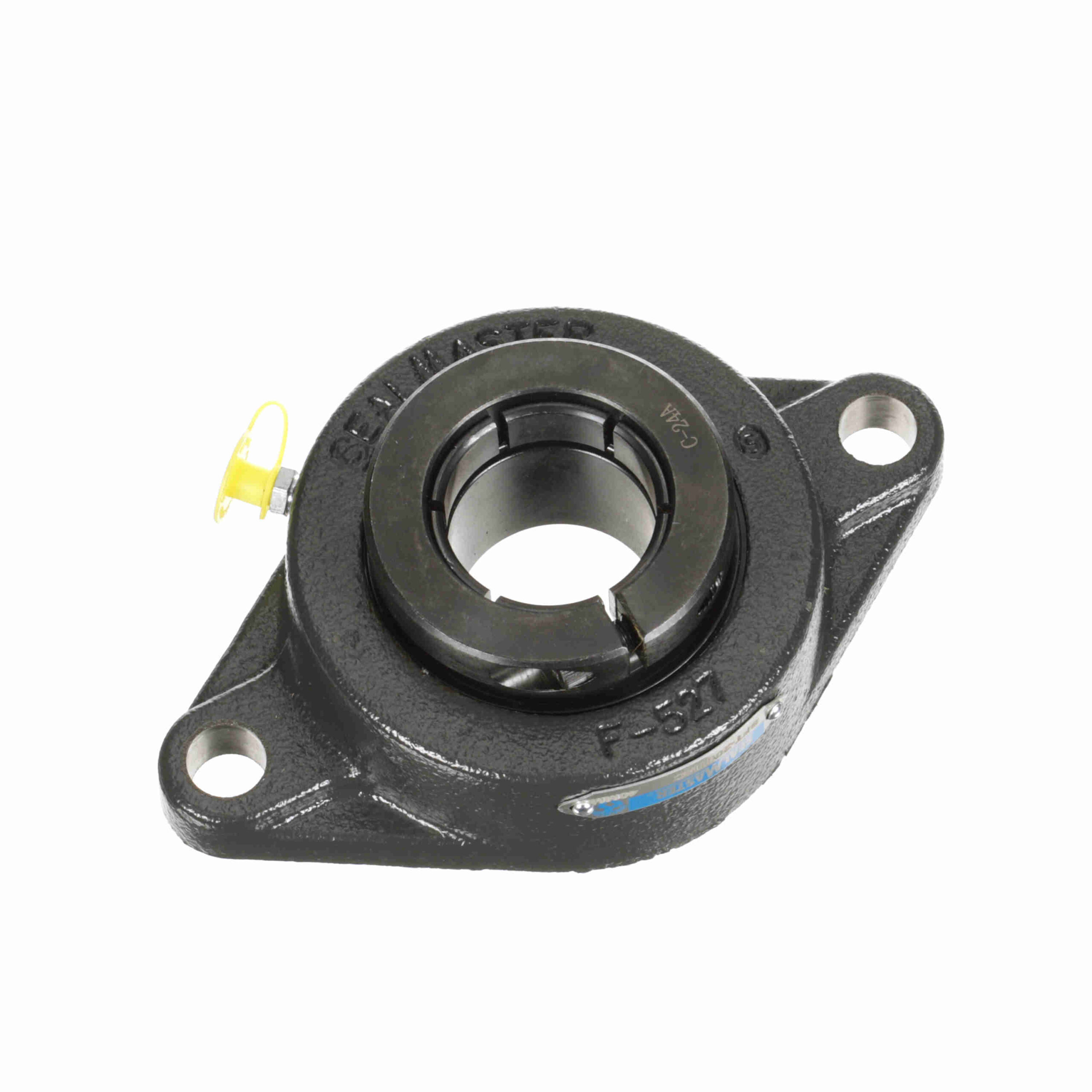

Sealmaster Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided – Concentric Lock – SFT-208TMC
$315.41
Out of stock
Out of stock
| Measure Units: | Metric | Seal Type: | Single Lip Contact Seal |
|---|---|---|---|
| Rolling Element: | Ball Bearing | Insert Material: | 52100 Bearing Steel, Black Oxided |
| Housing Base: | Solid | Pilot Configuration: | No Pilot |
| Housing Construction: | One Piece | Bore Shape: | Straight |
| Internal Clearance: | Standard | Misalignment: | ±2.0° Misalignment - Static Only |
| Housing Color: | Gray | Bearing Insert Coating: | Black Oxide Coated |
| Outer Ring Land Profile: | Standard | Platform: | Gold Line Ball Bearing |
| Replaceable Insert: | Yes | End Cap: | No |
| Misalignment Type: | Static Only | Maximum Speed (RPM): | 4150 rpm |
| Locking Type: | Concentric | Housing Type: | Flange, Two Bolt |
| Retainer Type: | Land Riding Retainer | Housing Material: | Cast Iron |
| Duty/Series: | Standard Duty | Housing Style: | Flange Block |
| Fixed vs. Expansion: | Fixed | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Inner Race Heat Treat Method: | Zone-Hardened | Ability to Relubricate: | Yes |
| Insert Number: | 5208TMC | Maximum Operating Temperature (F): | 220 °F |
| UPC: | 662461253946 | Weight: | 4.80 LB |
| Packaged Length: | 4.63 Inches | Packaged Width: | 2.31 Inches |
| Packaged Height: | 7.5 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
