- High phosphorous electroless nickel plated 52100 steel for exceptional corrosion resistance
- High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
- High quality solid base designed investment cast passivated 316 stainless steel casting providing the highest amount corrosion resistance currently available for stainless steel housings.
- Solid construction with machined base was designed for minimal gaps and no fillers
- Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
- Exclusive locking pin and dimple system provides a direct lubricant into the bearing cavity and ball path instead of around a lubrication groove, prevents outer ring rotation.
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Tapered Lands ensures that lubricant will be easily redirected back to the raceway.
- USDA H1 complaint food grade grease
CRFS-PN212

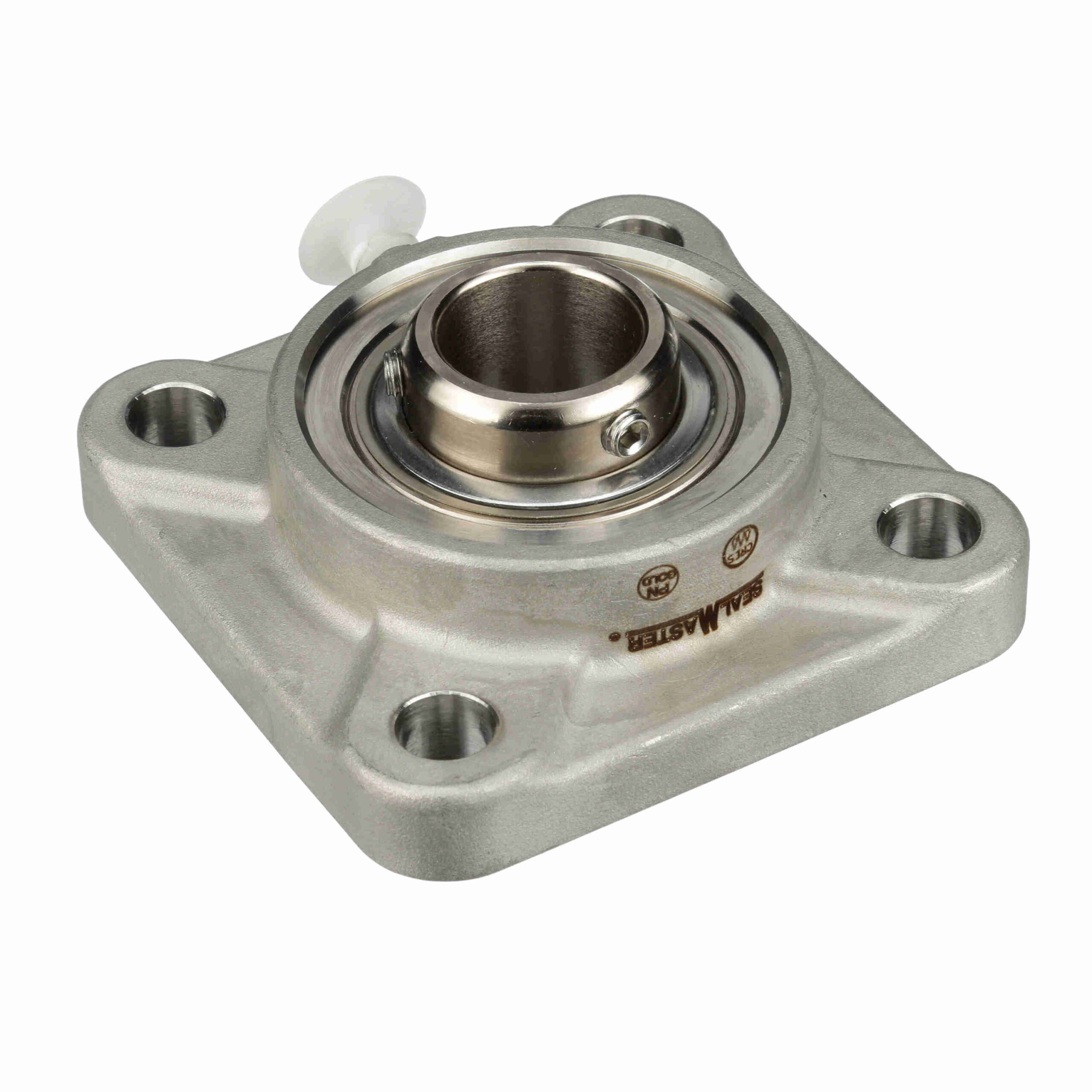

Sealmaster Mounted Stainless Steel Four Bolt Flange Ball Bearing – 52100 Bearing Steel, Phosphorus Nickel Coated – Setscrew Lock – Corrosion Resistant – CRFS-PN212
$2,927.61
Out of stock
Out of stock
| Measure Units: | Metric | Insert Material: | 52100 Bearing Steel, Phosphorus Nickel Coated |
|---|---|---|---|
| Housing Base: | Solid | Seal Type: | Multi-Lip Contact Seal |
| Rolling Element: | Ball Bearing | Bore Shape: | Straight |
| Radial Dynamic Load Capacity (lb): | 11, 789 lb | Pilot Configuration: | No Pilot |
| Misalignment: | ±2.0° Misalignment - Static Only | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Platform: | PN Gold |
| Options: | Corrosion Resistant | Housing Color: | Silver |
| Bearing Insert Coating: | Phosphorus Nickel Coated | Replaceable Insert: | Yes |
| Misalignment Type: | Static Only | Backside Shield/Seal: | Backside Shield included loose in box |
| End Cap: | Yes | Outer Ring Land Profile: | Standard |
| Certifications: | IP69K | Radial Static Load Capacity (lb): | 8, 150 lb |
| Cage Material: | PPS | Housing Material: | Stainless Steel |
| Duty/Series: | Standard Duty | Fixed vs. Expansion: | Fixed |
| Lubrication Type: | Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease | Housing Type: | Flange, Four Bolt |
| Maximum Speed (RPM): | 1250 rpm | Locking Type: | Setscrew |
| Retainer Type: | Land Riding Retainer | Housing Style: | Flange Block |
| Inner Race Heat Treat Method: | Zone-Hardened | Maximum Operating Temperature (F): | 220 °F |
| Ability to Relubricate: | Yes | Insert Number: | PN-212 |
| UPC: | 662461388341 | Weight: | 12.00 LB |
| Packaged Length: | 7.19 Inches | Packaged Width: | 7 Inches |
| Packaged Height: | 3.31 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | United States of America |
