- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Slot hole
- Heavy stud configuration
CFH 1 5/8

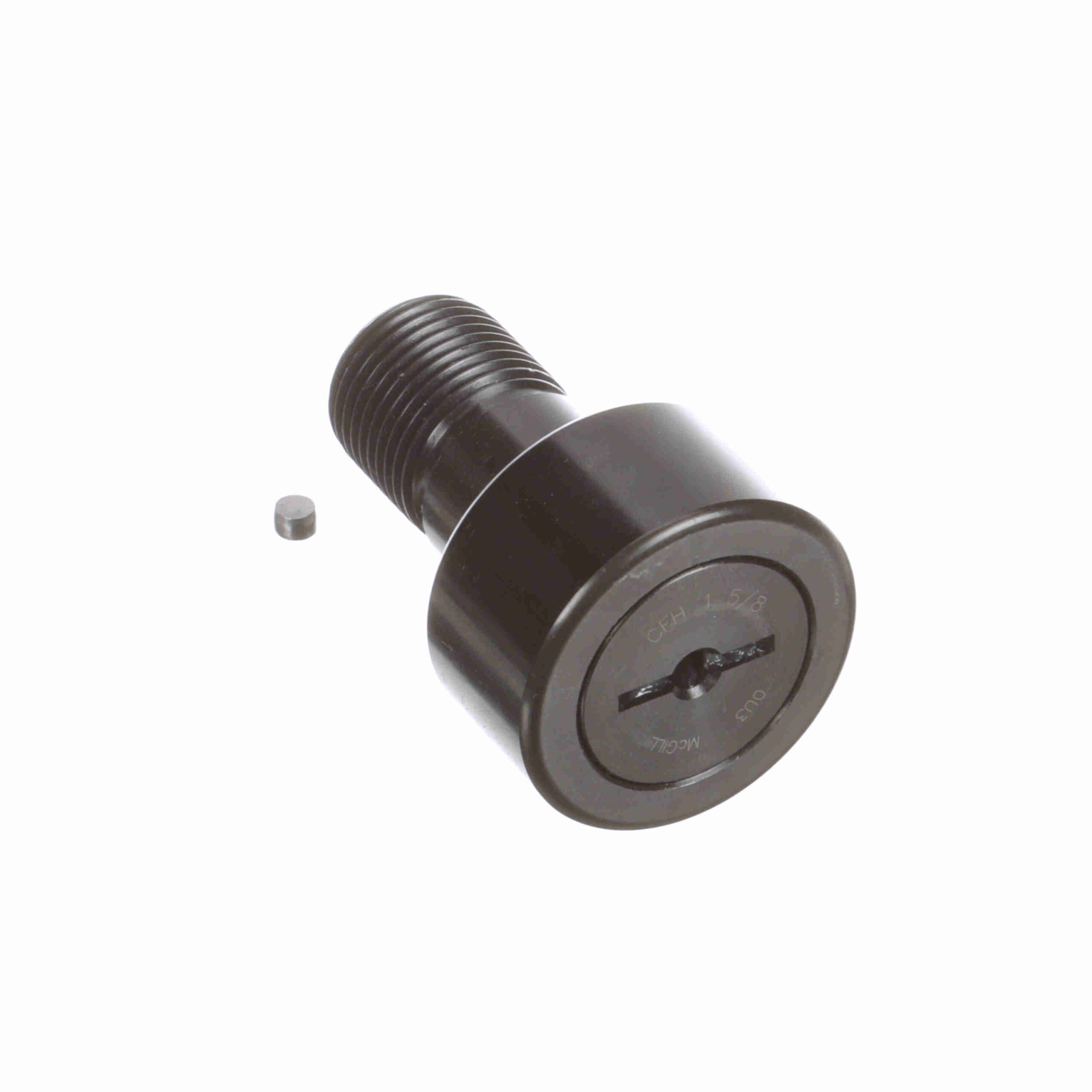

McGill Heavy Stud CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Screwdriver Slot – CFH 1 5/8
$55.75
Out of stock
Out of stock
| O.D. Configuration: | Cylindrical | Series: | Inch CAMROL® |
|---|---|---|---|
| Hex/Slot: | Screwdriver Slot | Sealing: | Unsealed |
| Adjustment: | None | Rolling Element: | Needle Roller - Full Complement |
| Limiting Speed: | 2 | Material: | Bearing Steel, Black Oxide Finish |
| Tolerance Class: | P0 Equivalent | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Stud Type: | Heavy Stud |
| Dynamic Load Rating (lb): | 4, 840 lb | Static Load Rating: | 11 |
| Lubrication Hole Location: | Stud side | Clamping Torque (in-lbf): | 1, 500 lbs |
| Ability to Relubricate: | Yes | UPC: | 726166036195 |
| Weight: | 0.71 LB | Packaged Length: | 1.68 Inches |
| Packaged Width: | 1.68 Inches | Packaged Height: | 2.62 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
