- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- HT series clutch is designed for indexing operations. Not symmetrical so order according to the rotation required
- Created for applications requiring space restrictions
HT 20 CLUTCH 1 LH

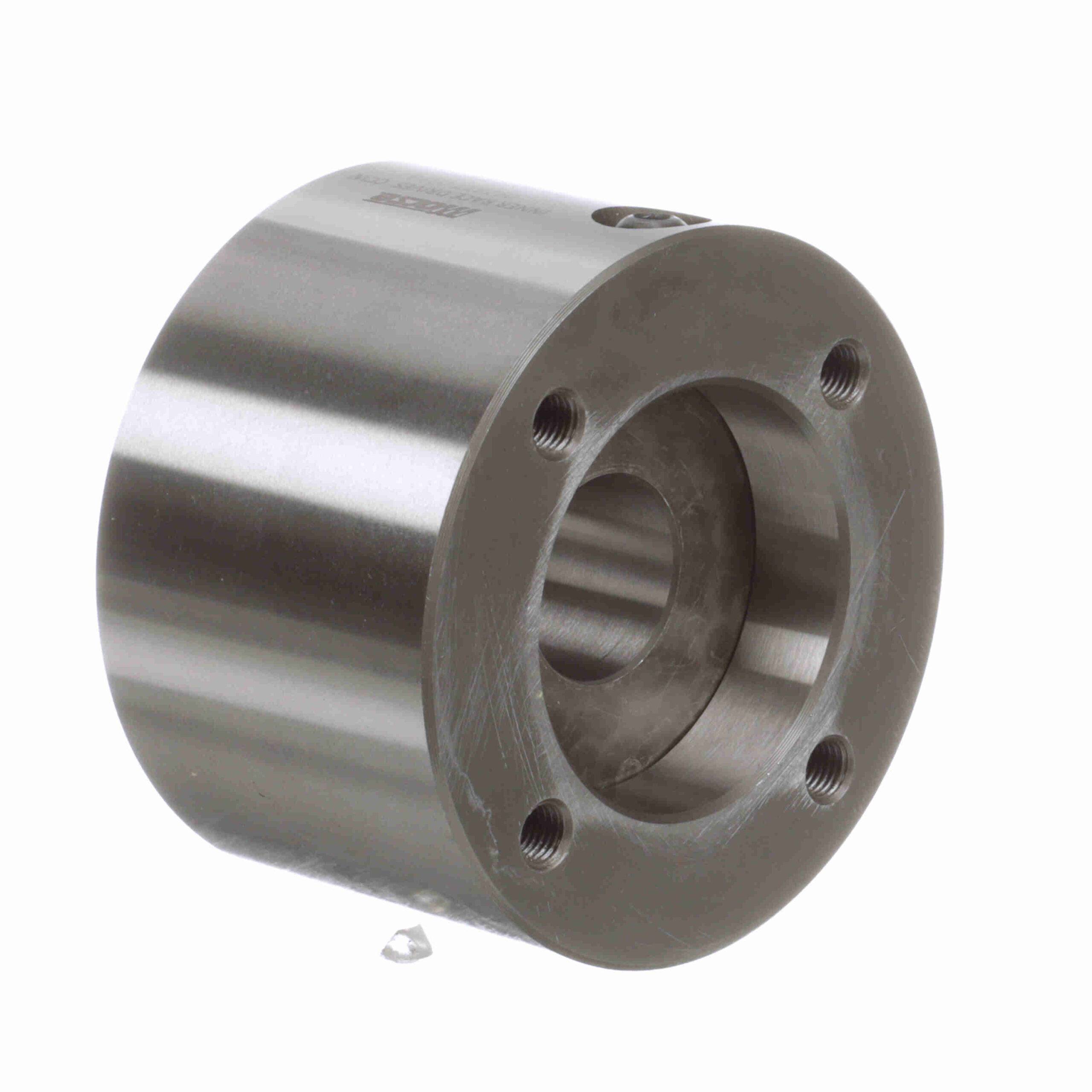

Morse HT Series CAM Clutch – HT 20 CLUTCH 1 LH
$3,717.29
Out of stock
Out of stock
| Model: | HT20 | Mounting Bolt Circle Diameter: | 2.75 |
|---|---|---|---|
| Lubrication Type: | Automatic Transmission Fluid - Must Be Added Before Use | Overall Diameter (in): | 3.5625 in |
| Overall Width (in): | 2.28125 in | Tapped Hole Thread Size: | 5/16-24 |
| Configuration: | LH | Rated Torque Capacity (ft.-lbs.): | 154 |
| Nominal Overrunning Drag (ft-lb): | 3.4 | Type: | CAM Clutches |
| Snap Ring Ball Brg (Unfurnished): | 304/205 | Useable depth of thread: | .375 |
| Number of Tapped Mounting Holes: | 4 | Bearing Counterbore Diameter: | 2.0470/2.0475 |
| Add'l Bearing Support Requirement: | No | Backstopping Clutch: | Yes |
| Overrunning Clutch: | Yes | Product Type: | HT Series |
| Bore Size (in): | 1 in | Indexing Clutch: | Yes |
| Bore (Min) (in): | .4875/.4900 in | Length Through Bore (in): | 1.6875 in |
| Outer Width (in): | 2.281 in | Inner Race Width (in): | 1.688 in |
| UPC: | 662288384946 | Weight: | 5.00 LB |
| Packaged Length: | 4.38 Inches | Packaged Width: | 3.75 Inches |
| Packaged Height: | 3.00 Inches | HTC: | 8483.60.4040 |
| Country of Origin: | Mexico |
