- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
CF 2 3/4 B

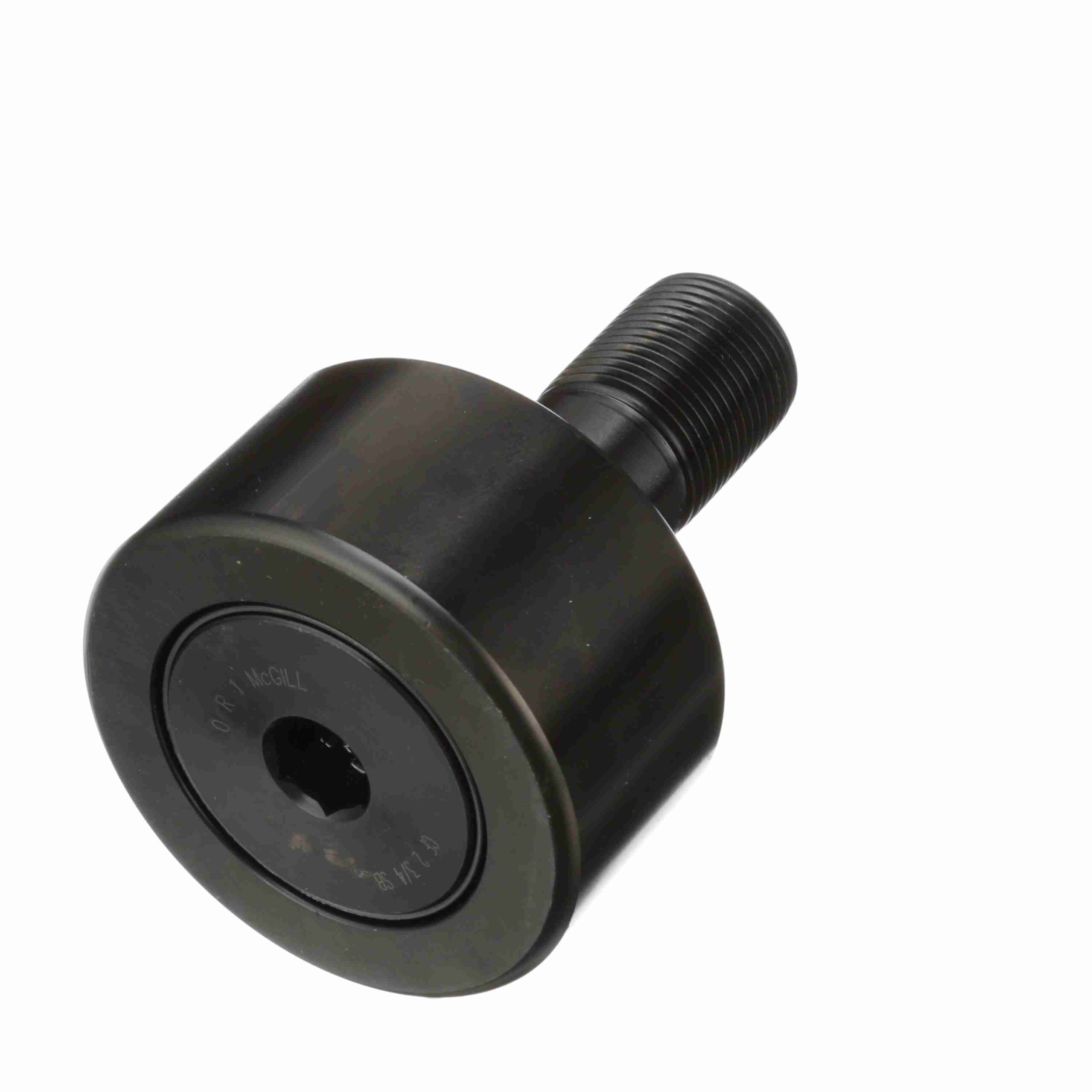

McGill CAMROL® Cylindrical Inch Cam Follower – Stud Mount Roller – Hex Hole – CF 2 3/4 B
$142.73
Out of stock
Out of stock
| Sealing: | Unsealed | Hex/Slot: | Hex Hole |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Dynamic Radial Rating: | 12 |
| Series: | Inch CAMROL® | Limiting Speed: | 1 |
| O.D. Configuration: | Cylindrical | Adjustment: | None |
| Material: | Bearing Steel, Black Oxide Finish | Static Load Rating: | 10 |
| Tolerance Class: | P0 Equivalent | Stud Type: | Standard Stud |
| Dynamic Load Rating (lb): | 11, 720 lb | Platform: | CAMROL® |
| Roller Shape: | Cylindrical | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 2, 250 lbs | UPC: | 726166038779 |
| Weight: | 2.93 LB | Packaged Length: | 2.81 Inches |
| Packaged Width: | 2.81 Inches | Packaged Height: | 3.93 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
