- Stud type cam follower
- Cylindrical outside diameter
- Needle rolling elements
- Hex hole
- LUBRI-DISC® seal
- Corrosion resistant
CF 1 5/8 SB CR

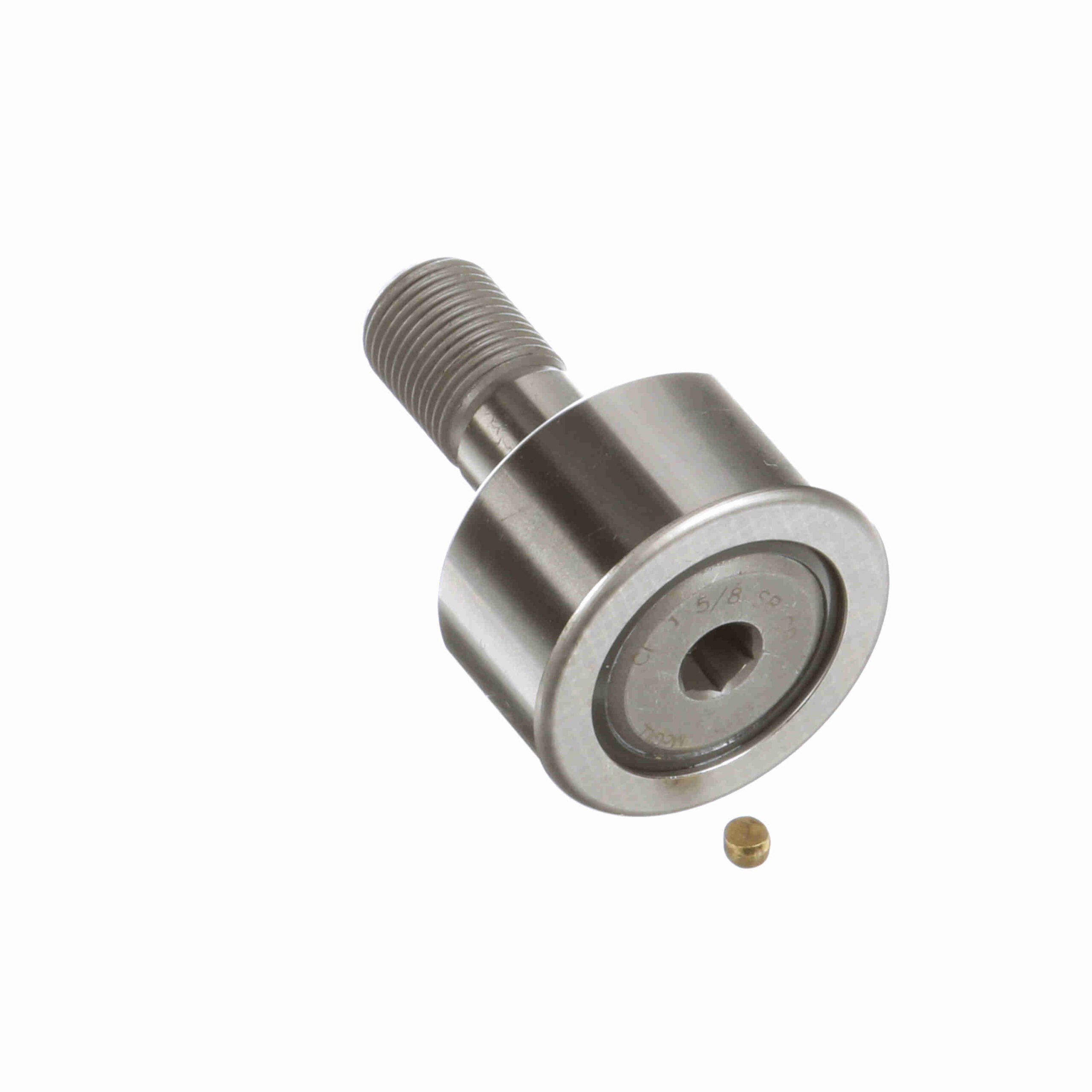

McGill CAMROL® Cylindrical 440C Stainless Steel CRES Cam Follower – Stud Mount Roller – Hex Hole – Sealed – CF 1 5/8 SB CR
$337.83
Out of stock
Out of stock
| Sealing: | Sealed | Limiting Speed: | 2 |
|---|---|---|---|
| Rolling Element: | Needle Roller - Full Complement | Adjustment: | None |
| Dynamic Radial Rating: | 4 | Series: | CRES CAMROL® |
| Hex/Slot: | Hex Hole | O.D. Configuration: | Cylindrical |
| Material: | 440C Stainless Steel | Tolerance Class: | P0 Equivalent |
| Stud Type: | Standard Stud | Platform: | CAMROL® |
| Static Load Rating: | 4 | Roller Shape: | Cylindrical |
| Dynamic Load Rating (lb): | 4, 350 lb | Ability to Relubricate: | Yes |
| Clamping Torque (in-lbf): | 650 lbs | UPC: | 726166118389 |
| Weight: | 0.56 LB | Packaged Length: | 1.68 Inches |
| Packaged Width: | 1.68 Inches | Packaged Height: | 2.62 Inches |
| HTC: | 8482.40.0000 | Country of Origin: | Mexico |
