- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
BK67X5/8

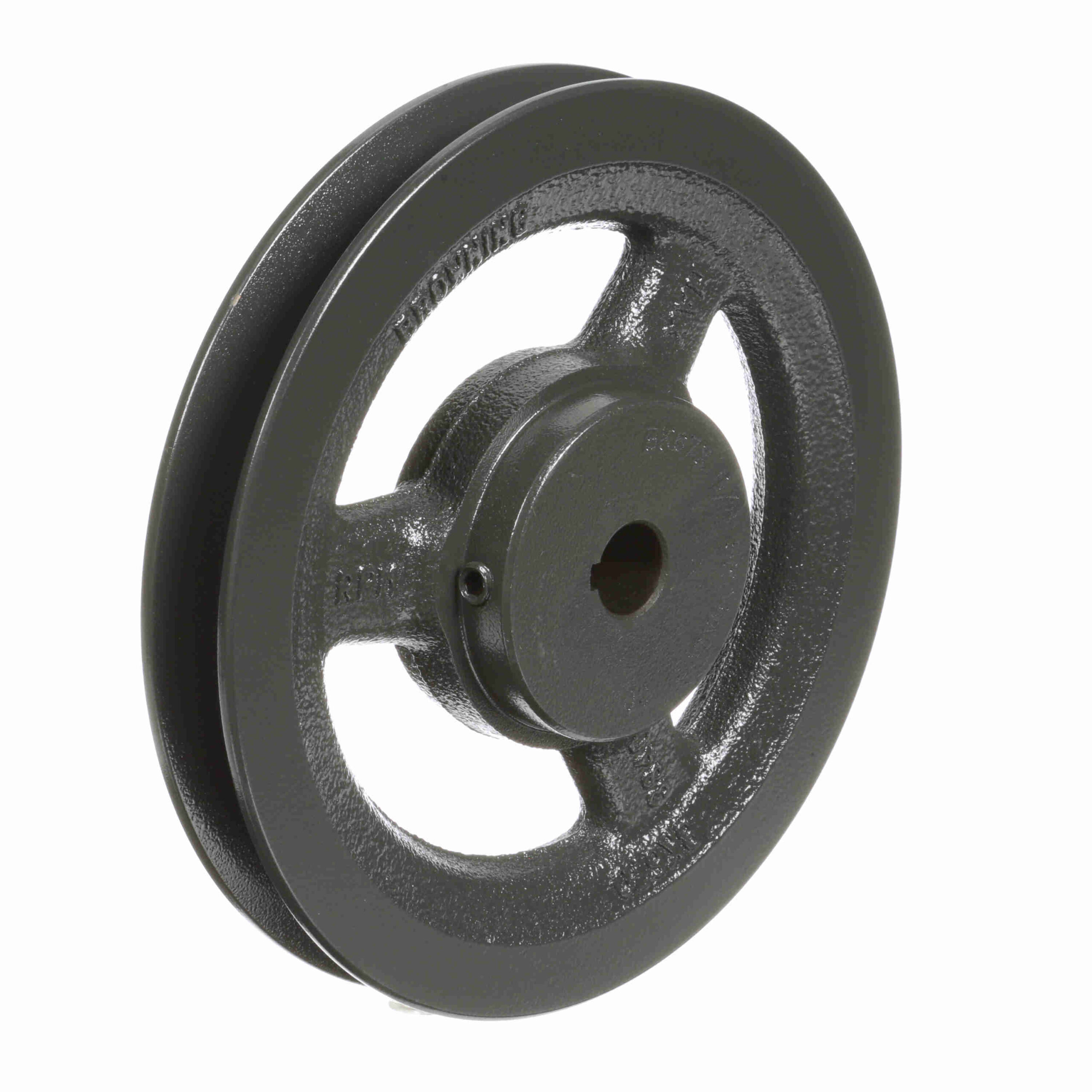

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – BK67X5/8
$296.20
Out of stock
Out of stock
| Pitch Diameter (B): | 6.4 | Number of Grooves: | 1 |
|---|---|---|---|
| Outside Diameter (in): | 6.45 in | Pitch Diameter (A): | 5.9 |
| Model Name: | BK_Sheave_Master2 | Material: | Cast Iron |
| Bore (in): | 0.625 in | Product Type: | FHP - Finished Bore |
| Belt Section: | 4L or A, 5L or B | Bore Type: | Finished with Keyway and SS |
| Overall Width (in): | 1.28125 | Pulley Construction: | Spoked |
| Face Width (in): | 0.875 | Keyway Size: | .1875 |
| Set Screw Tightening Torque (in-lb): | 165 | Set Screw Thread: | 5/16-18UNC-3AX1/2 |
| UPC: | 662289188444 | Weight: | 3.90 LB |
| Packaged Length: | 6.60 Inches | Packaged Width: | 6.40 Inches |
| Packaged Height: | 1.20 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
