- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
BK40X 1 1/8

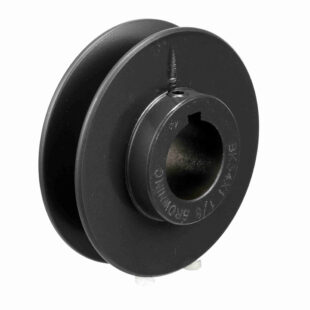

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – BK40X 1 1/8
$82.08
Out of stock
Out of stock
| Number of Grooves: | 1 | Pitch Diameter (A): | 3.4 |
|---|---|---|---|
| Material: | Cast Iron | Pitch Diameter (B): | 3.9 |
| Outside Diameter (in): | 3.95 in | Model Name: | BK_Sheave_Master2 |
| Bore (in): | 1.125 in | Product Type: | FHP - Finished Bore |
| Belt Section: | A, B | Bore Type: | Finished with Keyway and SS |
| Overall Width (in): | 1.28125 | Pulley Construction: | Webbed |
| Keyway Size: | .250 | Face Width (in): | 0.875 |
| Set Screw Thread: | 5/16-18UNC-3AX1/4 | Set Screw Tightening Torque (in-lb): | 90 |
| UPC: | 662289307944 | Weight: | 1.58 LB |
| Packaged Length: | 4.60 Inches | Packaged Width: | 4.90 Inches |
| Packaged Height: | 1.60 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
