- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Combination Groove – All Browning BK Sheaves permit the running of A, 4L, B& 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
BK120X 1 7/16

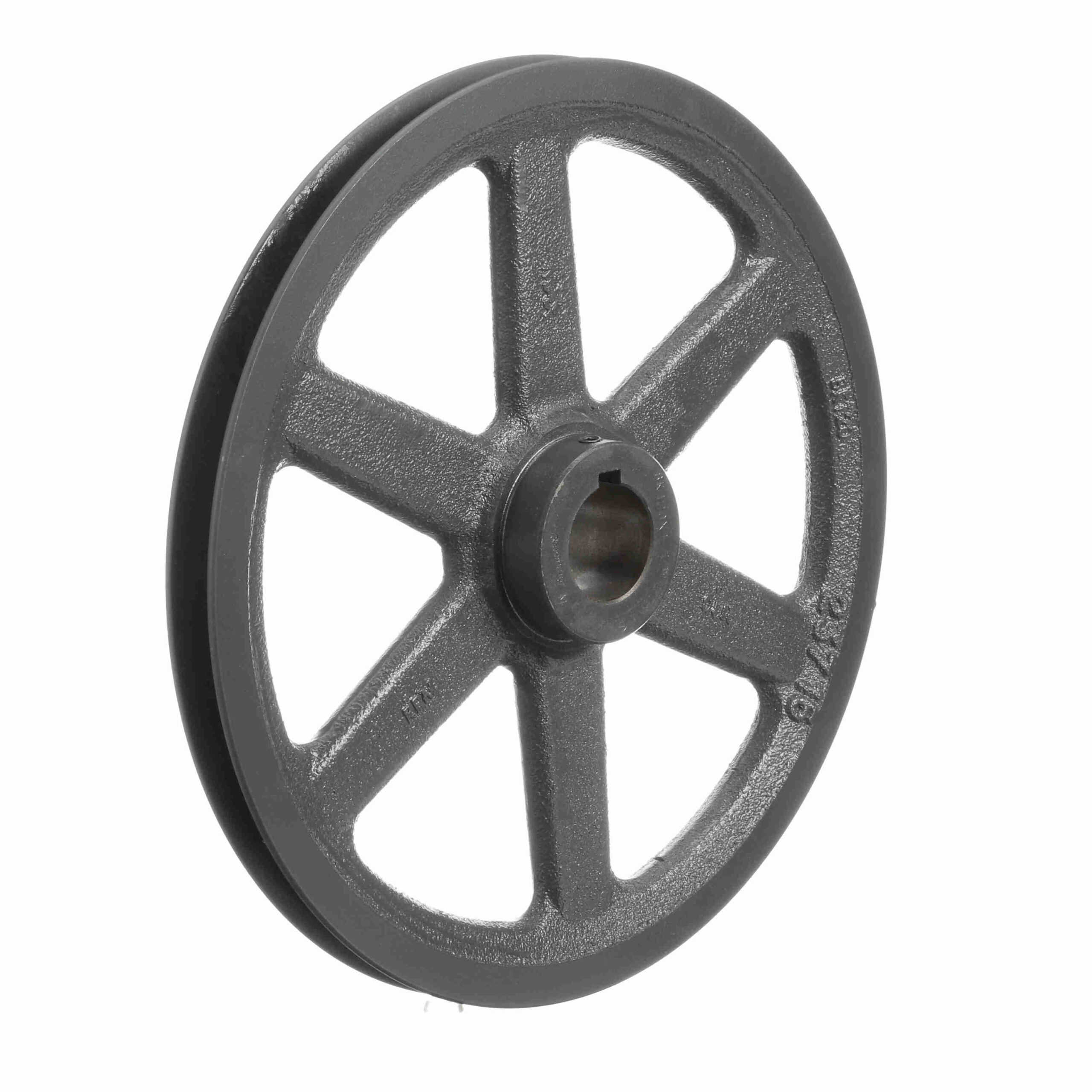

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – BK120X 1 7/16
$245.05
Out of stock
Out of stock
| Pitch Diameter (A): | 11.2 | Model Name: | BK_Sheave_Master2 |
|---|---|---|---|
| Material: | Cast Iron | Number of Grooves: | 1 |
| Outside Diameter (in): | 11.75 in | Pitch Diameter (B): | 11.7 |
| Bore (in): | 1.4375 in | Belt Section: | A, B |
| Product Type: | FHP - Finished Bore | Bore Type: | Finished with Keyway and SS |
| Face Width (in): | 0.875 | Keyway Size: | .375 |
| Pulley Construction: | Spoked | Overall Width (in): | 1.53125 |
| Set Screw Tightening Torque (in-lb): | 165 | Set Screw Thread: | 5/16-18UNC-3AX5/16 |
| UPC: | 662289228911 | Weight: | 9.46 LB |
| Packaged Length: | 12.40 Inches | Packaged Width: | 12.50 Inches |
| Packaged Height: | 1.70 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
