- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
3MVP40B54X 1 3/8

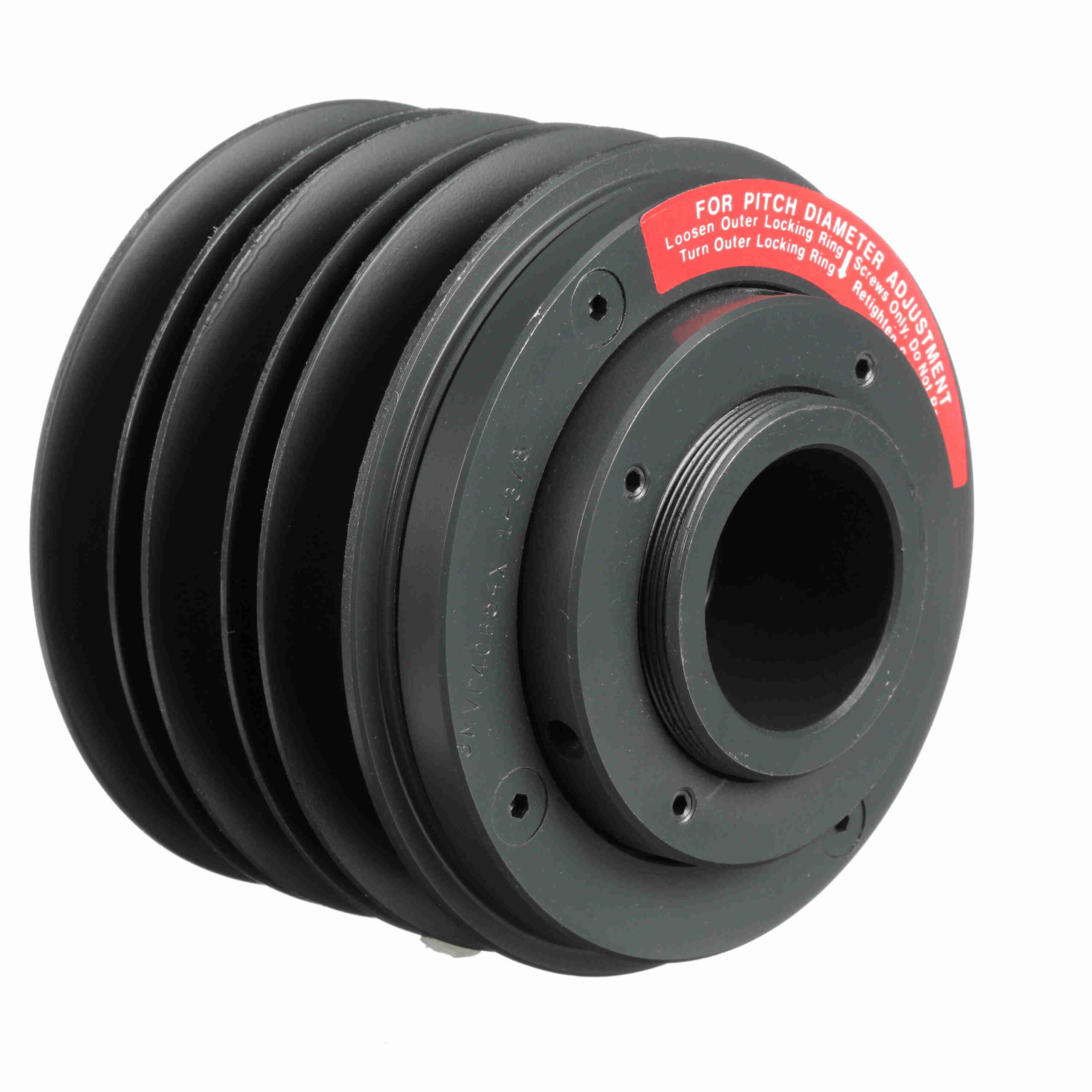

Browning 3 Groove Cast Iron Finished Bore Multiple Variable Pitch Sheave – 3MVP40B54X 1 3/8
$1,211.21
Out of stock
Out of stock
| Face Width (Max) (in): | 3.4375 in | Type of Bore: | Finished |
|---|---|---|---|
| Product Type: | MVP Sheaves | Pitch Diameter Range (A): | 5.2 - 4.1 |
| Outside Length (in): | 4.75 in | Pitch Diameter Range (B): | 5.7 - 4.3 |
| Outside Diameter (in): | 5.68 in | Face Width (Min) (in): | 3.0625 in |
| Number of Grooves: | 3 | Ring: | 3.8125 |
| Material: | Cast Iron | Bore (in): | 1.375 in |
| Belt Section: | A, B | Set Screw Thread: | 3/8-16 UNC-3AX3/8 |
| Set Screw Tightening Torque (in-lb): | 290 | UPC: | 662289284276 |
| Weight: | 16.00 LB | Packaged Length: | 7.00 Inches |
| Packaged Width: | 7.40 Inches | Packaged Height: | 5.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | United States of America |
