- Large Selection – MVP companion sheaves are offered in A/B, C, 5V & 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.
- Statically Balanced – All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
2MVP45B59X 1 5/8

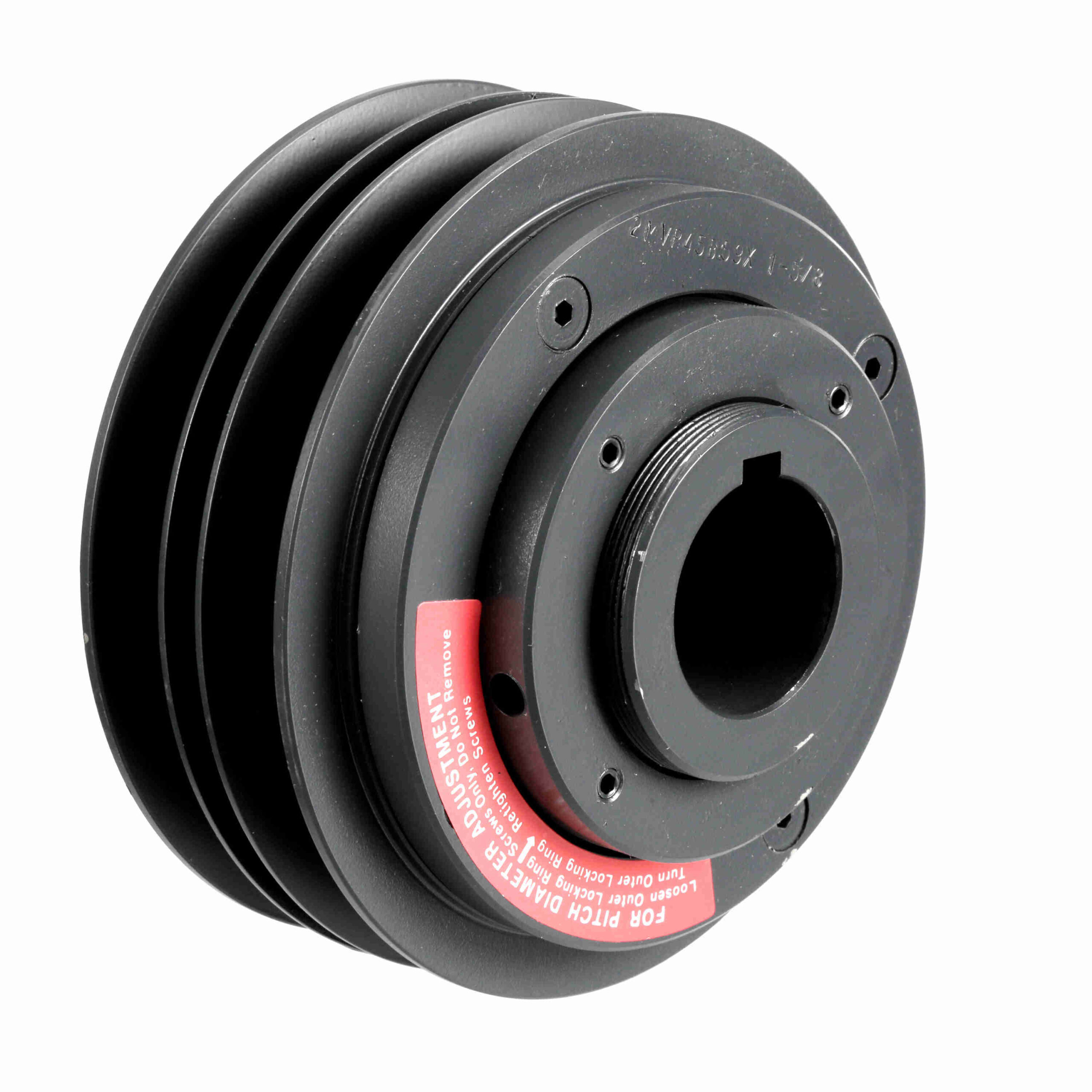

Browning 2 Groove Cast Iron Finished Bore Multiple Variable Pitch Sheave – 2MVP45B59X 1 5/8
$1,143.82
Out of stock
Out of stock
| Type of Bore: | Finished | Material: | Cast Iron |
|---|---|---|---|
| Face Width (Max) (in): | 2.3125 in | Outside Diameter (in): | 6.18 in |
| Ring: | 3.8125 | Product Type: | MVP Sheaves |
| Pitch Diameter Range (A): | 5.7 - 4.6 | Outside Length (in): | 3.625 in |
| Pitch Diameter Range (B): | 6.2 - 4.8 | Face Width (Min) (in): | 1.9375 in |
| Number of Grooves: | 2 | Belt Section: | A, B |
| Bore (in): | 1.625 in | Pulley Construction: | Solid |
| Bore Type: | Finished | Number of Hubs: | 1 |
| Keyway Size: | .375 x .1875 | Overall Width (in): | 3.625 |
| Set Screw Thread: | 3/8-16 UNC-3AX1/4 | Set Screw Tightening Torque (in-lb): | 150 |
| UPC: | 662289204342 | Weight: | 13.73 LB |
| Packaged Length: | 7.10 Inches | Packaged Width: | 7.30 Inches |
| Packaged Height: | 5.50 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | United States of America |
