- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
AK94X 1 3/16

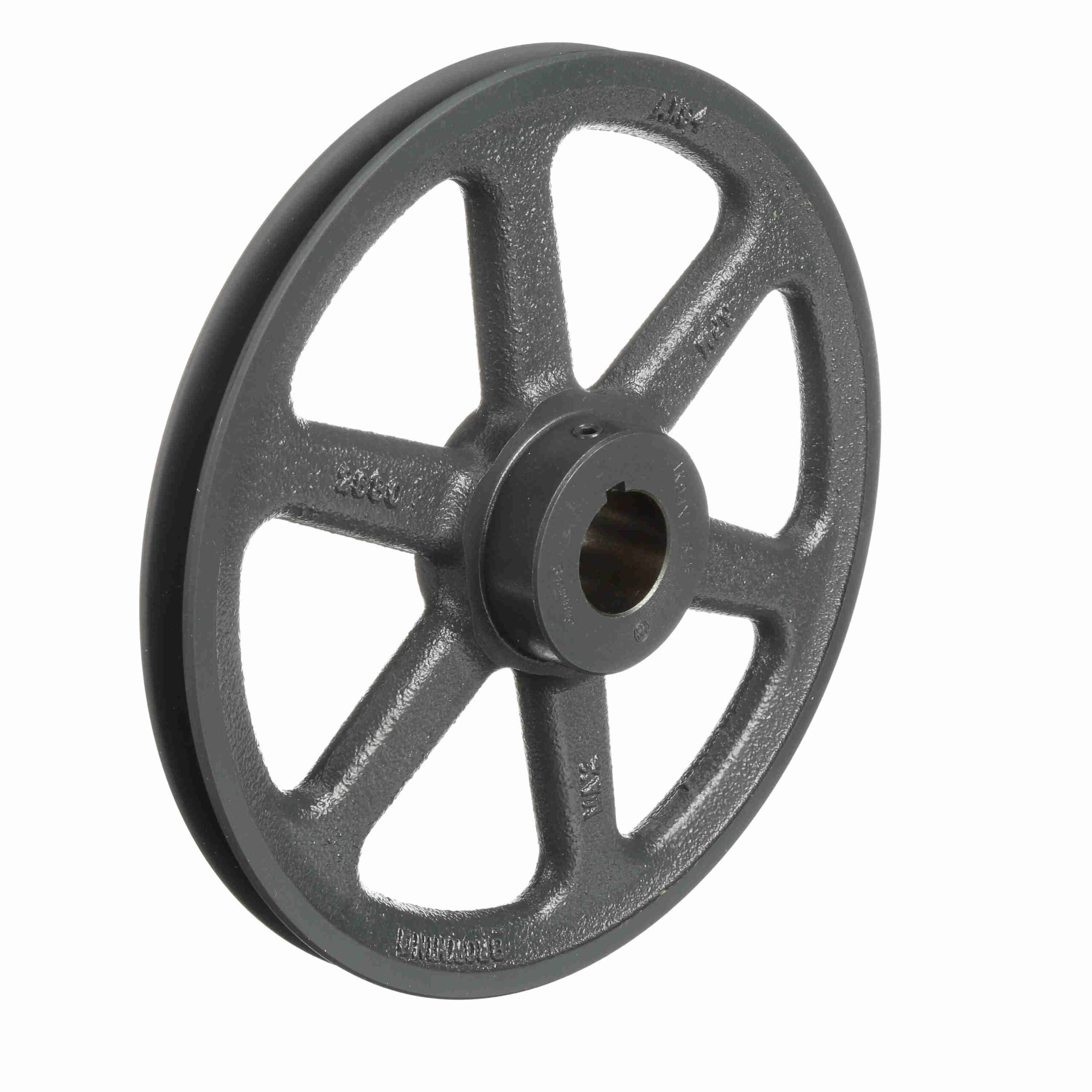

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK94X 1 3/16
$172.46
Out of stock
Out of stock
| Outside Diameter (in): | 9.25 in | Datum (3L): | 8.66 |
|---|---|---|---|
| Material: | Cast Iron | Pitch Diameter (A): | 9.2 |
| Number of Grooves: | 1 | Model Name: | AK_Sheave_Master3 |
| Bore (in): | 1.1875 in | Belt Section: | 3L, A |
| Product Type: | FHP - Finished Bore | Bore Type: | Finished with Keyway and SS |
| Pulley Construction: | Spoked | Keyway Size: | .250 |
| Face Width (in): | 0.75 | Overall Width (in): | 1.46875 |
| Set Screw Tightening Torque (in-lb): | 165 | Set Screw Thread: | 5/16-18UNC-3AX3/8 |
| UPC: | 662289237180 | Weight: | 5.96 LB |
| Packaged Length: | 10.40 Inches | Packaged Width: | 10.30 Inches |
| Packaged Height: | 1.70 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
