- Largest selection in the Industry – Browning offers the widest range of variable speed sheaves in the market today. One and two Groove product are available in 1.6″ to 8.5″ covering up to 25 horsepower.
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.
- The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.
- When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.
1VP65X 1 5/8

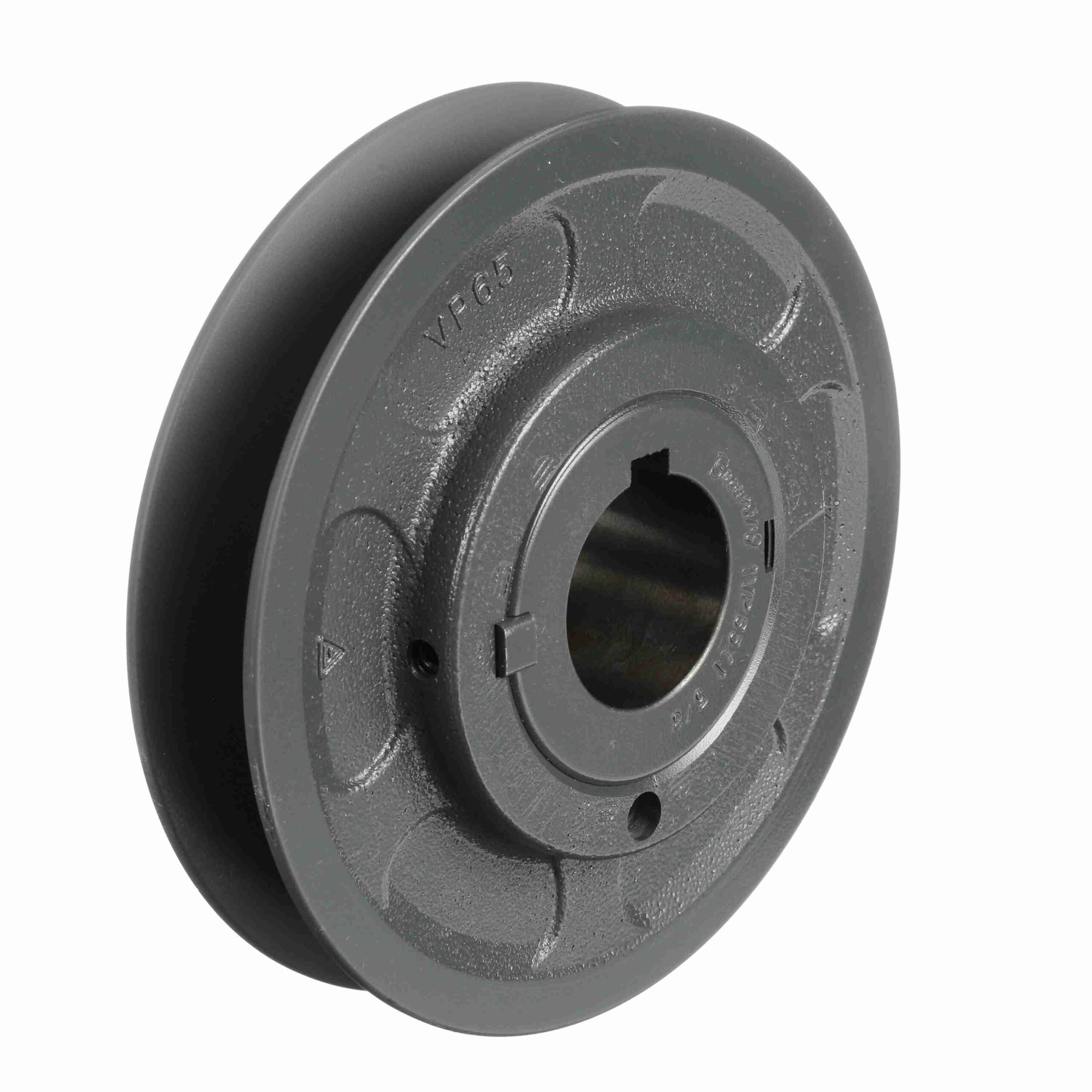

Browning 1 Groove Cast Iron Finish Bore FHP Variable Pitch Sheave – 1VP65X 1 5/8
$365.87
Out of stock
Out of stock
| Outside Diameter (in): | 6.5 in | Number of Grooves: | 1 |
|---|---|---|---|
| Type of Bore: | Finished | Material: | Cast Iron |
| Bore (in): | 1.625 in | Turns Open (B or 5L) (For Min PD): | 6 |
| Turns Open (5V) (For Min PD): | 6 | Turns Open (A or 4L) (For Min PD): | 5 |
| Belt Section: | 4L or A, 5L or B, 5V | Product Type: | FHP Variable Pitch Sheaves |
| Pitch Diameter (B or 5L) (Max): | 5.2 | Pitch Diameter (B or 5L) (Min): | 5.2 |
| UPC: | 662460422510 | Weight: | 7.07 LB |
| Packaged Length: | 6.70 Inches | Packaged Width: | 6.90 Inches |
| Packaged Height: | 2.40 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
