- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
AK20X1/2

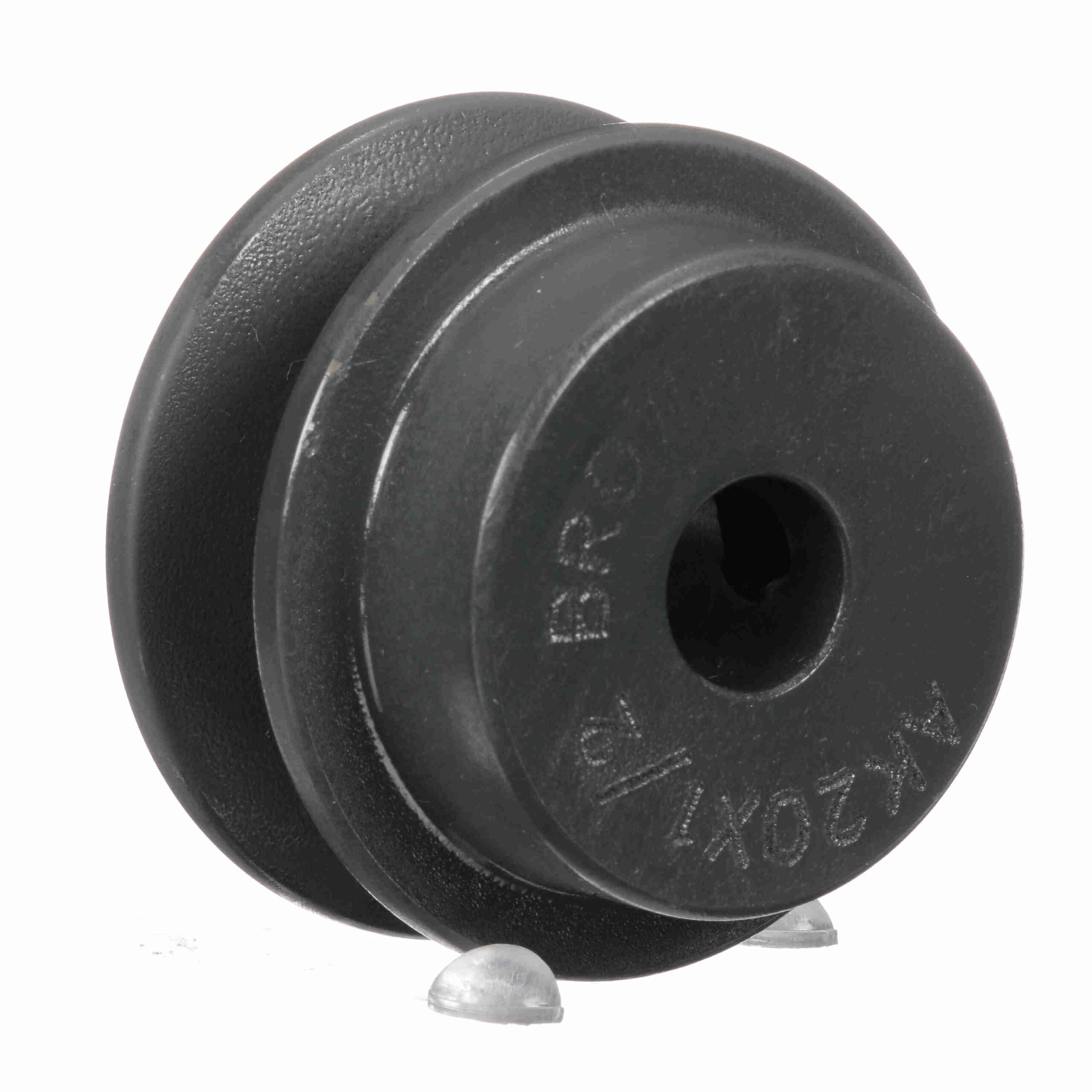

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK20X1/2
$48.16
Out of stock
Out of stock
| Model Name: | AK_Sheave_Master1 | Warning: | Do not use these "AK" sheaves with bores 1" and under with gripnotch belt ratings. |
|---|---|---|---|
| Pitch Diameter (A): | 2 | Material: | Cast Iron |
| Outside Diameter (in): | 2 in | Datum (3L): | 1.46 |
| Number of Grooves: | 1 | Bore (in): | 0.5 in |
| Product Type: | FHP - Finished Bore | Belt Section: | 4L or A, 3L |
| Bore Type: | Finished with No Keyway | Overall Width (in): | 1.09375 |
| Pulley Construction: | Plain | Face Width (in): | 0.6563 |
| Set Screw Thread: | 5/16-18UNC-3AX3/8 | Set Screw Tightening Torque (in-lb): | 165 |
| UPC: | 662289235919 | Weight: | 0.59 LB |
| Packaged Length: | 2.70 Inches | Packaged Width: | 2.80 Inches |
| Packaged Height: | 1.40 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
