- Largest Selection of finished bore sheaves of any other manufacturer – Browning offers finished bore sheaves in both A& B Combination (A/B) configuration. 1& 2 Grooves are available to meet any fractional horsepower requirement.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
AK25X3/4

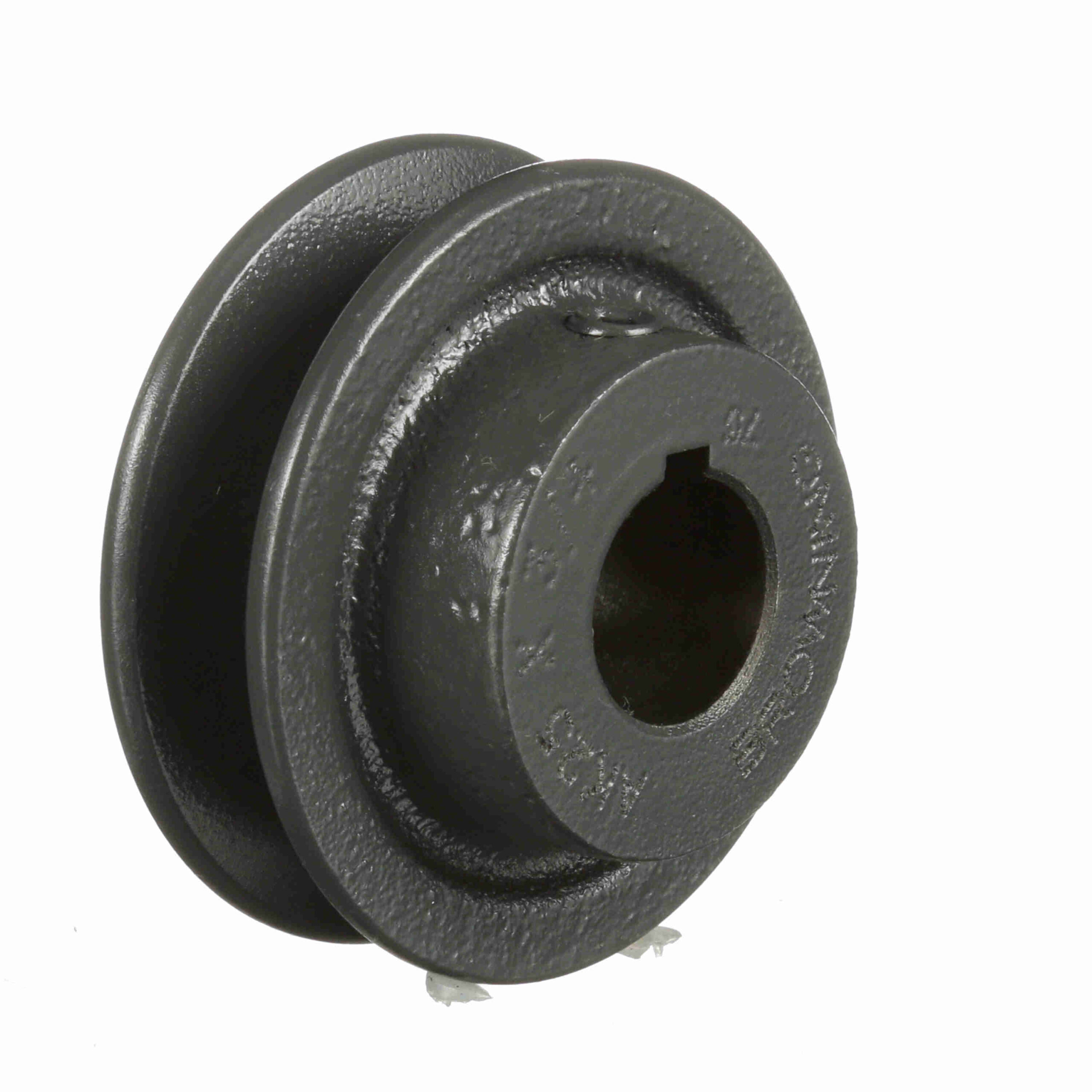

Browning 1 Groove Cast Iron FHP – Finished Bore Sheave – AK25X3/4
$38.64
Out of stock
Out of stock
| Material: | Cast Iron | Warning: | Do not use these "AK" sheaves with bores 1" and under with gripnotch belt ratings. |
|---|---|---|---|
| Number of Grooves: | 1 | Pitch Diameter (A): | 2.5 |
| Datum (3L): | 1.96 | Outside Diameter (in): | 2.5 in |
| Model Name: | AK_Sheave_Master1 | Bore (in): | 0.75 in |
| Product Type: | FHP - Finished Bore | Belt Section: | 4L or A, 3L |
| Bore Type: | Finished | Pitch Diameter (3L): | 1.9600 |
| Face Width (in): | 0.75 | Pulley Construction: | Solid |
| Keyway Size: | .1875 x .0938 | Overall Width (in): | 1.23 |
| Number of Hubs: | 1 | Set Screw Tightening Torque (in-lb): | 165 |
| Set Screw Thread: | 5/16-18UNC-3AX5/16 | UPC: | 662289176083 |
| Weight: | 0.70 LB | Packaged Length: | 2.60 Inches |
| Packaged Width: | 2.80 Inches | Packaged Height: | 1.50 Inches |
| HTC: | 8483.50.9040 | Country of Origin: | Mexico |
