- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
- Single lip contact seal and flinger
VF2E-218

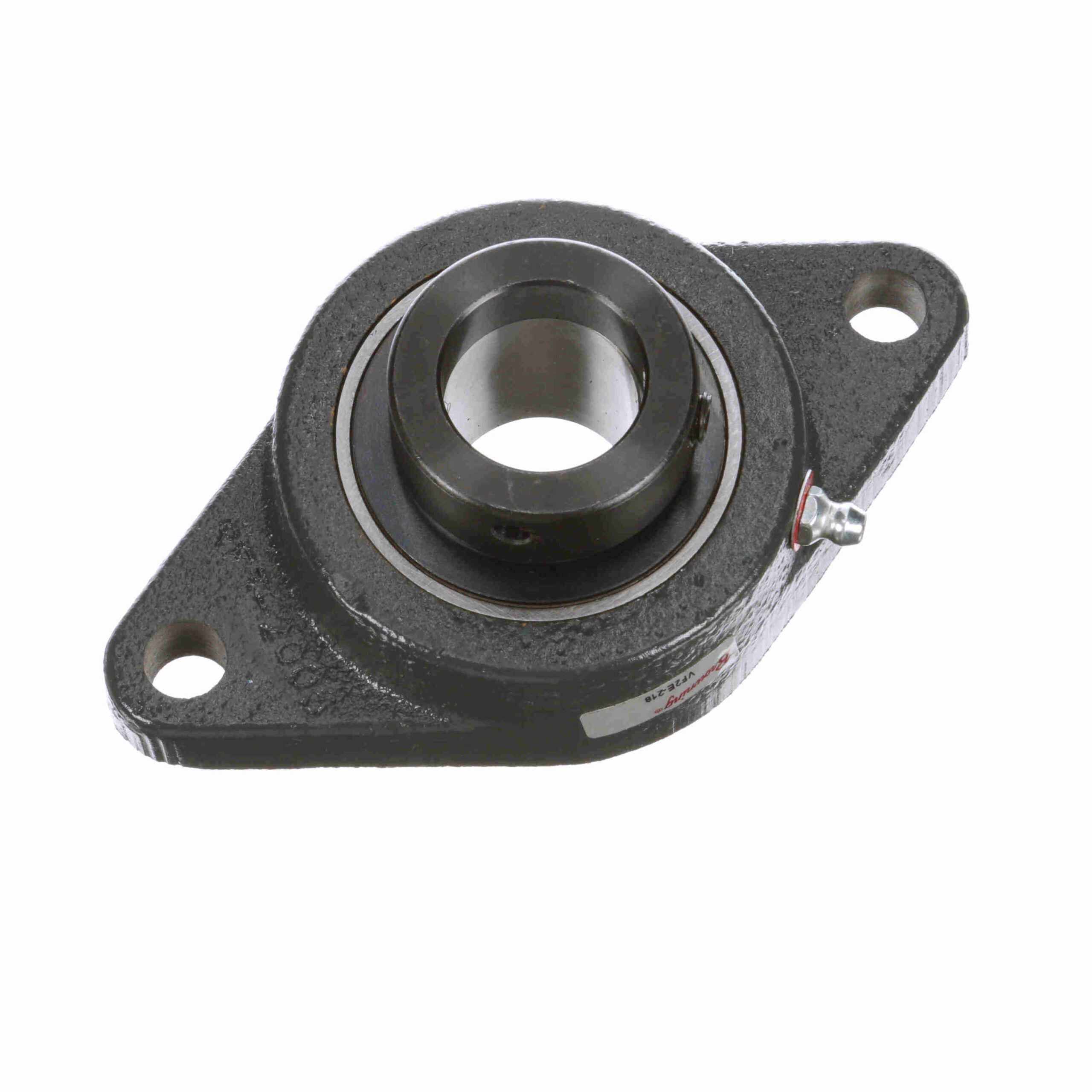

Browning Mounted Cast Iron Two Bolt Flange Ball Bearing – 52100 Bearing Steel, Black Oxided Inner – Eccentric Lock – VF2E-218
Out of stock
| Measure Units: | Inch | Seal Type: | Single Lip Contact Seal with Flinger |
|---|---|---|---|
| Insert Material: | 52100 Bearing Steel, Black Oxided Inner | Rolling Element: | Ball Bearing |
| Housing Base: | Semi-Solid | Pilot Configuration: | No Pilot |
| Bore Shape: | Straight | Misalignment: | ±1.5° Misalignment - Static Only |
| Radial Dynamic Load Capacity (lb): | 4, 381 lb | Housing Construction: | One Piece |
| Internal Clearance: | Standard | Misalignment Type: | Static Only |
| Retainer Material: | Molded fiber glass reinforced nylon | Bearing Insert Coating: | Black Oxide Coated Inner Ring |
| Replaceable Insert: | Yes | Outer Ring Land Profile: | Standard |
| End Cap: | No | Housing Color: | Gray |
| Radial Static Load Capacity (lb): | 2, 567 lb | Maximum Speed (RPM): | 4500 rpm |
| Housing Style: | Flange Block | Lubrication Type: | Lithium Complex NLGI 2 Grease |
| Housing Type: | Flange, Two Bolt | Housing Material: | Cast Iron |
| Retainer Type: | Ball Riding Retainer | Fixed vs. Expansion: | Fixed |
| Locking Type: | Eccentric | Duty/Series: | Standard Duty |
| Insert Number: | VE-218 | Inner Race Heat Treat Method: | Zone-Hardened |
| Maximum Operating Temperature (F): | 200 °F | Ability to Relubricate: | Yes |
| UPC: | 662289520787 | Weight: | 2.54 LB |
| Packaged Length: | 6.1 Inches | Packaged Width: | 3.7 Inches |
| Packaged Height: | 1.8 Inches | HTC: | 8483.20.4040 |
| Country of Origin: | Mexico |
