- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80R40

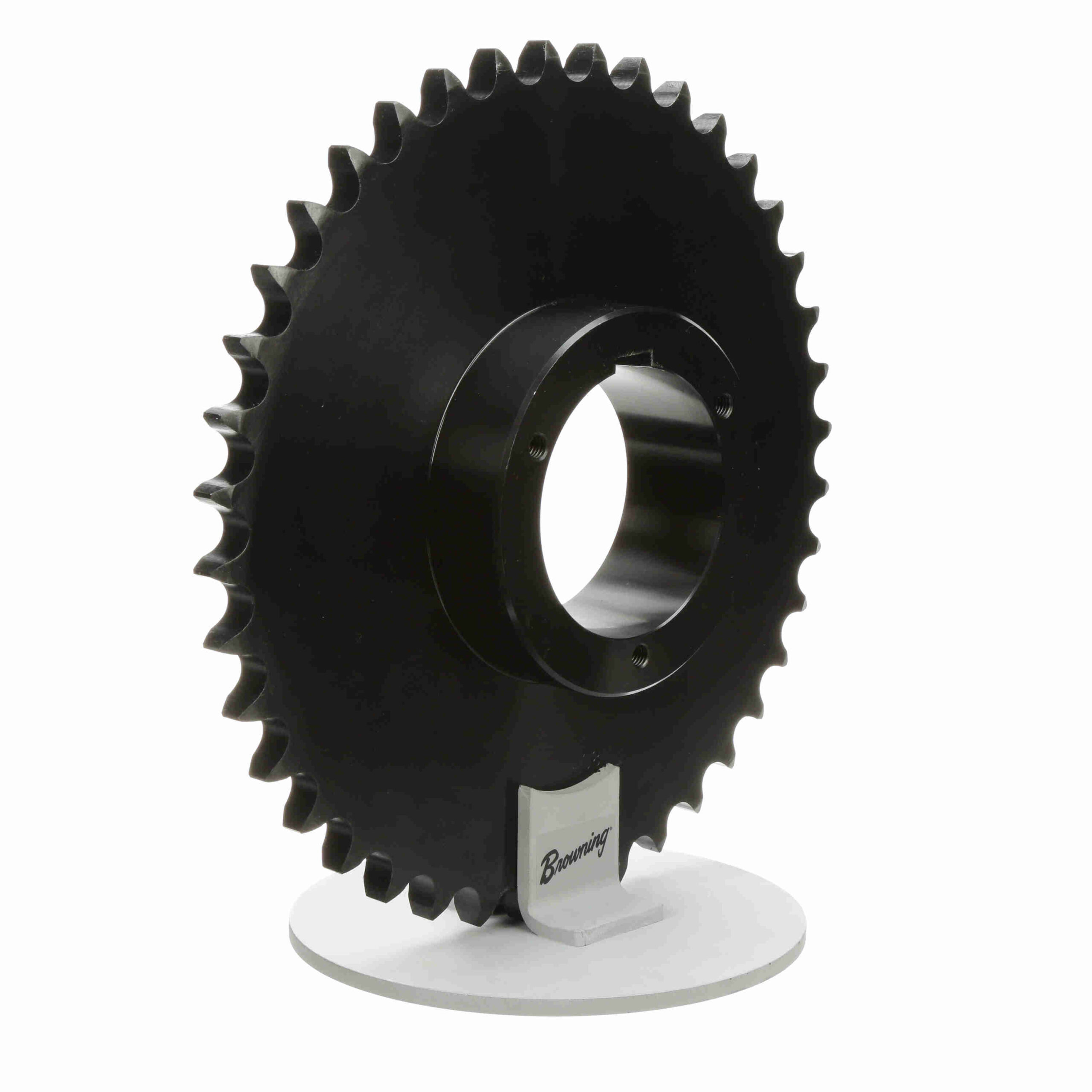

Browning Steel Bushed Bore Roller Chain Sprocket – 80R40
$573.50
Availability: 6 in stock
Availability: 6 in stock
| Bushing Used: | Split Taper | Bore (Min) (in): | 1.125 in |
|---|---|---|---|
| Bore (Max) (in): | 3.75 in | Product Type: | Bushed Roller Chain Sprocket |
| Material: | Steel | Number of teeth: | 40 |
| Chain Pitch (in): | 1 in | Chain Used: | No. 80, 1 in. Pitch ANSI Chain |
| Pitch Diameter (in): | 12.745 in | Overall Length (in): | 3.15625 in |
| Outside Diameter (in): | 13.306 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 5.375 in |
| Minimum Bore (in): | 1.125 | Maximum Bore (in): | 3.75 |
| Pitch Type: | Single | Width Across Tooth Sets: | 0.575 |
| Number of Hubs: | 1 | UPC: | 662289246977 |
| Weight: | 23.94 LB | Packaged Length: | 13.90 Inches |
| Packaged Width: | 14.10 Inches | Packaged Height: | 2.40 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
