- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80Q72

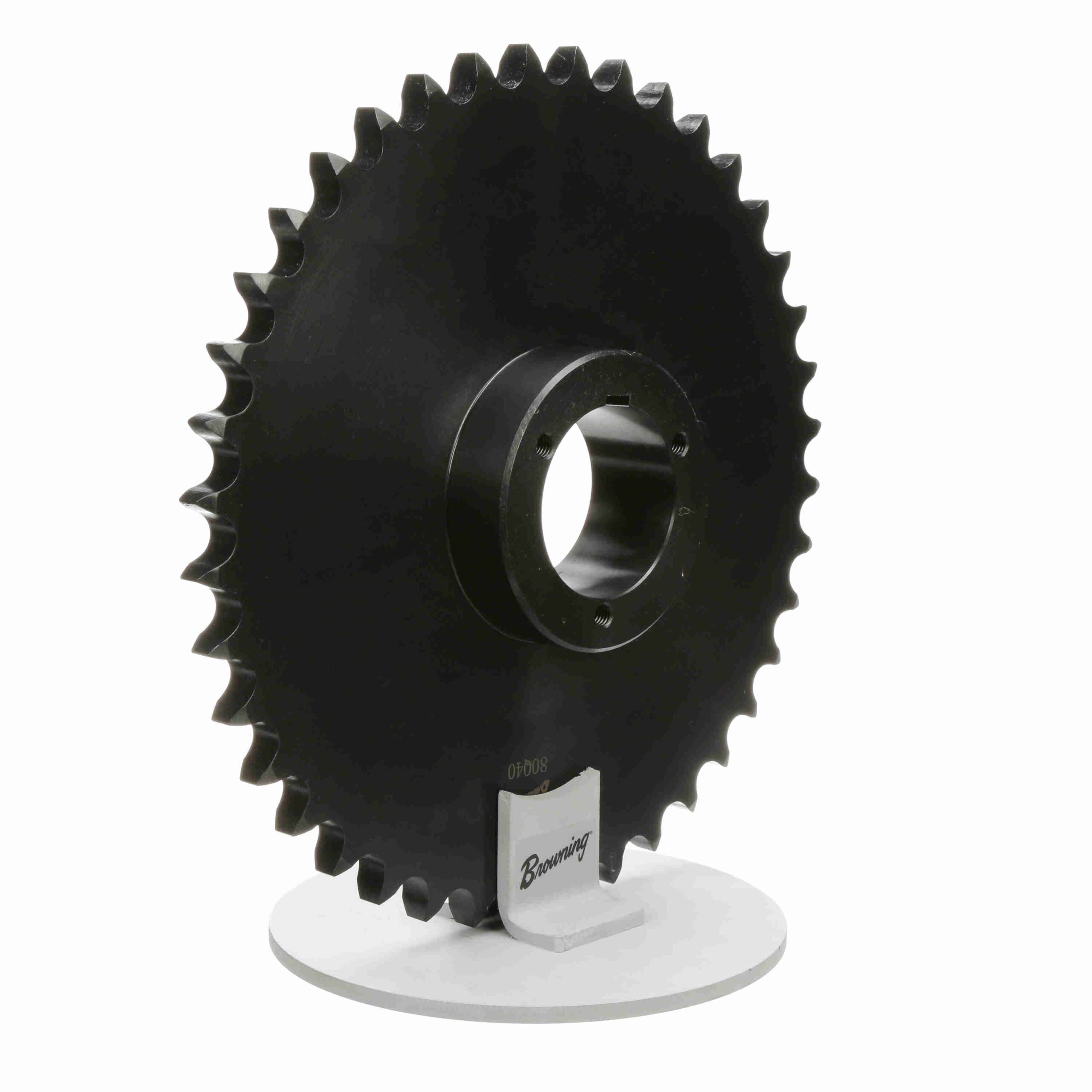

Browning Steel Bushed Bore Roller Chain Sprocket – 80Q72
Out of stock
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Product Type: | Bushed Roller Chain Sprocket |
|---|---|---|---|
| Bore (Min) (in): | 0.75 in | Chain Pitch (in): | 1 in |
| Pitch Diameter (in): | 22.926 in | Bore (Max) (in): | 2.6875 in |
| Bushing Used: | Split Taper | Material: | Steel |
| Number of teeth: | 72 | Outside Diameter (in): | 23.515 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.828125 in |
| Number of Strands/Width: | 1 | Hub Diameter (in): | 4.125 in |
| Maximum Bore (in): | 2.6875 | Minimum Bore (in): | 0.75 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Width Across Tooth Sets: | 0.575 | UPC: | 662289307111 |
| Weight: | 74.20 LB | Packaged Length: | 23.46 Inches |
| Packaged Width: | 23.46 Inches | Packaged Height: | 2.78 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
