- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
D50P16

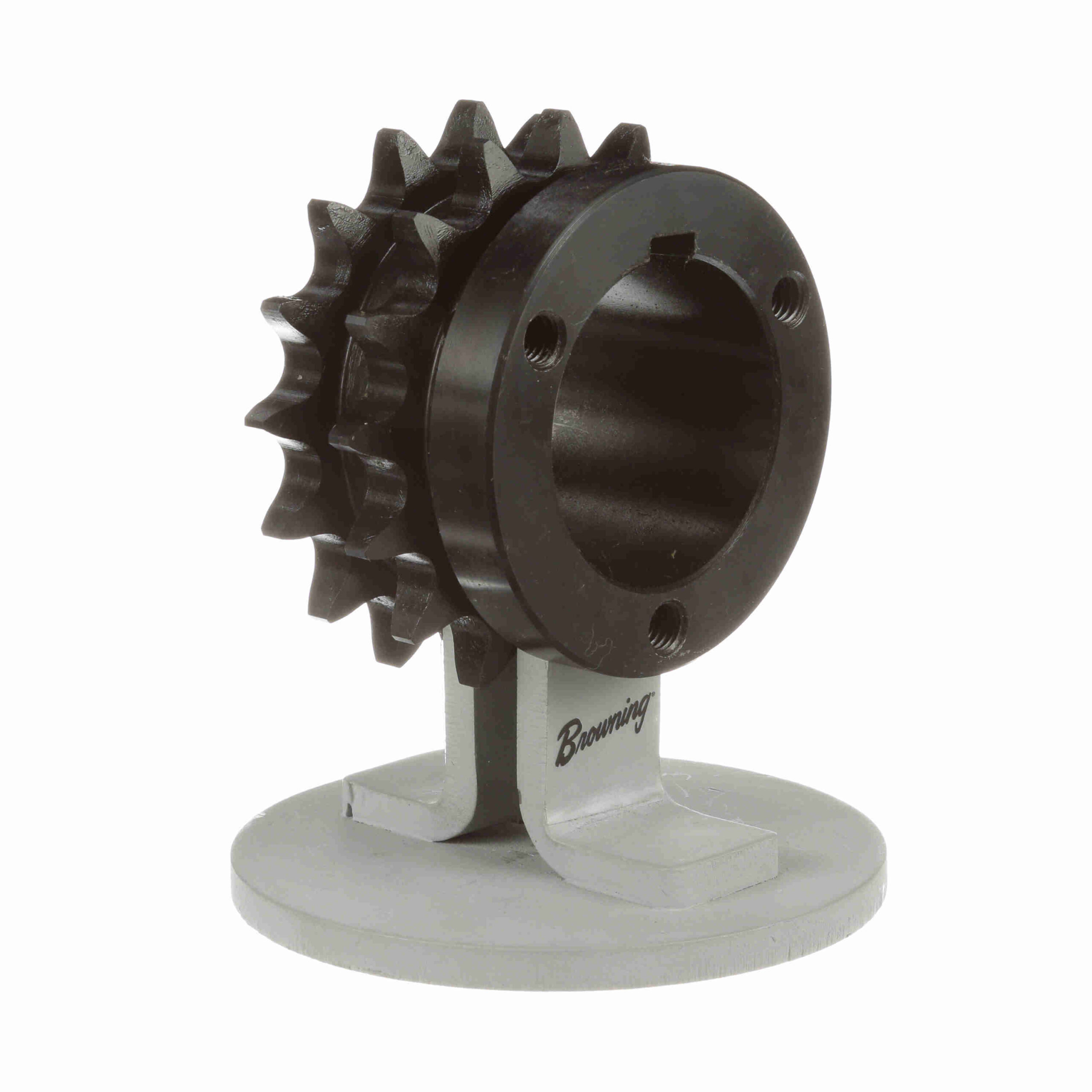

Browning Steel Bushed Bore Roller Chain Sprocket – D50P16
$358.66
Availability: 1 in stock
Availability: 1 in stock
| Material: | Steel, Hardened Teeth | Bore (Max) (in): | 1.75 in |
|---|---|---|---|
| Pitch Diameter (in): | 3.204 in | Bushing Used: | Split Taper |
| Number of teeth: | 16 | Bore (Min) (in): | 0.5 in |
| Chain Used: | No. 50, 5/8 in. Pitch ANSI Chain | Chain Pitch (in): | 0.625 in |
| Product Type: | Bushed Roller Chain Sprocket | Outside Diameter (in): | 3.517 in |
| Bore Type: | Bushed Bore | Overall Length (in): | 2.640625 in |
| Number of Strands/Width: | 2 | Hub Diameter (in): | 3 in |
| Minimum Bore (in): | 0.5 | Maximum Bore (in): | 1.75 |
| Width Across Tooth Sets: | 1.045 | Number of Hubs: | 1 |
| Pitch Type: | Single | UPC: | 662289129058 |
| Weight: | 1.86 LB | Packaged Length: | 4.40 Inches |
| Packaged Width: | 4.50 Inches | Packaged Height: | 2.20 Inches |
| HTC: | 8483.90.1050 | Country of Origin: | China |
