- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Easy Installation and removal
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost – Drive Sizes up to 30 teeth on 35 through 160 Chain
80Q37

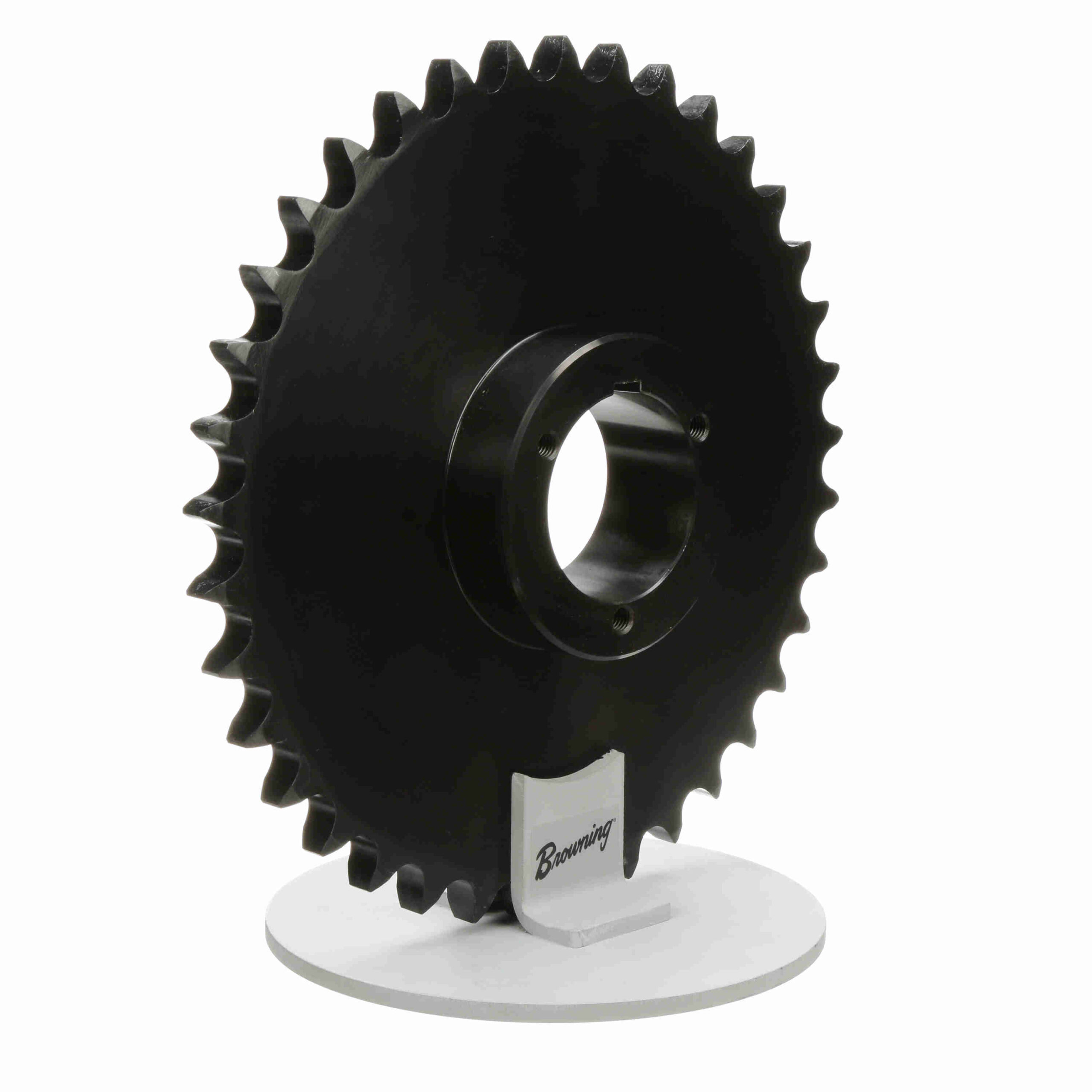

Browning Steel Bushed Bore Roller Chain Sprocket – 80Q37
$634.35
Out of stock
Out of stock
| Bore (Max) (in): | 2.6875 in | Chain Pitch (in): | 1 in |
|---|---|---|---|
| Material: | Steel | Bore (Min) (in): | 0.75 in |
| Number of teeth: | 37 | Product Type: | Bushed Roller Chain Sprocket |
| Bushing Used: | Split Taper | Pitch Diameter (in): | 11.792 in |
| Chain Used: | No. 80, 1 in. Pitch ANSI Chain | Overall Length (in): | 2.828125 in |
| Outside Diameter (in): | 12.349 in | Bore Type: | Bushed Bore |
| Number of Strands/Width: | 1 | Tooth Width (in): | 0.575 in |
| Length Through Bore (in): | 2.5 in | Hub Diameter (in): | 4.125 in |
| Minimum Bore (in): | 0.75 | Maximum Bore (in): | 2.6875 |
| Pitch Type: | Single | Number of Hubs: | 1 |
| Hub Projection (in): | 2.015 | Width Across Tooth Sets: | 0.575 |
| Hardened Teeth: | No | Overall Width (in): | 2.828125 in |
| UPC: | 662289196869 | Weight: | 20.20 LB |
| Packaged Length: | 12.35 Inches | Packaged Width: | 12.35 Inches |
| Packaged Height: | 2.78 Inches | HTC: | 8483.90.1050 |
| Country of Origin: | China |
