- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
80HR 100FT

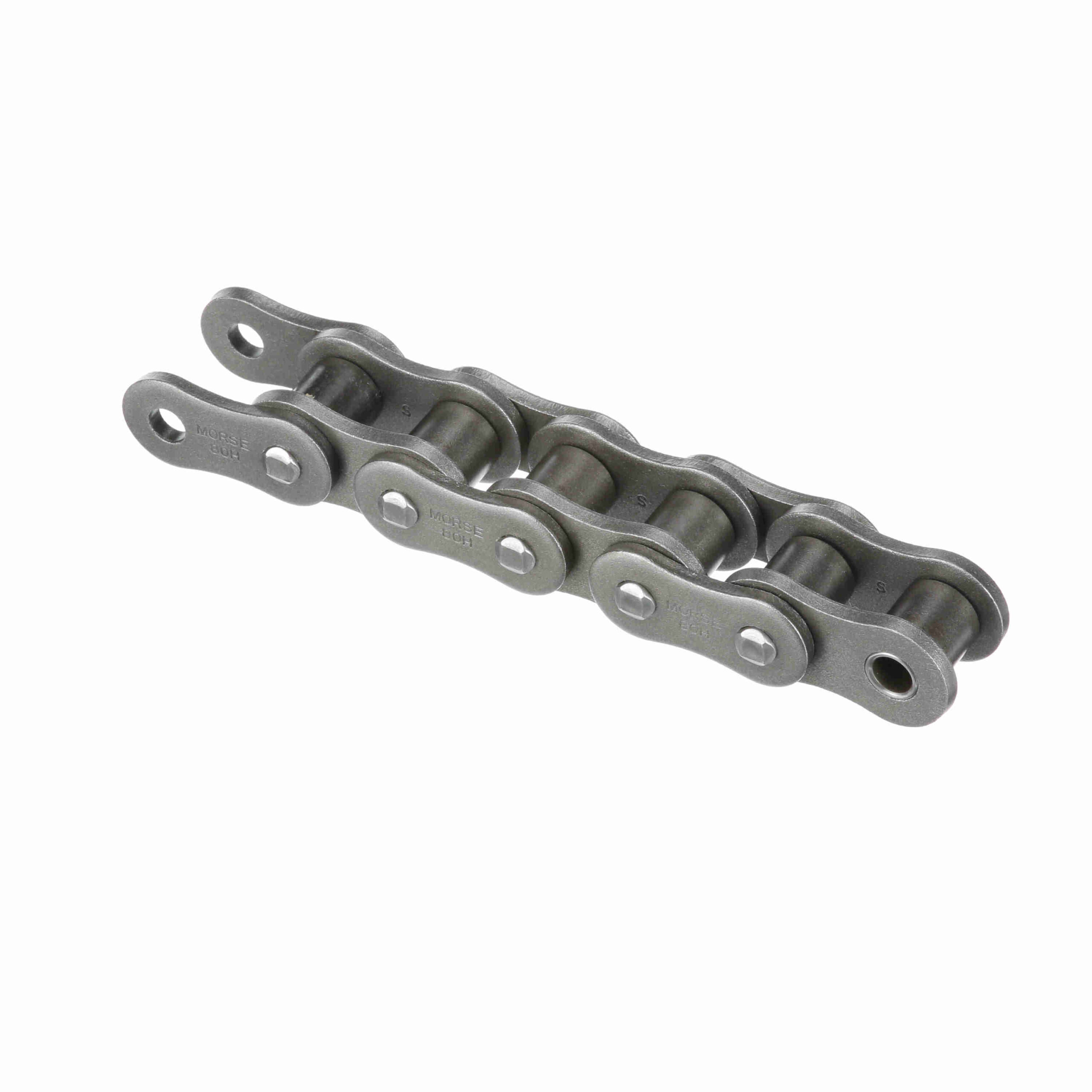

Morse Heavy Riveted Roller Chain – 80HR 100FT
$40.04
Out of stock
Out of stock
| Centerline to Outside of cotter Pin: | 0.804 | Number of Connecting Links Included: | 1 |
|---|---|---|---|
| Inside Plate Height: | 0.934 | Chain Size: | 80 |
| Material: | Steel | Roller Width (in): | 0.625 in |
| Average Ultimate Tensile Strength (psi): | 14, 500 | Roller Diameter (in): | 0.625 in |
| Centerline to Opposite cotter Pin Side: | 0.7 | Width Over Pins/Total Width: | 1.4 |
| Plate Thickness: | 0.156 | Number of Strands/Width: | 1 |
| Side Plate Cfg.: | Hourglass | Chain Construction: | Riveted |
| Pin Diameter (in): | 0.312 in | Total Length: | 100 FT ft |
| Chain Pitch (in): | 1 in | Chain Type: | Heavy |
| Product Type: | Roller Chain | Coating: | Uncoated |
| Measurement System: | Imperial | Standard Met: | ANSI B29.1 |
| Pin Length - Riveted: | 1.4 | UPC: | 662288866343 |
| Weight: | 2.03 LB | HTC: | 7315.11.0060 |
| Country of Origin: | Taiwan, Republic of China |
