- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available from Stock
80 C/L C/P S/F

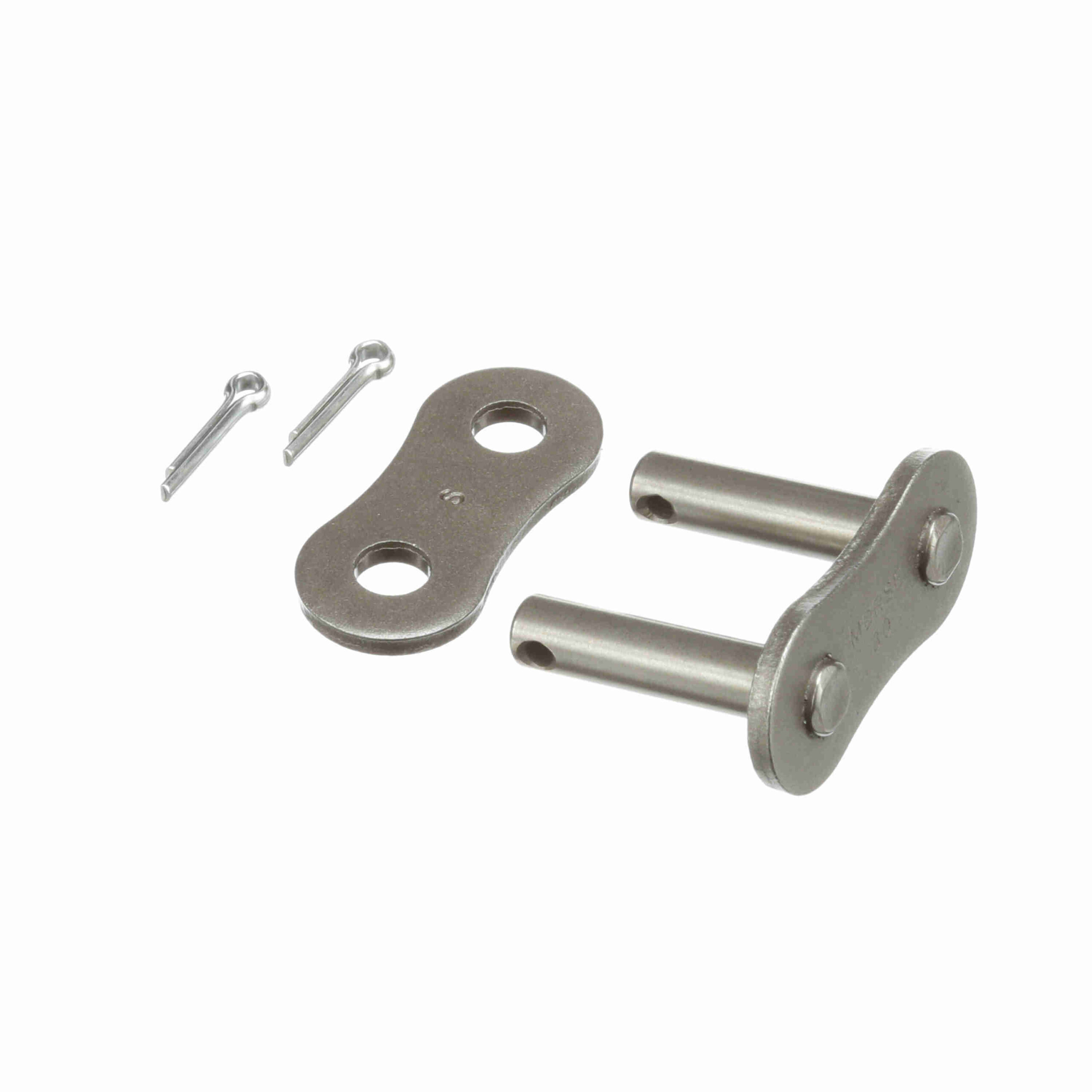

Morse Standard Roller Chain Cotter Pin Connecting Link – 80 C/L C/P S/F
$5.24
Out of stock
Out of stock
| Roller Width (in): | 0.625 in | Material: | Steel |
|---|---|---|---|
| Pin Diameter (in): | 0.312 in | Centerline to Outside of cotter Pin: | 0.741 |
| Side Plate Cfg.: | Hourglass | Plate Thickness: | 0.125 |
| Centerline to Opposite cotter Pin Side: | 0.637 | Connecting Link - Slip Fit: | Cotter |
| Number of Strands/Width: | 1 | Roller Diameter (in): | 0.625 in |
| Number of Connecting Links Included: | 20 | Width Over Pins/Total Width: | 1.274 |
| Inside Plate Height: | 0.934 | Chain Size: | 80 |
| Average Ultimate Tensile Strength (psi): | 14, 500 | Total Length: | 10 FT ft |
| Chain Type: | Standard | Chain Pitch (in): | 1 in |
| Product Type: | Roller Chain | Chain Construction: | Cottered |
| Link Type: | Connecting Link | UPC: | 662288468370 |
| Weight: | 0.55 LB | Packaged Length: | 3.20 Inches |
| Packaged Width: | 2.55 Inches | Packaged Height: | 0.95 Inches |
| HTC: | 7315.19.0000 | Country of Origin: | Taiwan, Republic of China |
