- Unmatched Quality and Performance in Morse Brand Chain
- Far exceeds ANSI performance standards. Rigid manufacturing processes result in a fully-featured chain.
- Available in package quantities or via quick-turnaround cut-to-length
80-3R 10FT

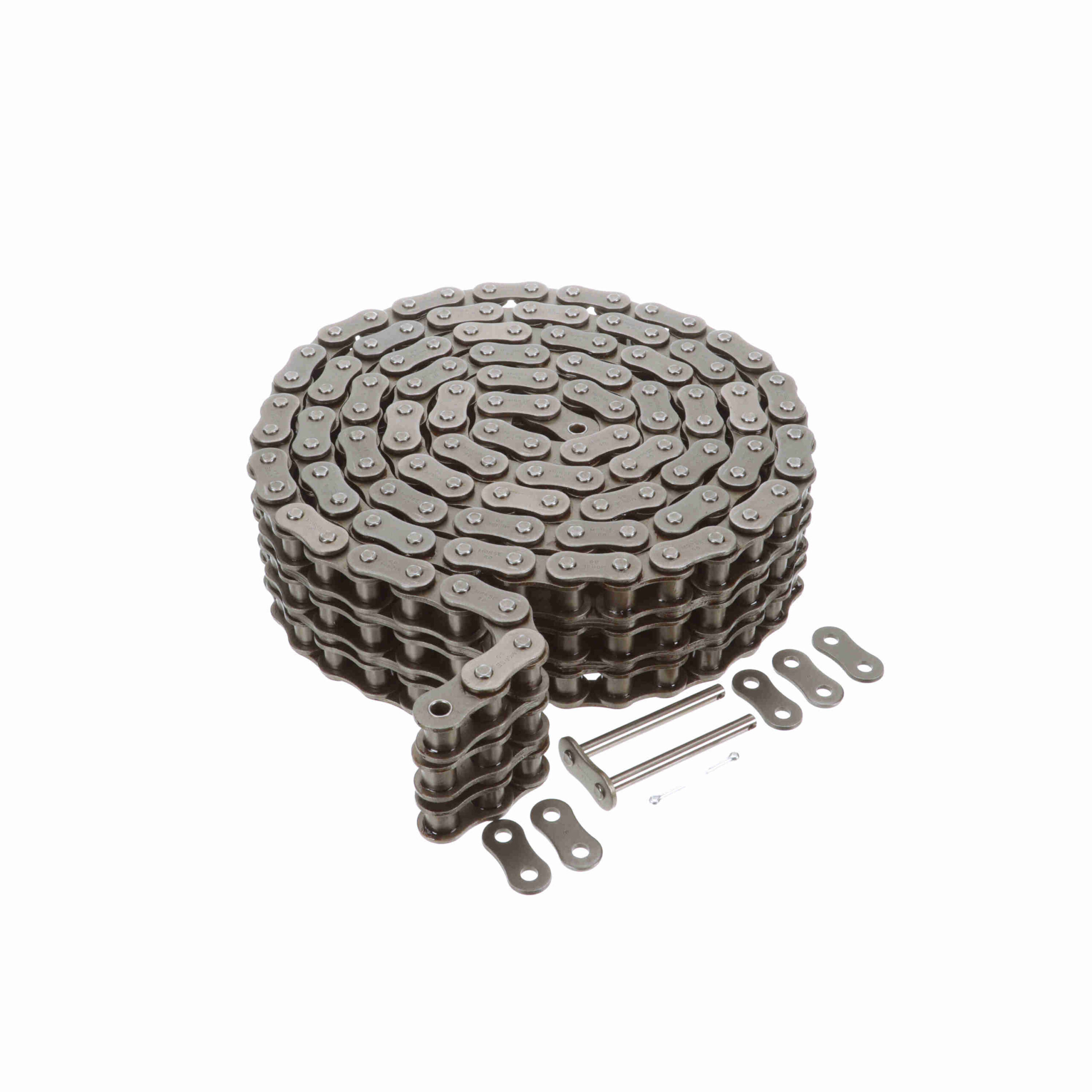

Morse Standard Riveted Roller Chain – 80-3R 10FT
$107.00
Out of stock
Out of stock
| Number of Strands/Width: | 3 | Pin Diameter (in): | 0.312 in |
|---|---|---|---|
| Center Plates: | Loose Fit, Press Fit Optional | Average Ultimate Tensile Strength (psi): | 43, 500 |
| Inside Plate Height: | 0.934 | Centerline to Outside of cotter Pin: | 1.905 |
| Material: | Steel | Roller Diameter (in): | 0.625 in |
| Chain Construction: | Riveted | Plate Thickness: | 0.125 |
| Width Over Pins/Total Width: | 3.585 | Number of Connecting Links Included: | 1 |
| Chain Size: | 80 | Roller Width (in): | 0.625 in |
| Centerline to Opposite cotter Pin Side: | 1.792 | Side Plate Cfg.: | Hourglass |
| Chain Pitch (in): | 1 in | Product Type: | Roller Chain |
| Chain Type: | Standard | Coating: | Uncoated |
| Total Length: | 10 FT ft | Standard Met: | ANSI B29.1 |
| Measurement System: | Imperial | Transverse Pitch: | 1.153 |
| Pin Length - Riveted: | 3.585 | UPC: | 662288455387 |
| Weight: | 5.05 LB | Packaged Length: | 11.50 Inches |
| Packaged Width: | 11.50 Inches | Packaged Height: | 4.00 Inches |
| HTC: | 7315.11.0060 | Country of Origin: | Taiwan, Republic of China |
