- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Combination Groove – All Browning B Sheaves permit the running of A& B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
6TB60

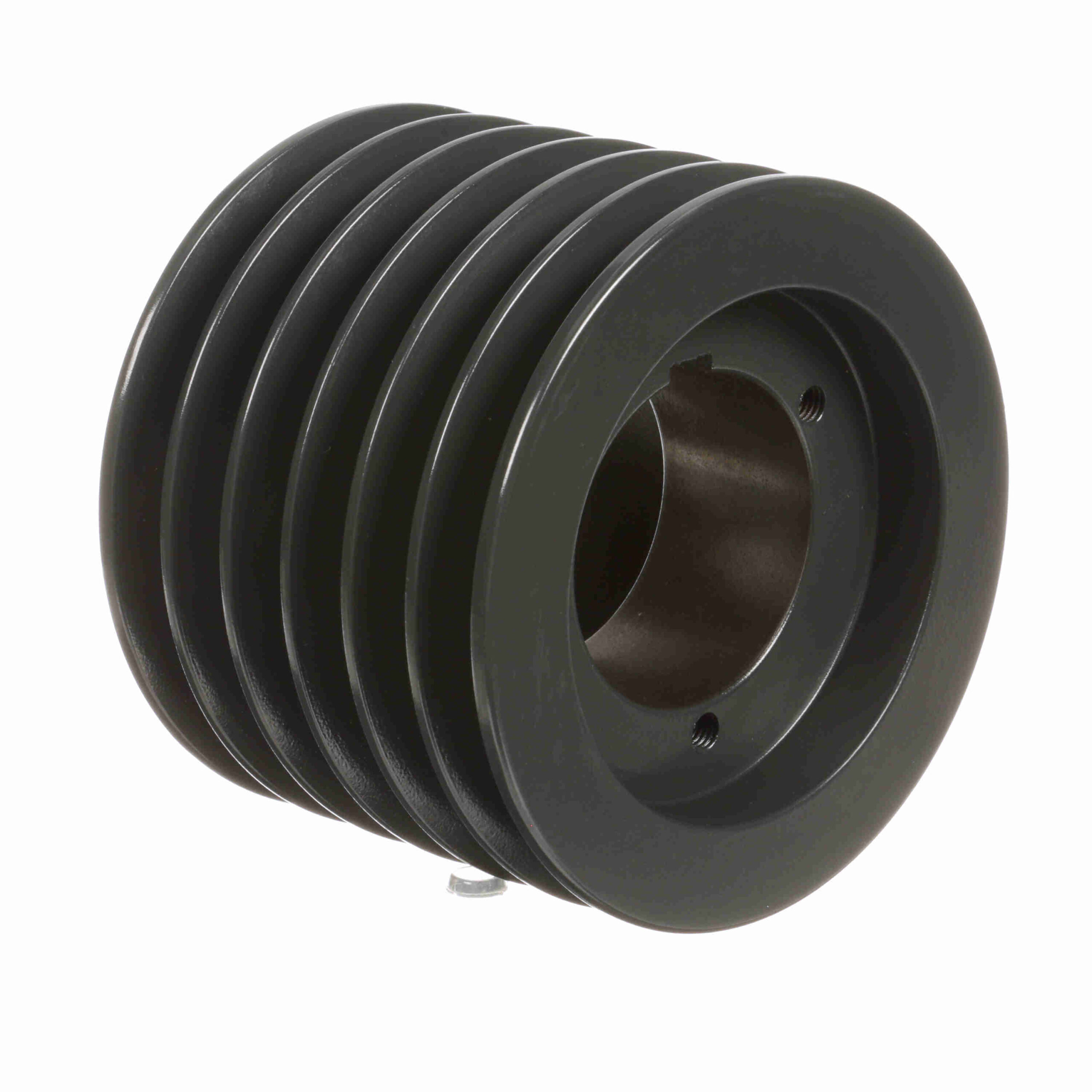

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6TB60
$433.56
Out of stock
Out of stock
| Datum Diameter (A): | 5.6 | Overall Length (in): | 5.078125 in |
|---|---|---|---|
| Material: | Cast Iron | Pitch Diameter (B): | 6.3 |
| Number of Grooves: | 6 | Model Name: | 6TB-M_Sheave_Master |
| Outside Diameter (in): | 6.35 in | Datum Diameter (B): | 6 |
| Bushing Used: | Q1 | Pulley Material: | Cast Iron |
| Pitch Diameter (A): | 5.8 | Bore (Min) (in): | 0.75 in |
| Product Type: | Multiple Sheaves | Belt Section: | A, B |
| Bore Type: | Split Taper Bushed | Pulley Construction: | Webbed |
| Bushing Bore Range: | 2.6875 - 2.6875 | Overall Width (in): | 5.03125 |
| Keyway Size: | .500 | Face Width (in): | 4.75 |
| UPC: | 662289171712 | Weight: | 15.90 LB |
| Packaged Length: | 6.63 Inches | Packaged Width: | 6.63 Inches |
| Packaged Height: | 4.75 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
