- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- Sheaves are Statically Balanced – All sheaves are statically balanced to assure smooth, vibration free performance.
- Close Grain Cast iron – Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible.
1TC88

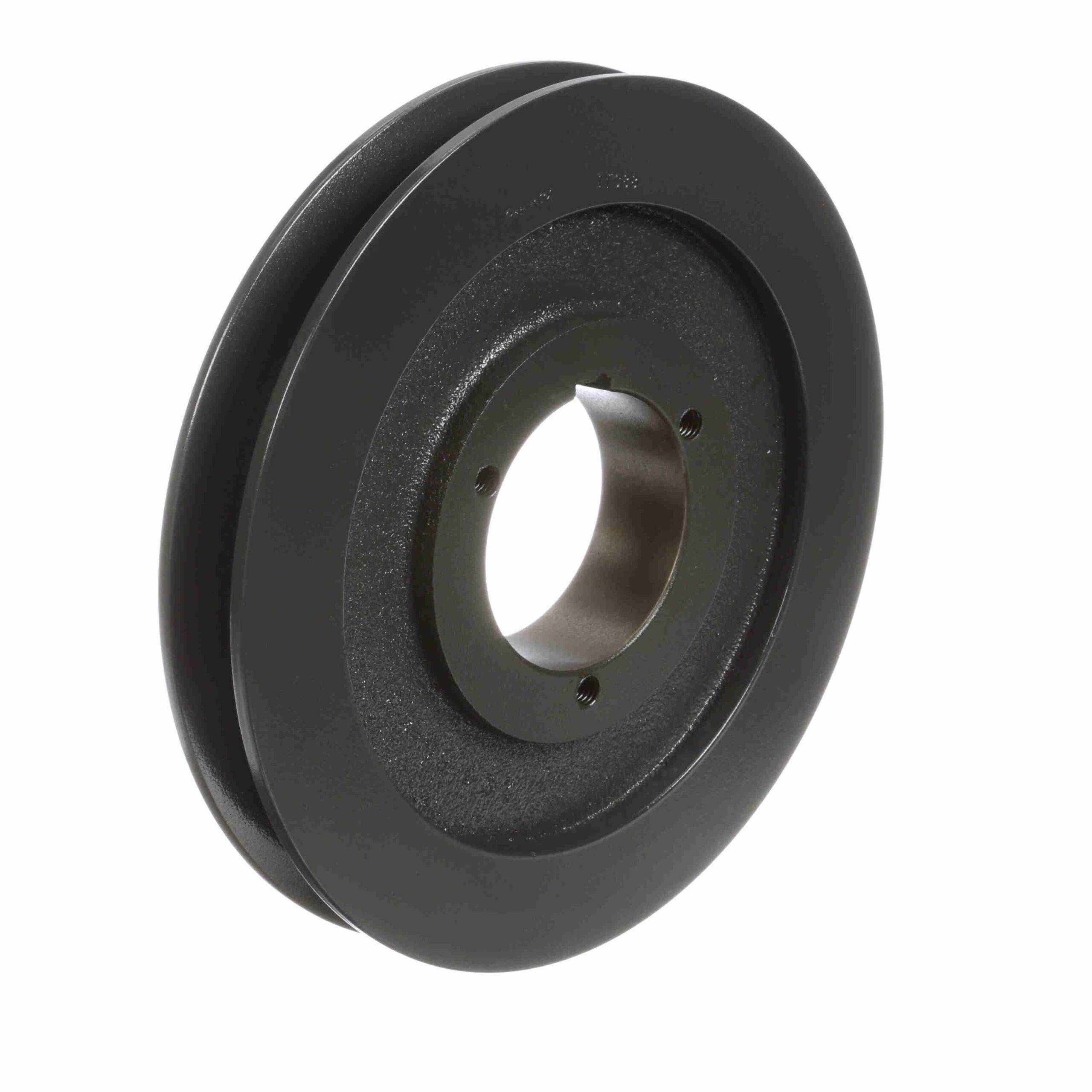

Browning 1 Groove Cast Iron Bushed Bore Multiple Sheave – 1TC88
$1,018.16
Out of stock
Out of stock
| Number of Grooves: | 1 | Belt Type: | Classic or 358 |
|---|---|---|---|
| Number of Hubs: | 1 | Datum Diameter (C): | 8.8 |
| Material: | Cast Iron | Bushing Used: | Q1 |
| Pulley Material: | Cast Iron | Pitch Diameter (C): | 9.2 |
| Outside Diameter (in): | 9.2 in | Number of Flanges: | 2 |
| Overall Length (in): | 2.734375 in | Bore (Min) (in): | 0.75 in |
| Product Type: | Multiple Sheaves | Belt Section: | C |
| Bore Type: | Split Taper Bushed | Keyway Size: | .500 |
| Bushing Bore Range: | 2.6875 - 2.6875 | Face Width (in): | 1.25 |
| UPC: | 662289060597 | Weight: | 12.70 LB |
| Packaged Length: | 10.10 Inches | Packaged Width: | 10.00 Inches |
| Packaged Height: | 2.00 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
