- Combination Groove – All Browning B5V Sheaves permit the running of A, 4L, B, 5L& 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
- Broad horsepower coverage – The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing – The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
- New Casting design – The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
6B5V64

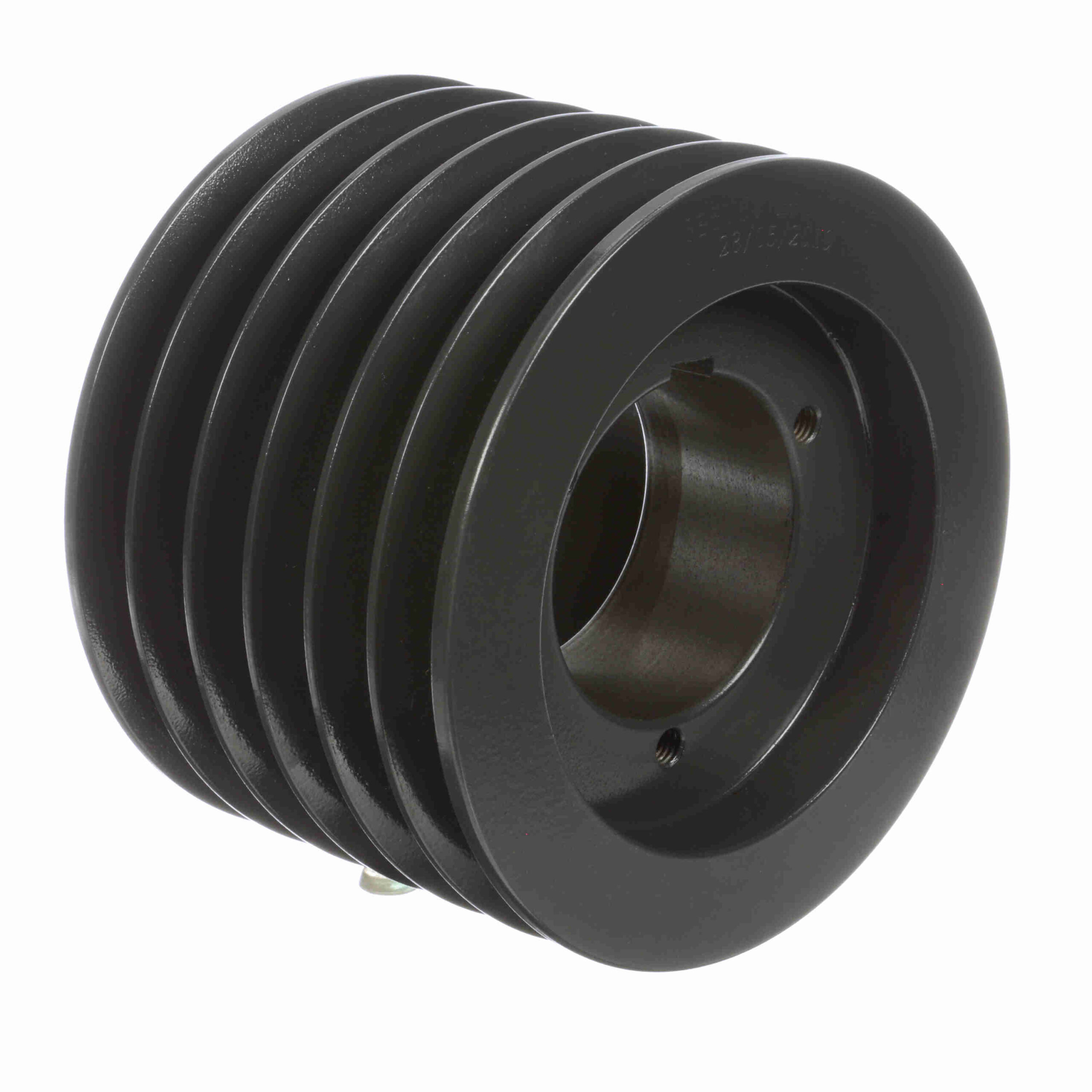

Browning 6 Groove Cast Iron Bushed Bore Multiple Sheave – 6B5V64
$453.96
Out of stock
Out of stock
| Material: | Cast Iron | Datum Diameter (B): | 6.4 |
|---|---|---|---|
| Pitch Diameter (5V): | 6.5 | Model Name: | 6B5V-SheaveMaster |
| Pitch Diameter (B): | 6.7 | Number of Grooves: | 6 |
| Overall Length (in): | 4.921875 in | Outside Diameter (in): | 6.68 in |
| Pulley Material: | Cast Iron | Bushing Used: | Q1 |
| Datum Diameter (A): | 6 | Pitch Diameter (A): | 6.2 |
| Bore (Min) (in): | 0.75 in | Product Type: | Multiple Sheaves |
| Belt Section: | A, B, 5V | Bore Type: | Split Taper Bushed |
| Keyway Size: | .500 | Bushing Bore Range: | 2.6875 - 2.6875 |
| UPC: | 662460344768 | Weight: | 18.32 LB |
| Packaged Length: | 7.19 Inches | Packaged Width: | 7.19 Inches |
| Packaged Height: | 4.75 Inches | HTC: | 8483.50.9040 |
| Country of Origin: | Mexico |
